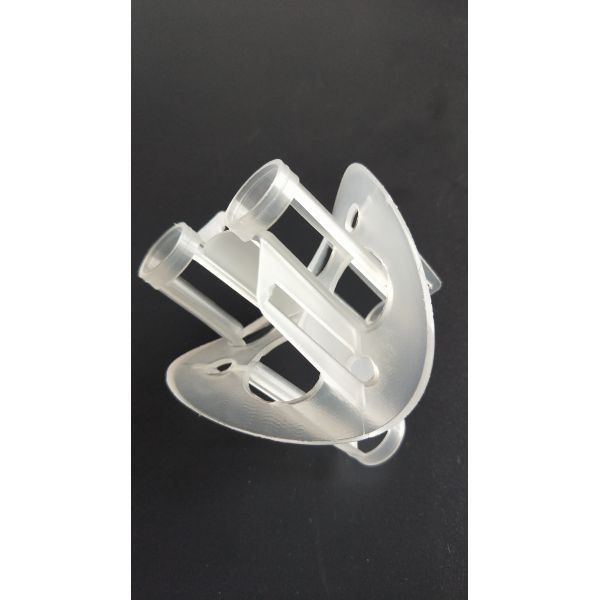

Plastic Heilex Ring For Scrubbing Tower Filler Media 38mm, 50mm
Plastic Heilex Ring For Scrubbing Tower Filler Media 38mm, 50mm
Plastic Heilex Ring For Scrubbing Tower Filler Media 38mm, 50mm
Plastic Heilex Ring For Scrubbing Tower Filler Media 38mm, 50mm
Specifications
Brand Name :
NAIKE CHEMICAL
Model Number :
HR004
Certification :
ISO9001:2015
Place of Origin :
CO
MOQ :
1m3
Price :
usd100-usd400
Payment Terms :
L/C, T/T, Western Union, Paypal, Credit Card
Supply Ability :
1500m3 per month
Delivery Time :
5-8 working days, depends on quantity
Packaging Details :
woven bag, jumbo bag
Name :
Heilex ring
Material :
PP, PVC, CPVC, PE, PVDF, RPP, PTFE
Size :
25mm, 38mm, 50mm, 76mm, 100mm
Classification :
tower packing, random packing, column packing, air scrubber packing
Application :
scrubber
Package :
woven bag, jumbo bag
Description

Plastic Heilex Ring For Scrubbing Tower Filler Media 38mm, 50mm

Plastic random packing is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF). It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60to 150. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc..

Physical & chemical properties of plastic random packing

Performance / Material PE PP RPP PVC CPVC PVDF
Density (g/cm3) 0.94-0.96 0.89-0.91 0.93-0.94 1.32-1.44 1.50-1.54 1.75-1.78

Operation Temp.

(Degree C)

 90 >100 >120 >60 >90 >150
Chemical corrosion resistance Good Good Good Good Good Good
Compression Strength(Mpa) >6.0 >6.5 >7.0 >6.0 >8.0

>10.0

25mm 50mm 95mm Plastic Random Packing Plastic Heilex Ring is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF).


The feature:
25mm, 38mm, 50mm, 76mm, 100mm Plastic Random Packing Plastic Heilex Ring has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on.

The application:
The application temperature in media ranges from 60ºCto 150ºC. For these reasons 25mm 50mm 95mm Plastic Random Packing Plastic Heilex Ring is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.
Technical data
Name
Type
Size
Surface Area
Void Rate
No.element
Bulk Density
Dry packing factor
Φ
D×H×δ
α
ε%
n
γp
α/ε3
mm
mm
m2/m3
m3/m3
N/ m3
kg/m3
m-1
heilex ring
Φ50
50×50×1.5
107
94
50
8200
128
Φ76
76×76×1.8
75
95
45
3420
87
Φ100
100×100×2.0
55
96
48
1850
62
