PP Plastic Teller Rosette Ring Column Packing 2K 3K For Air Scrubbing Tower
PP Plastic Teller Rosette Ring Column Packing 2K 3K For Air Scrubbing Tower
PP Plastic Teller Rosette Ring Column Packing 2K 3K For Air Scrubbing Tower
PP Plastic Teller Rosette Ring Column Packing 2K 3K For Air Scrubbing Tower
PP Plastic Teller Rosette Ring Column Packing 2K 3K For Air Scrubbing Tower
PP Plastic Teller Rosette Ring Column Packing 2K 3K For Air Scrubbing Tower
Specifications
Model Number :
NK-PTR
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 cubic metre
Price :
depends on quantity
Payment Terms :
L/C, D/P, T/T, Western Union, paypal
Supply Ability :
300m3 per month
Delivery Time :
10 days for one 20GP container
Packaging Details :
woven bag
Product name :
Tellerette ring, Teller rosette ring
Material :
PVC, PP, CPVC
Diameter :
79mm, 105mm
Application :
adsorption, scrubber
Classfication :
Tower packing, random packing, column packing
Description

PP Plastic Teller Rosette Ring Column Packing 2K, 3K For Air Scrubbing Tower

Product description

Plastic Rosette Ring is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF). It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60to 150. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.

Physical & chemical properties of plastic random packing

Performance / Material PE PP RPP PVC CPVC PVDF
Density (g/cm3) 0.94-0.96 0.89-0.91

0.93-0.94

 1.32-1.44 1.50-1.54 1.75-1.78
Operation Temp. 90 >100 >120 >60 >90 >150
Chemical corrosion resistance Good Good Good Good Good Good
Compression Strength(Mpa) >6.0 >6.5 >7.0 >6.0 >8.0 >10.0

Plastic Tower Packing Tellerette Ring Technical data

Name Normal
mm		 Diameter*Height*
Thickness mm		 Surface area
m2/m3		 Void space
%		 Bulk density
kg/m3		 No.elements
per/m3		 Packing factor
m-1
Tellerette
ring		 ø25 25*9*1.5*2 269 82 128 175000 488
ø47 47*19*3*3 185 88 111 32500 271
ø51 51*19*3*3 180 89 103 25000 255
ø59 59*19*3*3 150 92 102 17500 213
ø73 73*28*3*4 127 89 102 8000 180
ø95 95*37*3*6 94 90 88 3600 129
ø145 145*48*3*6 65 95 47 1100 76

Note: The above data are reference to material PP.

Package info

package volume volume/bag
20GP container woven bag 25-28m3 0.1-0.3m3
40GP container woven bag 52-55m3 0.1-0.3m3
40HQ container woven bag 60-65m3 0.1-0.3m3

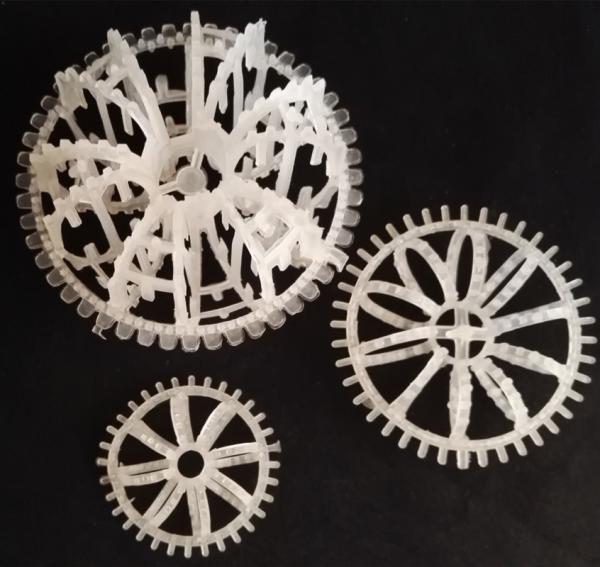

Product photo

PP Plastic Teller Rosette Ring Column Packing 2K 3K For Air Scrubbing Tower

Plastic Material: 100% virgin PP granules

PP Plastic Teller Rosette Ring Column Packing 2K 3K For Air Scrubbing Tower

Production and shipment

PP Plastic Teller Rosette Ring Column Packing 2K 3K For Air Scrubbing Tower

Other plastic random packing products

PP Plastic Teller Rosette Ring Column Packing 2K 3K For Air Scrubbing Tower
