PVDF VSP Ring Mella Ring Plastic Random Packing 25mm, 50mm for Scrubber
PVDF VSP Ring Mella Ring Plastic Random Packing 25mm, 50mm for Scrubber
PVDF VSP Ring Mella Ring Plastic Random Packing 25mm, 50mm for Scrubber
PVDF VSP Ring Mella Ring Plastic Random Packing 25mm, 50mm for Scrubber
Specifications
Brand Name :
NAIKE CHEMICAL
Model Number :
NK-VSP
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 cubic metre
Price :
depends on quantity
Payment Terms :
L/C, D/P, T/T, Western Union, paypal
Supply Ability :
300m3 per month
Delivery Time :
10 days for one 20GP container
Packaging Details :
woven bag, jumbo bag
Product name :
VSP RING
Material :
PVDF
Diameter :
25mm, 50mm
Application :
enviromental protection
Classfication :
Tower packing, random packing, column packing
Description

PVDF VSP Ring Mella Ring Plastic Random Packing 25mm, 50mm for Scrubber

Product description
Plastic vsp ring High void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer
Widely used in petroleum and chemical industries, alkali chloride industries, gas industries and environmental protection industries with max. Temperature of 150 degree centigrate.

Main technical index:

ModelPlastic VSP
MaterialPP,RPP,PE,PVC,CPVC,PVDF,etc.
SizeSpecific AreaVoid ratioBulk densitySpecification of PP plastic VSP
(mm)m2/m3(%)kg/m3
251859360
501009545
90789730


Note: The above data are reference to material PP.

Plastic random packing is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF). It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60to 150. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc..

Physical & chemical properties of plastic random packing

Performance / MaterialPEPPRPPPVCCPVCPVDF
Density (g/cm3)0.94-0.960.89-0.91

0.93-0.94

1.32-1.441.50-1.541.75-1.78
Operation Temp.90>100>120>60>90>150
Chemical corrosion resistanceGoodGoodGoodGoodGoodGood
Compression Strength(Mpa)>6.0>6.5>7.0>6.0>8.0>10.0


Package info

packagevolumevolume/bag
20GP containerwoven bag25-28m30.1-0.3m3
40GP containerwoven bag52-55m30.1-0.3m3
40HQ containerwoven bag60-65m30.1-0.3m3

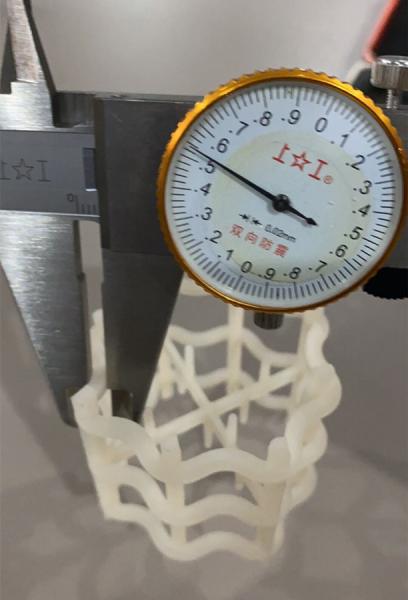

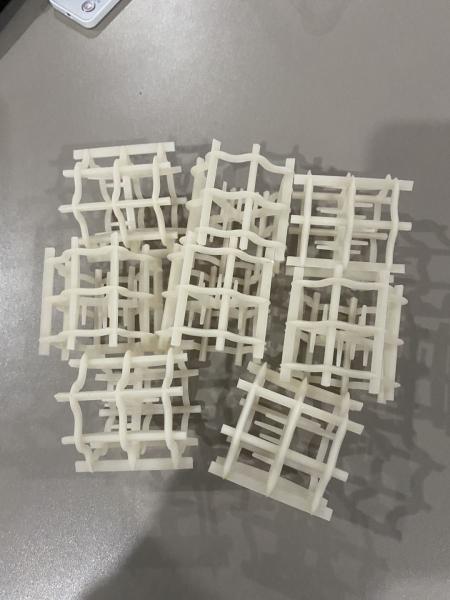

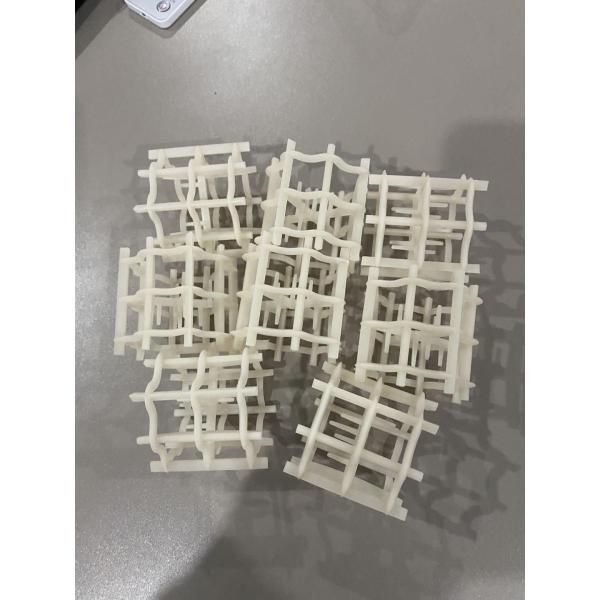

Product photo

PVDF VSP Ring Mella Ring Plastic Random Packing 25mm, 50mm for Scrubber

Plastic Material: 100% virgin PVDF granules

PVDF VSP Ring Mella Ring Plastic Random Packing 25mm, 50mm for Scrubber

Production and shipment

PVDF VSP Ring Mella Ring Plastic Random Packing 25mm, 50mm for Scrubber
PVDF VSP Ring Mella Ring Plastic Random Packing 25mm, 50mm for Scrubber


Other plastic random packing products
Pall ring, raschig ring, tri-pack, saddle ring, super intalox saddle ring, polyhedral hollow ball,
hollow ball, cascade ring, tellerette ring, vsp ring, snowflake ring, lanpac packing

PVDF VSP Ring Mella Ring Plastic Random Packing 25mm, 50mm for Scrubber
