Specifications
Brand Name :
NKCHEM
Model Number :
TP-0002
Certification :
ISO9001:2008
Place of Origin :
CHINA JIANGXI
MOQ :
1 cubic meter
Price :
$180.00 - $300.00/ cubic meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A
Supply Ability :
500 Cubic Meter/Cubic Meters per Month
Delivery Time :
5-8 work days
Packaging Details :
woven bag, jumbo bag
Product name :
TP packing ring
Classification :
tower packing, random packing, column packing, air scrubber packing
Processing Service :
Moulding, Cutting
Color :
White
Size :
25mm, 38mm, 50mm
Material :
PP
Application :
fertilizer industry, urea plant
Description
Product description

PP Plastic Net Tower Packing Ring 25mm, 38mm, 50mm for Urea Unit in Fertilizer Industry

Plastic Net Tower Packing Ring

Plastic Net Ring Packing is a mesh ring filler, its outer diameter equal to height, because plastic net tower packing ring wall has many square hole, so it called Net Ring. Depending on this specical structure, when liquid flows down wall surface, it will devide into many liquid interface. Each interface is like a filte ring membrane. When gas touching this interface, the particle will be separated by this inferface. The filler has the advantages of simple structure, light weight and not easy to be damaged, low pressure drop, high flux, high efficiency, low cost, is still widely used in bsorption tower, sulfuric acid tower, cooling tower and water treatment etc. It is widely used in packed bed columns for fertilizer industry.

Packing of PP Net Tower Packing Ring
1 cubic meter Jumbo bag
Other packing is available upon your request.

Technical Parameter of PP Net Tower Packing Ring
D×H×δ mm Specific area m2/m3 Void Rate % Bulk Number g/m3 Package Density (kg/m3) F factor m-1
25*25*1.0 210 90 48500 88 86
38*38*1.2 150 91 15200 70 90
50*50*1.5 105 92 6500 65 92

Plastic random packing is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF). It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60to 150. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc..

Physical & Chemical Properties of PP Net Tower Packing Rings
Performance/Material PE PP RPP PVC CPVC PVDF
Density(g/cm3) 0.94-0.96 0.89-0.91 0.93-0.94 1.32-1.44 1.50-1.54 1.75-1.78
Operation Temp(℃) 90 >100 >120 >60 >90 >150
Chemical Corrosion resistance Good Good Good Good Good Good
Compression Strength(MPa) >6.0 >6.5 >7.0 >6.0 >8.0 >10.0

Product photos

PP Plastic Net Tower Packing Ring 25mm, 38mm, 50mm For Urea Unit In Fertilizer Industry

PP Plastic Net Tower Packing Ring 25mm, 38mm, 50mm For Urea Unit In Fertilizer Industry

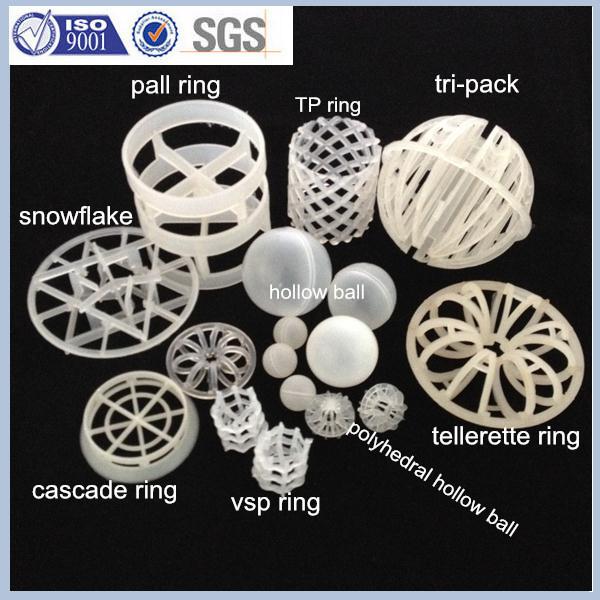

Other plalstic random packing

PP Plastic Net Tower Packing Ring 25mm, 38mm, 50mm For Urea Unit In Fertilizer Industry
