Copper Cannon Ring 6*6mm For Laboratory Distillation Column
Copper Cannon Ring 6*6mm For Laboratory Distillation Column
Copper Cannon Ring 6*6mm For Laboratory Distillation Column
Copper Cannon Ring 6*6mm For Laboratory Distillation Column
Specifications
Brand Name :
NAIKE
Model Number :
NK-CR001
Certification :
ISO
Place of Origin :
China
MOQ :
1 litre
Price :
USD60-140/L
Payment Terms :
Western Union, L/C, T/T, D/A, D/P, PAYPAL
Supply Ability :
200L per month
Delivery Time :
in 7 days for 50L
Packaging Details :
carton box
Product name :
dixon chips, cannon ring, propak ring
Material :
copper
Shape :
half cylinder ring
Classfiation :
laboratory random packing, distillation packing
Application :
distillation, high purity seperation
MOQ :
1 Litre
Package :
carton box
Available size :
2*2, 3*3, 4*4, 5*5, 6*6
Description

Copper Cannon Ring 6*6mm For Laboratory Distillation Column

Dixon Ring also known as θ packing ring is a highly efficient packing of small particles, made of metal mesh, packing the same diameter and height. θ ring is used mainly for laboratory and low-volume, high-purity product separation process. θ ring packings pressure drop is related to gas velocity, liquid spray volume, and material weight, surface tension, viscosity and characteristics of fill factors and pre-fill liquid. ring hysteresis loop filler material than similar entities fill large, θ ring surface wetting situation completely than ordinary ceramic ring, film-forming rate, and thus more efficient. θ ring packing with the theoretical plate number of the increase in gas velocity increased, with the filler surface wettability and reduce the rate of decline.

Application
Dixon Ring is used mainly for laboratory and low-volume, high-purity product separation process.

Tech Data

Spec mm
Net Item
Tower Dia mm
Theoretical plate pcs/m
Bulk density Kg/m3
Surface area m2/m3
φ2×2
100
φ20-35
50-60
670
3500
φ3×3
100
φ20-50
40-50
520
2275
φ4×4
100
φ20-70
30-40
380
1525
φ5×5
100
φ20-100
20-30
295
1180
φ6×6
80
φ20-150
17-20
280
1127
φ7×7
80
φ20-200
14-17
265
1095
φ8×8
80
φ20-250
11-14
235
987
φ9×9
80
φ20-300
8-11
200
976

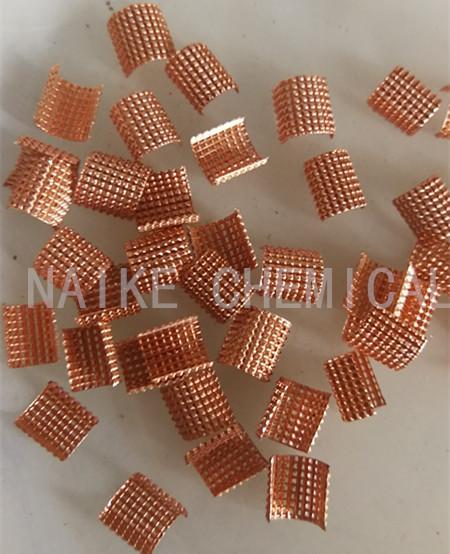

Product photos

Copper Cannon Ring 6*6mm For Laboratory Distillation Column

Package reference

Copper Cannon Ring 6*6mm For Laboratory Distillation Column
