Stainless Steel 304 Fenske Spiral Laboratory Packing 1.75*1.75mm For Distillation Process
Stainless Steel 304 Fenske Spiral Laboratory Packing 1.75*1.75mm For Distillation Process
Stainless Steel 304 Fenske Spiral Laboratory Packing 1.75*1.75mm For Distillation Process
Stainless Steel 304 Fenske Spiral Laboratory Packing 1.75*1.75mm For Distillation Process
Specifications
Brand Name :
NAIKE
Model Number :
NK-FS-0003
Certification :
ISO
Place of Origin :
China
MOQ :
1 litre
Price :
$100.00+ liters
Payment Terms :
Western Union, L/C, T/T, D/A, D/P, PAYPAL
Supply Ability :
200L per month
Delivery Time :
in 7 days for 50L
Packaging Details :
carton box
Shape :
spiral
Application :
distillation
Material :
stainless steel SS304
Product name :
fenske spiral
Size :
1.75*1.75mm
classfication :
distillation packing, laboratory packing
other name :
laboratory packing
usuage :
distillation
advantages :
high efficienty
Description
Stainless Steel 304 Fenske Spiral Laboratory Packing 1.75*1.75mm For Distillation Process
Product Description

The triangular spiral filler, Fenske spiral is made of winding wire, triangular spiral filler, Fenske spiral is similar to its shape and springs, also known as the triangle spring filler. It is the difference between the spring winding circle is not round but each triangle, circle and circle the triangle between the staggered certain angle, so triangular spiral filler,

Fenske spiral packing direction from the end to see such a polygonal packing more efficient, but compared to the ring packing, the resistance slightly larger, mainly for the laboratory.

Technical data

Specification Tower diameter mm Theoretical plate pcs/m Material Operating pressure
1.75*1.75 50 60~70 Benzene, Cl4C Normal pressure
3*3 18 50~80 Benzene, Cl4C Normal pressure
4*4 50 25~40 Benzene, Cl4C Normal pressure
5*5 50 20~30 Benzene, Cl4C Normal pressure
6*6 82 14~20 Ammonia 3kg/cm2 absolute pressure
7*7 82 11~13 Ammonia 3kg/cm2 absolute pressure
96 8~10 N-Heptance, Toluene Normal pressure
8*8 82 10~11 Ammonia 3kg/cm2 absolute

Packaging & Shipping

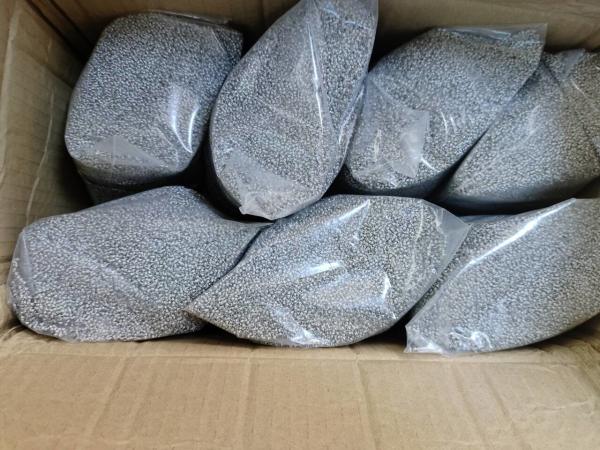

The package of fenske spiral is carton box.

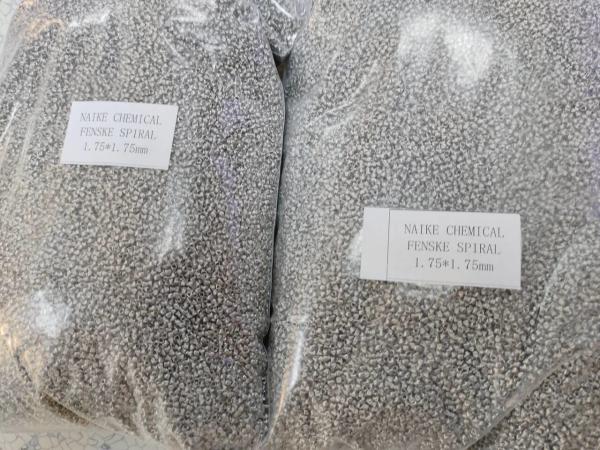

Product Picture
Stainless Steel 304 Fenske Spiral Laboratory Packing 1.75*1.75mm For Distillation Process

Stainless Steel 304 Fenske Spiral Laboratory Packing 1.75*1.75mm For Distillation Process

Our Services

We promise to reply within 24 hours.

Samples are available for checking quality.

Stock is available with regular material and sizes.

Fast and safe delivery are secured.

Contact Information
Tel: 86-799-3673808
Mobile: 86-18079909829
Email: cathy at nkchem.com

website: www.laiko.net

wechat: 18079909829

Similar products
Other laboratory packings include dixon ring, perforated dixon ring, cannon ring(propak packing).
Also laboratory structured packing is also available with various material(stainless steel, carbon steel, copper etc).
Quantity unit is litres. It could be customized as per size, material and quantity.
