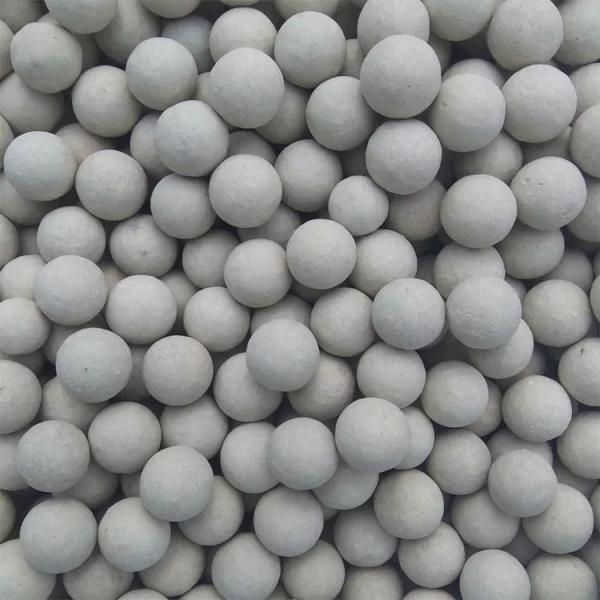

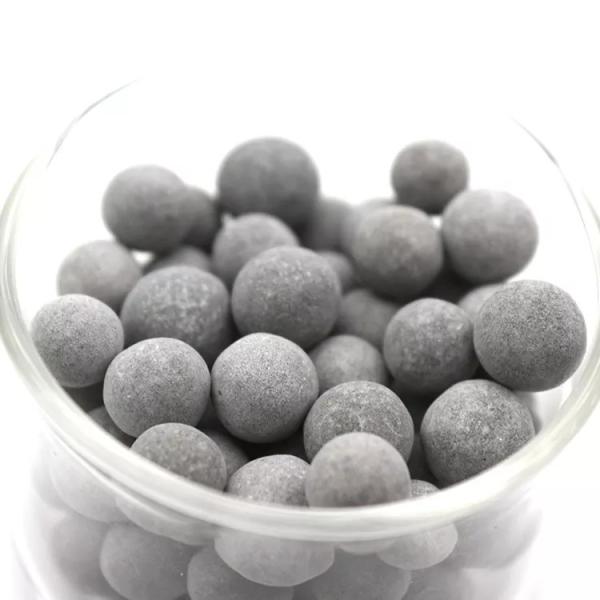

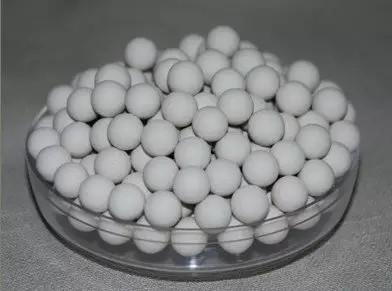

Catalyst Bed Support Inert Alumina Ceramic Ball 3-50mm 99% Inert Alumina Ball
Catalyst Bed Support Inert Alumina Ceramic Ball 3-50mm 99% Inert Alumina Ball
Catalyst Bed Support Inert Alumina Ceramic Ball 3-50mm 99% Inert Alumina Ball
Catalyst Bed Support Inert Alumina Ceramic Ball 3-50mm 99% Inert Alumina Ball
Catalyst Bed Support Inert Alumina Ceramic Ball 3-50mm 99% Inert Alumina Ball
Catalyst Bed Support Inert Alumina Ceramic Ball 3-50mm 99% Inert Alumina Ball
Catalyst Bed Support Inert Alumina Ceramic Ball 3-50mm 99% Inert Alumina Ball
Catalyst Bed Support Inert Alumina Ceramic Ball 3-50mm 99% Inert Alumina Ball
Catalyst Bed Support Inert Alumina Ceramic Ball 3-50mm 99% Inert Alumina Ball
Catalyst Bed Support Inert Alumina Ceramic Ball 3-50mm 99% Inert Alumina Ball
Specifications
Brand Name :
NKCHEM
Model Number :
NK-ICB
Certification :
ISO9001:2000 & MSDS
Place of Origin :
CHINA JIANGXI
MOQ :
1 kilogram/kilograms
Price :
$315.00 - $625.00/ kilogram
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A
Supply Ability :
1 - 1000+kilograms+PER DAY
Delivery Time :
5-8work days
Packaging Details :
Conventional packing
Application :
Industrial Ceramic
Type :
Ceramic Balls
Material :
Alumina Ceramic
Description

Catalyst Bed Support Inert Ceramic Alumina Packing Ball,High quality alumina ceramic ball, 3-50mm 99% Inert Alumina Ball

Packaging & delivery
Packaging Details
(1)iron drums with wooden pallet (2)plastic ton bags with wooden pallet (3)small bags,,40bags with wooden pallet. (4)or packing as your request.
Port
Shenzhen/Shanghai

Inert Ceramic Alumina Packing Ball Detail

Introduction:

Inert Ceramic Ball has stable chemical features and a low rate of water absorption, resistant to high temperature and high pressure. It is also resistant to the corrosion of acid, alkali and some other organic solvents. They can stand the rapid changes in temperature during the manufacturing process.

Application:
Inert Alumina Ceramic Ball is widely used in petrochemical industry, chemical industry, fertilizer industry, natural gas industry and environment protection, etc. Which function mainly as the covering and supporting materials for catalyst in reactors and packing for towers. Its principal role is to accelerate the distribution of gas or liquid, and support or protect the active catalyst, which has the relevantly lower mechanical strength.

Chemical Characteristics for Inert Alumina Ceramic Ball
In accordance with the different content of AL2O3, it can be divided into as follows:

Physical Prosperities:

Product name

Item

 Low Alumina Ball Middle Alumina Ball High Alumina Ball
Al2O3 17-35% 60-75% 80-95%
Al2O3 +SiO2(%) ≥92% ≥92% ≥95%
Fe2O3(%) 1% 1% 0.5%
CaO (%) 1.5% 2.1% 2.9%
MgO (%) 2.5% 1.3% 0.5%
K2O+Na2O(%) 4.0% 4.0% 4.0%
TiO2 (%) 0.5% 0.1% 0.1%
Water absorption 3%
Acid resistance 98%
Alkali resistance 80% 85% 90%
Operation Temperature (°C) 980 1180 1580
Spalling Resistance(°C) 300 500 700
Gravity(g/cm3) 2.3-2.4 2.6 3.5
Mohs hardness Max 6.5 7.0 7.0

Compressive
Strength
KN/Pellet

 Ø6 0.4 0.5 0.6
Ø13 1.2 1.6 1.7
Ø20 1.8 2.0 2.3
Ø25 2.5 2.9 3.2
Ø38 4.0 4.5 5.0
Ø50 8.0 8.5 11


Specification:

Dia(Φ) 3 6 8 10 13 16 20 25 30 38 50 65 75
Allowable deviation ±1.0 ±1.5 ±2.0 ±3.0
