Specifications
Brand Name :
NAIKE
Place of Origin :
Jiangxi, China
MOQ :
1.0 Cubic Meter/Cubic Meters (Min. Order)
Price :
CN¥1,260.69 - CN¥4,342.36
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A
Supply Ability :
300 Cubic Meter/Cubic Meters per Month
Delivery Time :
5-8 work day
Packaging Details :
woven bag/jumbo bag
Model Number :
NK-PPR
Processing Service :
Moulding, Cutting
Type :
Plastic Rings
Size :
16mm 25mm 38mm 50mm 76mm
Color :
White,Yellow,Grey
classfication :
random packing, tower packing
other name :
pall packing ring
Description
Description

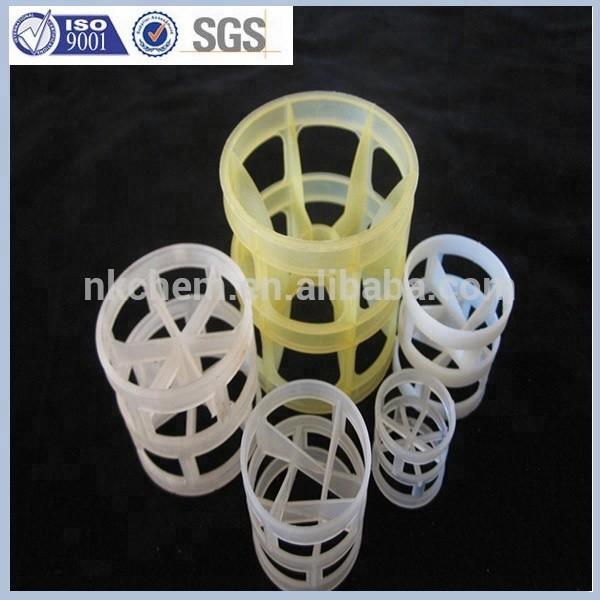

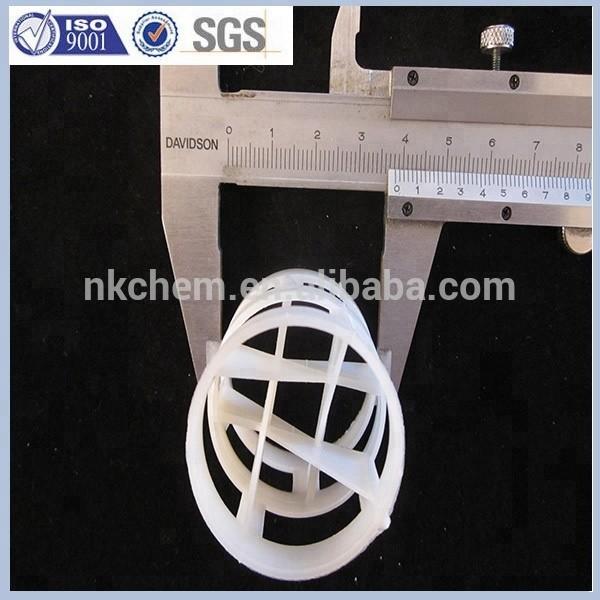

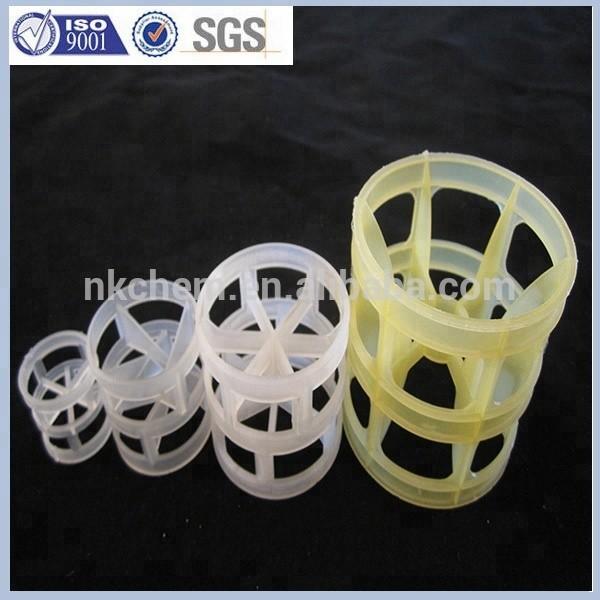

Plastic Pall Ring is versatile. This product was improved on the basis of Plastic Rasching Ring, and compared with it, both of them have similar cylindrical dimensions but the Plastic Pall Ring has two rows of punched out holes, with fingers or webs turned into the centre of the cylinder, which significantly increases the performance of the packing, in terms of throughput, efficiency and pressure drop.
polypropylene plastic pall ring for ethylbenzene separation Polypropylene PE RPP PVC CPVC PTFE PVDF Plastic Pall Ring
polypropylene plastic pall ring for ethylbenzene separation Polypropylene PE RPP PVC CPVC PTFE PVDF Plastic Pall Ring
Product Properties
Performance / Material
PE
PP
RPP
PVC
CPVC
PVDF
Density (g/cm3)
0.94-0.96
0.89-0.91
0.93-0.94
1.32-1.44
1.50-1.54
1.75-1.78
Operation Temp.(ºC)
90
>100
>120
>60
>90
>150
Chemical corrosion resistance
Good
Good
Good
Good
Good
Good
Compression Strength(Mpa)
>6.0
>6.5
>7.0
>6.0
>8.0
>10.0
Size:
Name
Normal
Diameter*Height*
Surface area
Void space
Bulk density
No.elements
Packing factor
mm
Thickness mm
m2/m3
%
kg/m3
per/m3
m-1
Pall ring
ø25
25*25*1.2
213
91
85
48300
285
ø38
38*38*1.4
151
91
82
15800
200
ø50
50*50*1.5
100
92
60
6300
130
ø76
76*76*2.6
72
92
62
1930
92

Advantages:

It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on.

Application:

Absorption, scrubbing, and stripping services. Versatile alternative to metal Pall rings. A variety of different sizes of products provide the ability to optimize capacity and efficiency based on different application requirements, and the application temperature in media ranges from 60°Cto 150°C.
