Distillation Tower Packing Metal Raschig Ring 25mm 38mm 50mm
Distillation Tower Packing Metal Raschig Ring 25mm 38mm 50mm
Distillation Tower Packing Metal Raschig Ring 25mm 38mm 50mm
Distillation Tower Packing Metal Raschig Ring 25mm 38mm 50mm
Distillation Tower Packing Metal Raschig Ring 25mm 38mm 50mm
Distillation Tower Packing Metal Raschig Ring 25mm 38mm 50mm
Specifications
Model Number :
NK-MRR
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 cubic metre
Price :
depends on quantity
Payment Terms :
L/C, D/P, T/T, Western Union, paypal
Supply Ability :
300m3 per month
Delivery Time :
15 days for one 20GP container
Packaging Details :
jumbo bag and pallet, one 20ft can load 20m3
Product name :
Metal raschig ring
Material :
stainless steel
Diameter :
25mm, 38mm, 50mm
Application :
distillation column
Classfication :
Tower packing, random packing, column packing
Description

Distillation Tower Packing Metal Raschig Ring 25mm, 38mm, 50mm

Product description

Metal rasching ring is made of materials like carbon steel, stainless steel or Aluminum alloy, etc.

The product has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on.

It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.

Technical data

Size
mm		 Bulk density
kg/m3		 Number
per m3		 Surface area
m2/m3		 Free volume
%
15×15×0.3 379 230000 350 95
25×25×0.4 318 51000 216 96
25×25×0.5 400 51000 220 95
35×35×0.8 430 19000 150 93
50×50×0.5 203 6500 106 97.4
50×50×0.7 285 6500 108 96.4
50×50×0.8 325 7000 109 95
76×76×0.8 212 1830 69 97.3
80×80×1.2 300 1600 65 96
90×90×1.0 236 1160 62 97

The above data is reference to material stainless steel (AISI304) in the material thickness shown.

Material available:

carbon steel, stainless steel including 304, 304L, 410,316, 316L.

Package info

package bags loaded volumn
20GP container jumbo bag 20 20m3
40GP container jumbo bag 44 44m3
40HQ container jumbo bag 44 50m3

One jumbo bag can load 1-1.5m3 metal pall ring.

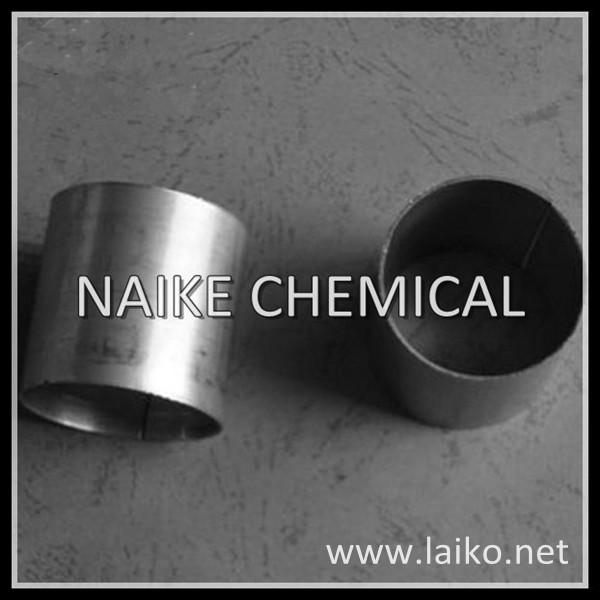

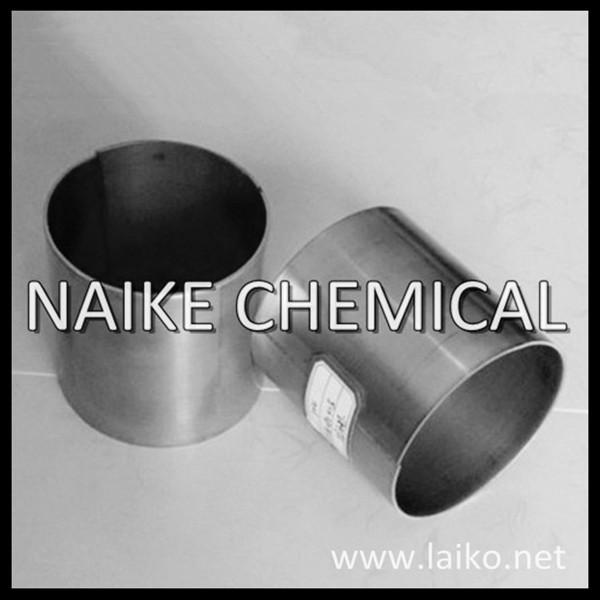

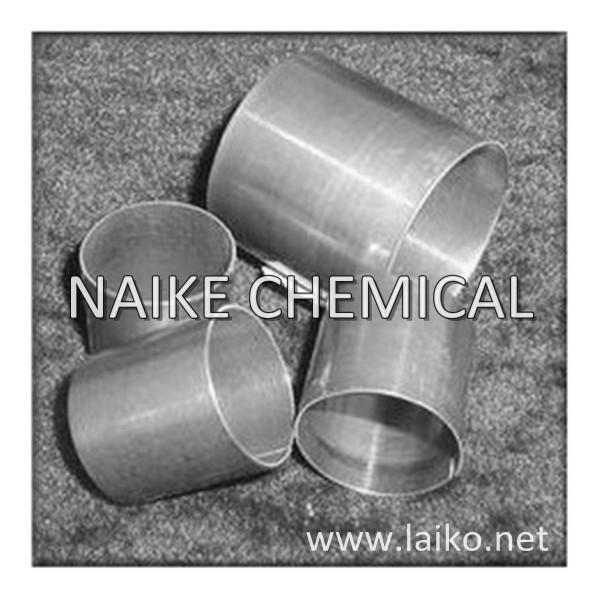

Product photo

Distillation Tower Packing Metal Raschig Ring 25mm 38mm 50mm

Production and shipment

Distillation Tower Packing Metal Raschig Ring 25mm 38mm 50mm

Other metal random packing products

Pall ring, Raschig ring, Super raschig ring, Cascade ring, Intalox saddle ring, IMTP packing, Conjugate ring, VSP ring, metal improved inner arc ring

Distillation Tower Packing Metal Raschig Ring 25mm 38mm 50mm
