Metal Random Packing Super Raschig Ring For Mass Transfer 20mm 25mm 70mm
Metal Random Packing Super Raschig Ring For Mass Transfer 20mm 25mm 70mm
Metal Random Packing Super Raschig Ring For Mass Transfer 20mm 25mm 70mm
Metal Random Packing Super Raschig Ring For Mass Transfer 20mm 25mm 70mm
Specifications
Model Number :
NK-MSRR
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 cubic metre
Price :
depends on quantity
Payment Terms :
L/C, D/P, T/T, Western Union, paypal
Supply Ability :
300m3 per month
Delivery Time :
15 days for one 20GP container
Packaging Details :
jumbo bag and pallet, one 20ft can load 20m3
Product name :
Metal super raschig ring
Material :
stainless steel, 304, 304L, 316, 316L
Diameter :
25mm
Application :
distillation column
Classfication :
Tower packing, random packing, column packing
Description

Metal Random Packing Super Raschig Ring For Mass Transfer 20mm, 25mm, 70mm

Product description

The design of the Super Raschig Ring offers an optimal solution to industry's demands for a modern heavy-duty packing. Unlike previous packing shapes, the Super Raschig Ring avoids the droplet formation which is such a frequent interference accompanying large gas loads.

The Super Raschig Ring has a more than 30% greater load capacity, an almost 70% lower pressure drop and a mass transfer efficiency exceeding that of conventional metal pickings by over 10%.

Advantages:
high capacity
lower pressure drop
better transfer

Application:

Absorption column and desortion column.

Rectification column.

Technical data

Size Material

Nominal

Diameter (mm)

 Surface Area
(m2/m3)		 Void
(%)
Super raschig ring Nr. 0.5 Metal Φ20 250 97
Super raschig ring Nr. 0.7 Metal Φ25 180 98
Super raschig ring Nr. 3.0 Metal Φ70 80 98

The above data is reference to material stainless steel (AISI304) in the material thickness shown.

Material available:

carbon steel, stainless steel including 304, 304L, 410,316, 316L.

Package info

package bags loaded volumn
20GP container jumbo bag 20 20m3
40GP container jumbo bag 44 44m3
40HQ container jumbo bag 44 50m3

One jumbo bag can load 1-1.5m3 metal pall ring.

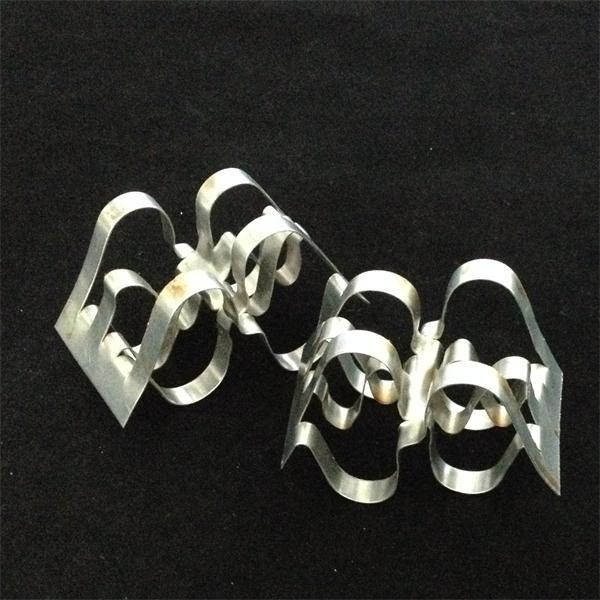

Product photo

Metal Random Packing Super Raschig Ring For Mass Transfer 20mm 25mm 70mm

Production and shipment

Metal Random Packing Super Raschig Ring For Mass Transfer 20mm 25mm 70mm

Other metal random packing products

Pall ring, Raschig ring, Super raschig ring, Cascade ring, Intalox saddle ring, IMTP packing, Conjugate ring, VSP ring, metal improved inner arc ring

Metal Random Packing Super Raschig Ring For Mass Transfer 20mm 25mm 70mm
