4Ch SD / HDD 3G Mobile DVR Security Camera System Support Real Time Recording
4Ch SD / HDD 3G Mobile DVR Security Camera System Support Real Time Recording
Specifications
Brand Name :
RECODA
Model Number :
M705
Certification :
CE / FC / ROHS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
5000pcs/month
Delivery Time :
3-5days after receiving your payment
Packaging Details :
one pcs per box, eight pcs per carton
Video Compression :
H.264
Recording Resolution :
CIF, HD1, D1，max 2chD1+2chCIF
Basic function :
4 camera recording, alarm system, G-sensor, RS232 sensor, intercom
Feature :
Shaking-proof, drop-proof, data encrypt protect
Storage media :
1TB harddisk&64GB SD card
App :
Clients, Playback, Server Setup&Tool,Wifi download
Alarm :
6ch alarm input, 1ch alarm output
Dimension :
160(W) x62(H) x200(D) mm
Weight :
Net weight: 2200g, gross weight: 3500g
Price :
negotiation
Description

4Ch SD / HDD 3G Mobile DVR Security Camera System Support Real Time Recording​ (M705)

Features:

1. 4 Channel Realtime Video/ Audio Recording;
2. 3G/4G Remote View on PC or Smartphone;
3. GPS Tracking;
4. Wi-Fi Auto-Downloading (Optional);
5. UPS Technology (3~5s Power-off delay after power cut);
6. Max. 4 Hours Power-off Delay after ACC-off;
7. 6 I/O Alarm Input & 1 Alarm Output;
8. Supports 1TB Hard Disk & 128GB SD Card at the Same Time (maximum);
9. Motion Detect/ G-Sensor Alarm Record/ High Speed/ Low Speed Alarm;
10. Supports talkback function (2 Ways Audio);
11. Geo-Fence Function;
12. 8V~36V Wide Range Power Input;
13. Remote Engine Stop, Remote Oil Control, etc;
Specifications:

Operation system Linux
GUI Setup system parameters with remote controller
Audio Compression G.726
Video resolution CIF, HD1, D1 adaptive, support up to 2 channels D1 + 2 channels CIF
Video Compression H.264. Hisilicon high performance processor is applied
Recording File format ASF/ FAT32
Recording mode Startup recording by default, support timing, alarm & event trigger, manual recording
Alarm 6-channel alarm input, 1-channel alarm output
Storage media Support 1TB hard disk and 64GB SD card
Communication interface RS232, RJ45 10M/100M self-adaption Ethernet interface
Wireless transmission (optional) Built-in 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system optional; Compatible with GPRS, EDGE; Built-in Wi-Fi, GPS, G-sensor
Power-off protection Patent UPS power-off protection technology, ensure the integrality of recording data when accidental power failure occurs
Dimension 160(W) x62(H) x200(D) mm
Weight Net weight: 2200g, gross weight: 3500g

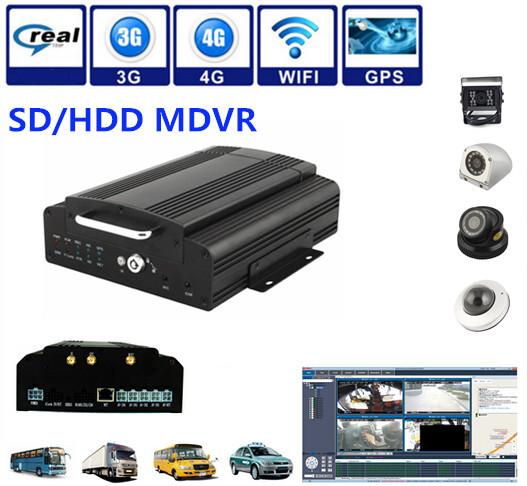

Product's Picture:

4Ch SD / HDD 3G Mobile DVR Security Camera System Support Real Time Recording

4Ch SD / HDD 3G Mobile DVR Security Camera System Support Real Time Recording

Applications:

4Ch SD / HDD 3G Mobile DVR Security Camera System Support Real Time Recording

4Ch SD / HDD 3G Mobile DVR Security Camera System Support Real Time Recording
