4CH 3G Digital Video Recorder , Mobile DVR With GPS Tracker For Bus / Truck
4CH 3G Digital Video Recorder , Mobile DVR With GPS Tracker For Bus / Truck
4CH 3G Digital Video Recorder , Mobile DVR With GPS Tracker For Bus / Truck
4CH 3G Digital Video Recorder , Mobile DVR With GPS Tracker For Bus / Truck
4CH 3G Digital Video Recorder , Mobile DVR With GPS Tracker For Bus / Truck
4CH 3G Digital Video Recorder , Mobile DVR With GPS Tracker For Bus / Truck
4CH 3G Digital Video Recorder , Mobile DVR With GPS Tracker For Bus / Truck
4CH 3G Digital Video Recorder , Mobile DVR With GPS Tracker For Bus / Truck
Specifications
Brand Name :
RECODA
Model Number :
M705
Certification :
CE / FC / ROHS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
5000pcs/month
Delivery Time :
3-5days after receiving your payment
Packaging Details :
one pcs per box, eight pcs per carton
Video Compression :
H.264
Recording Resolution :
CIF, HD1, D1
Support :
3G, GPS, G-sensor for option
Basic function :
4 camera recording, alarm system, G-sensor, RS232 sensor, intercom
Feature :
Shaking-proof, drop-proof, data encrypt protect
Storage media :
1TB harddisk&64GB SD card
App :
Clients, Playback, Server Setup&Tool,Wifi download
Price :
negotiation
Description

4CH 3G Digital Video Recorder , Mobile DVR With GPS Tracker For Bus / Truck

Main Features:

1) H.264 compression format

2) 4CH, Support 4 cameras

3) 6 alarm input, 1 alarm output

5) 2.5“ SATA 1TB Hard disk and 64GB SD Card

6) Lockable, metal HDD handle, protect HDD efficiently

7) Remote oil&power cut-off

8) 2 way intercom

9) Power supply: DC 8V-36V

9) Patent UPS continuously working to protect data upon sudden power-off

10) Customized GPS data format sending(optional)

11) GPS tracking, 3G remote control, Built-in WIFI for option

Specifications:

Operation system Linux
Security management Support user password, supervisor password management; support encryption transmission
Video Compression H.264. Hisilicon high performance processor is applied
Video resolution CIF, HD1, D1 adaptive, support up to 2 channels D1 + 2 channels CIF
Audio Compression G.726
Storage media Support one 2.5 inch hard disk and one SD card with 32G maximum capacity
Recording File format ASF/ FAT32
Recording mode Startup recording by default, support timing, alarm & event trigger, manual recording
Alarm 6-channel alarm input, 1-channel alarm output
Communication interface RS232, RJ45 10M/100M self-adaption Ethernet interface
Wireless transmission (optional) Built-in 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system optional; Compatible with GPRS, EDGE; Built-in Wi-Fi, GPS, G-sensor
Power-off protection Patent UPS power-off protection technology, ensure the integrality of recording data when accidental power failure occurs
Dimension 160(W) x62(H) x200(D) mm
Weight Net weight: 2200g, gross weight: 3500g

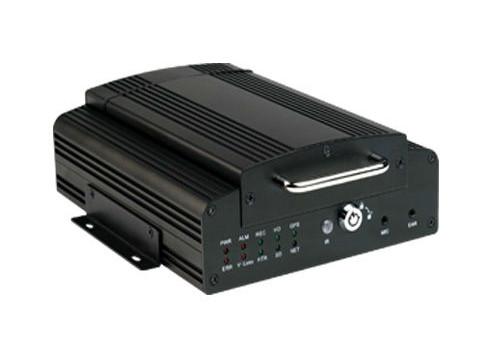

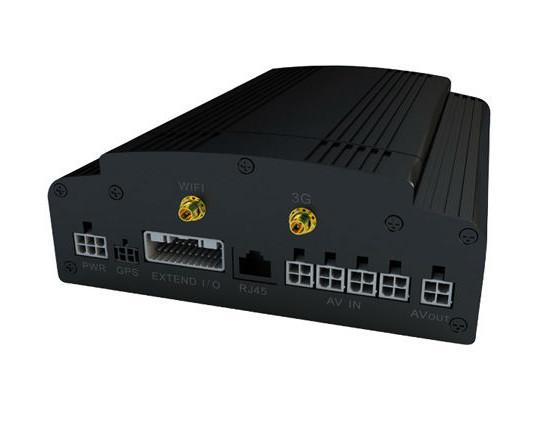

Product's Picture:

1. [REC]Recording indicator: LED ON - recording

2. [MIC]MIC input

3. [LOCK]Hard drive lock, the device can be started only after being locked and be automatically in the standby status after being unlocked

4. [IR]IR receiver for receiving signals from the remote controller

5. [REC]Recording indicator: LED ON - recording

6. Hard disk

7. [AV OUT]Audio/video output interface

8. [AV IN]Audio/video input interface

9. [3G]3G antenna interface

10. [RJ45]Network interface

11. [EXTEND I/O]Extension interface

12. [GPS]GPS module interface

13. [PWR]Power supply interface

14. [WI-FI]Wireless LAN antenna interface

4CH 3G Digital Video Recorder , Mobile DVR With GPS Tracker For Bus / Truck

Software:

4CH 3G Digital Video Recorder , Mobile DVR With GPS Tracker For Bus / Truck

Diagram:

4CH 3G Digital Video Recorder , Mobile DVR With GPS Tracker For Bus / Truck
