4CH Full D1 3G Real Time Mobile Dvr With Gps Support IOS / Andriod Devices
4CH Full D1 3G Real Time Mobile Dvr With Gps Support IOS / Andriod Devices
4CH Full D1 3G Real Time Mobile Dvr With Gps Support IOS / Andriod Devices
4CH Full D1 3G Real Time Mobile Dvr With Gps Support IOS / Andriod Devices
Specifications
Brand Name :
RECODA
Model Number :
M712
Certification :
CE , FCC
Place of Origin :
Guangdong , Shenzhen
MOQ :
1 unit
Payment Terms :
T/T, Western Union, Paypal , D/A, D/P, L/C
Supply Ability :
2000 units per month
Delivery Time :
3 ~ 8 work days
Recording :
4 channels
Resolution :
D1
Video Compression :
h.264
Alarm Input / Output :
4ch / 1ch
Shock-proof :
Yes
Storage :
1 TB HDD & 128GB SD Card
Price :
negotiation
Description

4CH Full D1 3G real time , GPS WIFI Mobile DVR , support IOS and Andriod Devices

Features:

  • H.264 high compression ratio, image more clearly;
  • With 8-36 V wide voltage design, for all kinds of automobiles;
  • Especially support full 4CH D1 real-time view, record, & playback
  • 4CH audio in and 4CH video in; 4CH alarm input and 1CH alarm out
  • 4CH CIF/HD1/D1 real-time view, record, and playback function.
  • Double anti-shock protection for data.
  • Using special file management mechanism, it can encrypt the data, and effectively protect data security;
  • Using particular error scan technology of the hard disk, it can ensure the continuity of recording, and also prolong the hard disk life
  • With dual streaming technology, it can ensure the effect of local video recording, and also ensure the wireless transmission effect;
  • Support recording to SD card and hard disk at the same time;
  • Support to overlay some vehicle informations, such as the stops information, speed, brake signal, and door open or closed signal;
  • Support both NTSC, PAL TV system;
  • Camera connecting port via 4pin aviation port.
  • FREE CMS software.

Specification:

Device parameter

Performance

Processor

Hi3515

OS

Embedded Linux OS

Operating language

Simplified/En/Traditional

Operator

interface

GUI, support mouse

Safety management

User password, Admin password in two layer management system

Video standard

PAL(625 lines,50 scenes/sec);NTSC(525lines,60 scenes/sec)

Compression

H.264(Main Profile)

Live view quality

D1

Playback quality

CIF/D1

Encoding capacity

4D1 realtime

Input

4 channel composite video input

Output

2 channel composite video output

Display

Single picture,4 pictures; alarm screen automatic switch

Compression

ADPCM

Input

4 channel audio input

Output

1 channel audio output

Recording mode

Video and audio synchronously recording

Recording type

Manual,Schedule,Alarm,Circle recording

Video bitrate

64Kbps~1.5Mbps

Audio bitrate

8KB/s

Storage medium

Support 1 SD card and 1 SATA hard disk

Recording file search type

According to channel , time, video types

Playback

Playback by files; 4 channels playback

Startup mode

ACC, Schedule

Shutdown mode

ACC delayed shutdown.,Schedule shutdown,hard disk lock off shutdown

Update mode

Manual,automatic updating when power on

Update method

USB interface; SD card; wireless

Video input

4 channels aviation head interface

Video output

1 channel aviation head interface;1 channel RCA interface

Audio input

4 channels aviation head interface

Audio output

1channel aviation head interface

SD card

1 SDHC(Maximum support 128G)

USB interface

5 USB 2.0

Hard disk interface

1 SATA interface(use USB2.0 interface to convert)

Mouse

1(USB2.0)

Ignition Signal

1

Alarm input

4

RS485 port

1

RS232 port

2(one for GPS)

Network port

1 RJ45 10/100M Adaptive

IR port

1

Wireless interface

3G(through 3G daughter board expansion)

GPS

RS232 interface, according to NMEA-0183 protocol

3G

USB interface, support EVDO & WCDMA

WIFI

802.11 B/G/N

PC playback software

Playback the recording files on PC, and analyze all informations that overlayed in the file, such as IO signal, GPS info.

CMS

Through wireless network achieve the functions such as remote video preview,GPS uploading,alarm uploading, central command issuing ,parameter setup.

Power input

DC: 8V~36V

Power output

+12V@2A; +5V@2A

Work temperature

-20 --- 60°C

Power consumption

Standby: 6.6W

fully loaded: 41W

Size

201*180*60(mm)

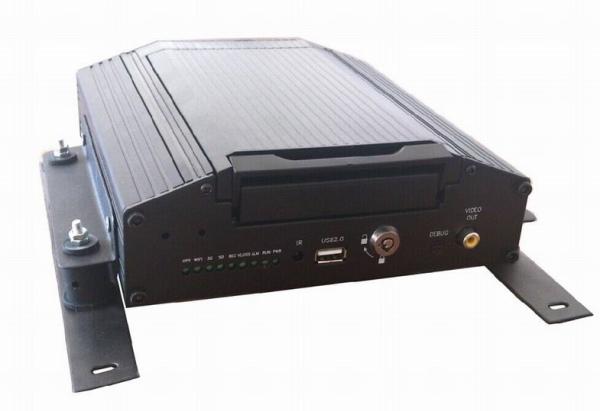

Product Image:

4CH Full D1 3G Real Time Mobile Dvr With Gps Support IOS / Andriod Devices

4CH Full D1 3G Real Time Mobile Dvr With Gps Support IOS / Andriod Devices
