Hybrid 3G GPS WIFI 1080P Car DVR , vehicle video recorder for Buses / Coach
Hybrid 3G GPS WIFI 1080P Car DVR , vehicle video recorder for Buses / Coach
Hybrid 3G GPS WIFI 1080P Car DVR , vehicle video recorder for Buses / Coach
Hybrid 3G GPS WIFI 1080P Car DVR , vehicle video recorder for Buses / Coach
Specifications
Brand Name :
Recoda
Model Number :
M620
Certification :
CE, ROHS, FCC
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
5000 pcs/ month
Delivery Time :
3-8 working days
Packaging Details :
One piece mobile dvr to one box, ten pieces mobile dvr to one carton
Power Input :
10V To 36V
HIS Solution :
H.264 Compression
Cameras :
4 CHANNEL
Capacity :
Dual SD Card
Operation system :
Linux
Type :
Car DVR
Price :
negotiation
Description

4 CH 1080P Car DVR Hybrid 3G GPS WIFI for Buses , Coach

Main Features:

1. High quality real time recording, 1080P720P/CIF/HD1/D1 Optional, quality adjustable;
2. Support 12VDC/2.5Amp output voltage,power supply for Camera/Screen etc;
3. Dual SD Card Support, total max 256 GB,protect DVR from shock & Dust damage;
4. Watchdog abnormal restart function,protect SD Card and Record;
5. Exclusive File System protect data completeness,prevent SD Card fragment;
6. Support GPS/BD 3G / 4G /WIFI /G-sensor Optional;
7. 6CH Alarm input(Door Open,Light,Turn direction,brake,reverse etc),can linkage kinds of alarm;
8. Easily Smart GUI Interface, saving time in device setting;

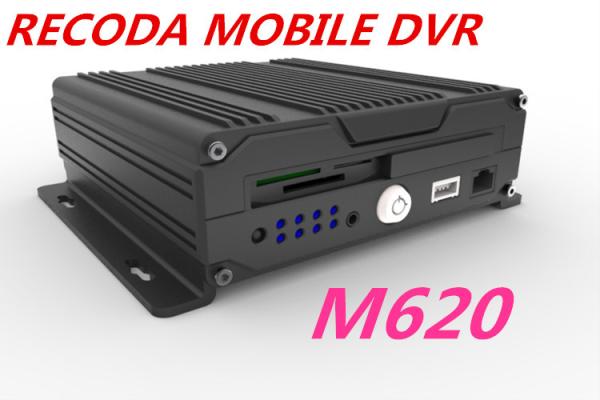

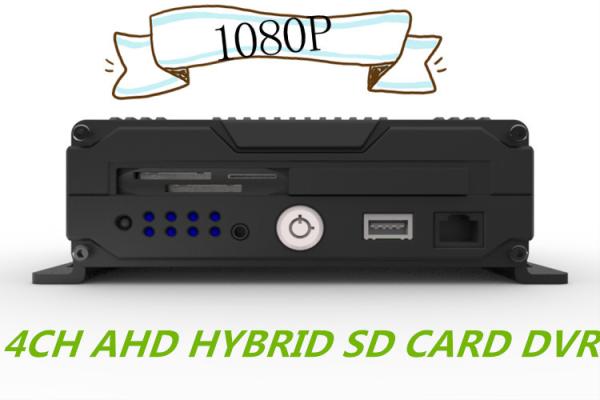

Product picture:

Hybrid 3G GPS WIFI 1080P Car DVR , vehicle video recorder for Buses / Coach

Hybrid 3G GPS WIFI 1080P Car DVR , vehicle video recorder for Buses / Coach

Product Parameter:

Item Parameter
OS Linux
Language Chinese/English/Customized
Video Compression H.264
OSD Overlays information such as date time and vehicle ID
GUI Graphical User Interface Setup system parameters with the remote control.
Video Record System Video Input

4CH AHD input,CVI,TVI or CVBS
aviation connector, 1.0Vp-p, 75Ω
Video Output

1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,
4CH Screen
Preview

Support 1 channel and 4 channels preview.,Support Manual
/Alarm Trigger full screen preview
Resolution 1080P/720P/D1/HD1/CIF, MAX:4 channels of 1080P
Video Quality 0-7 levels, 0 is the highest level.
Video Standard

PAL: 100f/s , CCIR625 line,50field;
NTSC: 120f/s, CCIR525 line,60field;
CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;
HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;
D1: 800Kbps ~ 3Mbps, 8 level video quality optional;
720P: 4Mbps-6Mbps, multi level video quality optional
1080P:4Mbps-8Mbps,multi level video quality optional
Record Mode

The default setting is auto recording after power on.
Timed recording,
alarm trigger recording and manual recording are supported.
Audio Audio Input 4CH ,Aviation Plug
Audio Output 1CH,Aviation Plug
Compression G.726 compression, 8KB/s speed
Alarm Input 6Ch Alarm Input, kinds of alarm linkage support
Alarm Output 2CH Alarm Output
Position Support Built GPS/BD Module
Interface

2CH RS232 to connect OBD, POS/Fuel Sensor/LED Advertisement Connection
1CH 485 Interface,Connect PTZ Camera
G-Sensor Support G-sensor
Storage SD Dual SD Card,each max 128GB SD Card loop recording
Upgrade Support SD Card updating
File Format H.264
File System Special FAT32 File System
Video Playback Video Search Search By Record Time/Record Type etc
Playback Max support 4CH Replay /Stop/Fast/Slow at same time

Support forward and backward play
at the speed of: x 2,x4,x8,x16.

Voltage &
Power

 Power Management Wide Voltage.Support Timed/Delay off
Voltage Input DC:+10V ~ +36V
Voltage Output +12V@2.5A,+5V@2.5A
Power Consumption Normal Working ＜5W
Working Environment Temperature -20℃ to +70℃
Humidity 20% to 80%
Security Password User/Admin 2 Level Different Password
others Size 150(W) x57(H) x168(D) mm
Net Weight 1.1kg


10 years experience on development and manufacture of mobile dvr , have mora than 20,000 systems installed all over the world, such as UAE( for school bus), UK( for truck). Mexico( for special military vehicles), etc. also until now , we have already got CE, ROHS , FCC and IEC certificates.

We welcome customized requirements on software and firmware


Hybrid 3G GPS WIFI 1080P Car DVR , vehicle video recorder for Buses / Coach
