1080 P 4 IN ONE 4 channel car dvr recorder HDD + SD CARD Support Real Time
1080 P 4 IN ONE 4 channel car dvr recorder HDD + SD CARD Support Real Time
Specifications
Brand Name :
RECODA
Model Number :
M720
Certification :
CE, FCC,ROSH
Place of Origin :
China
MOQ :
1 Unit
Price :
negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
500000 Unit / Year
Delivery Time :
1 week
Channel :
AHD input,CVI,TVI or CVBS optional
Storage :
Support Max 2.5” HDD, max 128G SD Card
Power :
10-36V wide voltage with low power consumption
IOS/Android Phone Remote monitor :
Support
G-sooner :
Support
USB port data backup and device update :
Support
Connect OBD on the vehicles :
Support
HDD heating functions :
Support
Description

1080 P 4 IN ONE 4 channel car dvr recorder HDD + SD CARD Support Real Time

Main Feature:

  • Support HDD heating functions,can work in harsh environment;
  • Support GPS/BD/G-Sensor Extension module;
  • Realize real time monitor through 3G/4G;
  • Support to connect OBD on the vehicles;
  • Support IOS/Android Phone Remote monitor;

Specification:

Language:

English/Chinese/Customized

OS:

Support Linux

Graphical User Interface:

Setup system parameters with the remote control.

Video Compression:

H.264 Compression

Video Input:

4CH AHD input,CVI,TVI or CVBS aviation connector, 1.0Vp-p, 75Ω

Video Output:

1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen view

Preview:

Support 1 channel and 4 channels preview.,Support Manual/Alarm Trigger full screen preview

Resolution:

1080P/720P/D1/HD1/CIF, MAX:4 channels of 1080P

Video Standard:

  • PAL: 100f/s , CCIR625 line,50field;
  • NTSC: 120f/s, CCIR525 line,60field;
  • CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;
  • HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;
  • D1: 800Kbps ~ 3Mbps, 8 level video quality optional;
  • 720P: 4Mbps-6Mbps, multi level video quality optional
  • 1080P:4Mbps-8Mbps,multi level video quality optional

Record Mode:

The default setting is auto recording after power on.

Timed recording, alarm trigger recording and manual recording are supported.

Audio Input:

4CH Aviation Plug Input

Audio Output:

2CH,headphone connect at front panel, BNC Connect on Back panel

Audio Compression:

G.726 compression, 8KB/s speed

Alarm Input:

6CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage

Alarm Output:

2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off

Image Quality:

0-7 levels, 0 is the highest level.

Interface:

2CH RS232 to connect OBD, POS/Fuel Sensor/LED Advertisement Connection;

1CH 485 Interface,Connect PTZ Camera

Wireless Transmission:

Support Built in 3G transmission,, WCDMA, CDMA2000,GPRS, EDGE;

Built in 4G module optional, TDD-LTE, FDD-LTE

GPS Position:

Support Built GPS/BD Module

Storage:

  • HDD : Max 2.5” 2TB HDD
  • SD Card: Max 128GB SD Card Mirror Recording Keep Data Safety
  • Update: Support USB Updating, SD Card Updating,OTA Remote Updating
  • File Format: H.264
  • File System: Special FAT32 File System
  • USB: USB Interface on Front Panel for data back up by U Disk,Hard Disk

Record Replay:

Video Search:

Search By Record Time/Record Type etc

Playback:

Max support 4CH Replay /Stop/Fast/Slow at same time;

Support forward and backward play at the speed of: x 2,x4,x8,x16.

Security:

User/Admin 2 Level Different Password

Voice Call:

Support voice call each other

TTS Voice Broadcast:

Support TTS voice broadcast function.

Serial Expand:

Support LED Advertisement Panel,Oil Sensor,POS,Bus Station Broadcaster,Car OBD,ect.external device

Power Manage men

Wide Voltage.Support Timed/Delay off

Input Voltage:

DC:+10V - +36V

Output Voltage:

+12V~1.5A,+5V~1.5A

Power:

Working <5W

Temperature:

-20℃ - +70℃

Humidity:

20% - 80%

Size:

218 (D)* 161(W)* 65(H) mm

Net Weight:

2.2 Kg

Image:

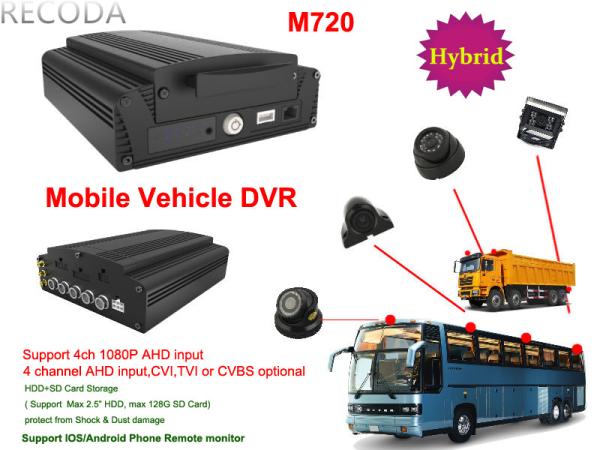

1080 P 4 IN ONE 4 channel car dvr recorder HDD + SD CARD Support Real Time

Contact with Us:

Shenzhen Recoda Technologies Limited

"Vehicle video Surveillance System professional Manufacturer

Tel: 86-755-82593248 Fax: 86-755-27844949

Add: 2F,BuildingB2,XI HONGYUAN Industrial Building,Lane1,4th xin an road,74

area Bao'an district ,Shenzhen,China

Email:Yellow@recodadvr.com, Skype:Recoda.sales05@outlook.com

www.recodadvr.com
