Specifications
Place of Origin :
Shandong
Brand Name :
Lida
Certification :
ISO / CE
MOQ :
500 sq
Payment Terms :
L/C, T/T
Feature :
Soundproof/ Rust Proof/Earthquake Resistant/Waterproof/Heat Insulated
Material :
Q195/Q235/Q345
Size :
L5800mm × W5980mm × H2580mm
Weight :
Approximately 4000kg
Flooring :
Laminate board (18mm)
Windows :
Aluminum windows
Door :
Steel door
Wall Material :
75mm sandwich panel
Item :
Prefabricated K House
Description
Modular Prefabricated Houses Eco Friendly Space Saving Urban Affordable Housing Complex
The Lida K model prefab house is constructed using light steel framing for the structure and insulated sandwich panels for walls and roofing. Available insulation materials include polystyrene, polyurethane, rock wool, and fiber glass sandwich panels to provide optimal thermal performance.
Standard K model prefabricated houses are designed with 1.8-meter modular components connected by bolts for rapid assembly. These structures can be assembled and disassembled over six times while maintaining a service life exceeding 15 years.
Technical Specifications
Type K Model Prefabricated House
House Depth 5.56m, 6.23m, 8.28m or custom sizes available
House Width N × K × 1.8m (N = 5,6,7,...; K = 1.8m)
House Height Single floor, double floor, or three floors
Design Load Roof load: 0.50 KN/m²
Wind load: 0.45 KN/m²
Floor load: 1.5 KN/m²
Snow load: 0.15 KN/m²
Service Life 10-15 years
Main Column C section steel
Roof Truss C section steel
Roof & Wall Purlin C section steel
Roof Panel EPS, fiber glass, rock wool, or PU sandwich panel
Wall Panel EPS, fiber glass, rock wool, or PU sandwich panel
Window PVC window, aluminum alloy window, or custom options
Door Sandwich panel door, wood door, PVC door with glass, aluminum alloy frame door, security door, or custom options
Floor Plywood 18mm high-quality plywood
Floor Leather 1.5mm PVC floor leather
Electric System Sockets, switches, lights, cables, and accessories
Plumbing System Pipes, basin, toilet, and connection accessories
Installation Accessories Glass glue, nails, edge cover, AC rack, general bolts, anchor bolts, and hardware

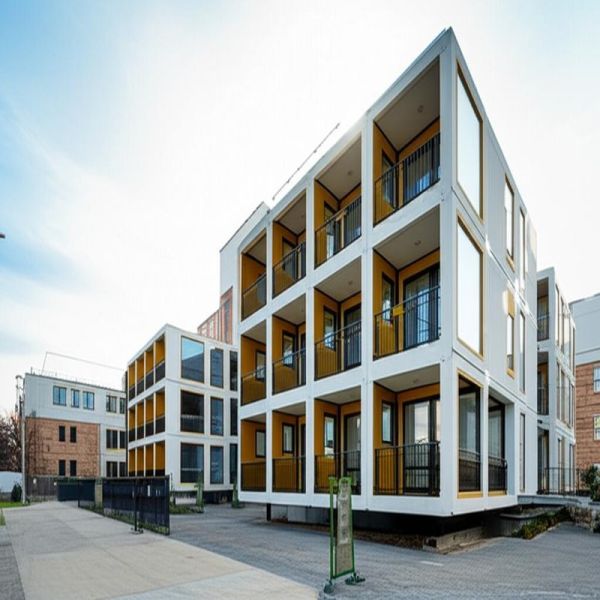

Product Images
Fireproof Prefab Modular Container Home Eps Insulation Mobile House Container Fast Build Fireproof Prefab Modular Container Home Eps Insulation Mobile House Container Fast Build
