Cold Climate Prefabricated House Enhanced Insulation System Light Steel Frame Arctic Grade Prefab Winter Residential
Cold Climate Prefabricated House Enhanced Insulation System Light Steel Frame Arctic Grade Prefab Winter Residential
Cold Climate Prefabricated House Enhanced Insulation System Light Steel Frame Arctic Grade Prefab Winter Residential
Cold Climate Prefabricated House Enhanced Insulation System Light Steel Frame Arctic Grade Prefab Winter Residential
Specifications
Brand Name :
ECONEL
Snow Load :
2.0 kN/m²
Model Number :
PH-CC48A
Window U-value :
0.65, Triple-glazed
Certification :
CE, ISO 9001:2015, Passive House Certified Components
MOQ :
1 Set
Operating Temperature :
-50°C
Delivery Time :
20-35 working days after deposit
Supply Ability :
100 Sets per Month
Payment Terms :
T/T, L/C at sight
Structure Type :
Arctic Climate Prefab House
Wall R-value :
13.0 (200mm PIR)
Roof R-value :
18.0 (300mm Glass Wool)
HRV :
85% Efficient, MERV 13
Heating :
12kW ASHP + 9kW Backup
Entrance :
Airlock Vestibule
Place of Origin :
Shandong, China
Price :
USD 12,500-22,000 / Set
Packaging Details :
Arctic-grade flat pack with insulated panel protection, 2x 40HQ per unit
Description

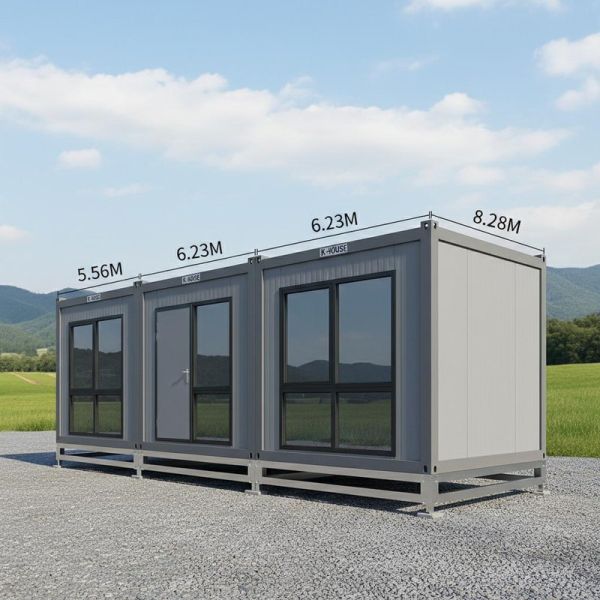

Arctic Grade Cold Climate Prefabricated House

This prefabricated container house combines industrial-grade durability with efficient modular design, delivering cost-effective building solutions for diverse project requirements worldwide.

Key Features

  • Enhanced insulation envelope: 200mm PIR foam walls (R-value 13.0) + 300mm glass wool roof (R-value 18.0) for -50°C performance
  • Triple-glazed windows with argon-krypton gas mix (U-value 0.65 W/m²K), warm-edge spacer, and 3-layer Low-E coating
  • Continuous external insulation with thermal break connections eliminating all cold bridges (certified by thermal imaging)
  • Heating system: 12kW air-source heat pump operating to -30°C with backup 9kW electric boiler and underfloor hydronic distribution
  • Heat recovery ventilation (HRV) with 85% efficiency, automatic defrost cycle, and MERV 13 filtration for indoor air quality
  • Arctic entrance vestibule (3m²) with dual-door airlock system preventing thermal loss during entry and exit in extreme cold
  • Snow load roof design: 2.0 kN/m² snow load capacity with heated gutter and downspout system preventing ice dam formation

Technical Specifications

Building Size8000x6000x2800mm (48m², 2BR)
StructureLight Steel Frame with Thermal Breaks
Wall Insulation200mm PIR Foam, R-value 13.0
Roof Insulation300mm Glass Wool, R-value 18.0
WindowsTriple-glazed, U-0.65, Argon-Krypton Fill
Heating12kW ASHP (-30°C) + 9kW Electric Backup
VentilationHRV 85% Efficiency, MERV 13 Filter
Snow Load2.0 kN/m²
EntranceArctic Vestibule Airlock (3m²)
GutterHeated System with Ice Dam Prevention

Applications

  • Arctic and subarctic research station housing
  • Northern Canada and Alaska workforce accommodation
  • Siberian and Scandinavian remote community housing
  • High-altitude mountain shelter and lodge buildings
  • Antarctic expedition support facilities

Factory prefabricated with strict quality control. CE, ISO 9001:2015, and SGS certified. Contact us for custom design and bulk order quotation.
