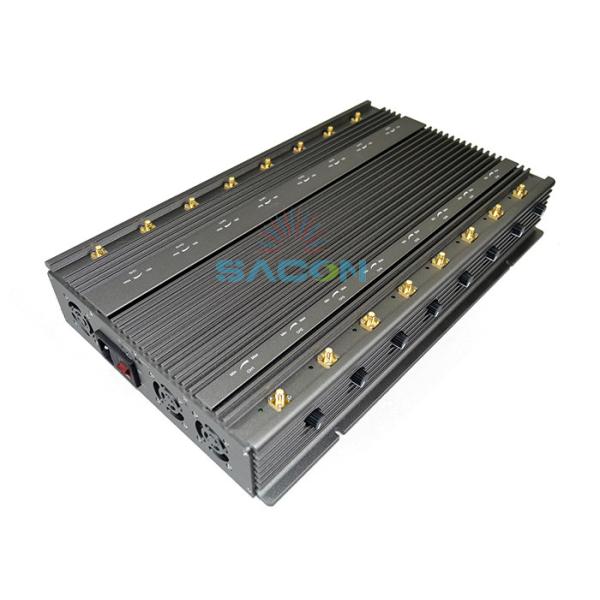

16 Antennas 5G Signal Jammer Blocker with 100W Output Power and 80m Jamming Radius
16 Antennas 5G Signal Jammer Blocker with 100W Output Power and 80m Jamming Radius
16 Antennas 5G Signal Jammer Blocker with 100W Output Power and 80m Jamming Radius
16 Antennas 5G Signal Jammer Blocker with 100W Output Power and 80m Jamming Radius
16 Antennas 5G Signal Jammer Blocker with 100W Output Power and 80m Jamming Radius
16 Antennas 5G Signal Jammer Blocker with 100W Output Power and 80m Jamming Radius
16 Antennas 5G Signal Jammer Blocker with 100W Output Power and 80m Jamming Radius
16 Antennas 5G Signal Jammer Blocker with 100W Output Power and 80m Jamming Radius
Specifications
Brand Name :
Sacontelecom
Model Number :
SA-016S
Certification :
ISO9001, CE, Rochs
Place of Origin :
China
MOQ :
5PCS
Price :
negotiate
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
10000pcs/month
Delivery Time :
3 Working Days After Received Payment
Packaging Details :
Neutral Packing Carton Box
Product Name :
Walkie Talkie Lojack Signal Jammer
Output Power :
100w
Jamming Radius :
10-70m(under Signal Level ≤-85dBm)@according To The Signal Density Mobile Network
Power Supply :
AC Adapter (50 To 60Hz/100 To 240V AC-DC24V) With Car Charger
Size :
445 X 272x 70mm Not Include Antennas
Weight :
8.0KG
Description
16 Antennas 5G Network Blocker Device 5-8w Each Band 315Mhz 433Mhz VHF UHF All GPS
Product Overview

This SA-016S 5G signal jammer is a multiband blocking device capable of jamming 16 frequency bands including GSM, CDMA, DCS, 3G, 4G, 5G, WiFi, GPS, Bluetooth, VHF, UHF, Lojack, Camera Video, 315MHz, 433MHz, 868MHz and more. Designed for global compatibility, it covers mobile phone frequencies used in Europe, Asia, Australia, Middle East, and Africa.

With each band delivering 3-10 watts of power and total output up to 100W, this jammer provides coverage up to 80 meters. The unit features five internal cooling fans for continuous 24/7 operation and includes vehicle compatibility with individual channel controls and infrared remote control functionality.

Key Features
  • Adjustable working range to avoid blocking adjacent areas
  • Multi-use, powerful jamming capabilities
  • 16 individually adjustable frequency channels
  • User-friendly operation and maintenance
  • 24/7 continuous operation capability
  • Advanced cooling system with unique case design and 5 low-noise internal fans
  • Portable with vehicular power cable for mobile jamming applications
Technical Specifications
  • Jamming Type: Sweep Jamming
  • Antenna Type: 5dBi external omni-directional
  • Power Supply: AC adapter (50 to 60Hz/100 to 240V AC-DC24V) with car charger
  • Electric Field (SAR): Compatible with ICNIRP Standards (Human safe)
  • Operating Temperature: -20 to +50℃
  • Storage Temperature: -40 to +60℃
  • Humidity: 5%-80%
  • Dimensions (L×W×H): 445 × 272 × 70mm (excluding antennas)
  • Inner Box Dimension: 445 × 428 × 80mm
  • Weight: 8kg
Type A Specifications
Channel Output Port Frequency Range Average Output Power
1GSM850MHz850-894MHz8W
2GSM900925-960MHz8W
3DCS/PCS1805-1880/1920-1990MHz8W
43G2110-2180MHz8W
54G LTE 700700-803 or 790-862MHz8W
64G LTE 17001700-1800MHz8W
74G Wimax2500-2690 or 2300-2400MHz8W
8WiFi/Bluetooth 2.4G2400-2500MHz8W
9GPS L11570-1580MHz4W
10GPS L2+L51170-1280MHz4W
11GPS L3+L41370-1390MHz4W
125G 3.6G3600-3900MHz3W
135G 600/5G 1500617-685/1427-1518MHz8W
145G 3.5G3400-3600MHz3W
15RC433430-440MHz5W
16RC315310-320MHz5W

Total Power: 100W | Shielding Radius: 10-80 meters at -75dBm (dependent on signal strength in given area)

Type B Specifications
Channel Output Port Frequency Range Average Output Power
1GSM850MHz850-894MHz8W
2GSM900925-960MHz8W
3DCS/PCS1805-1880/1920-1990MHz8W
43G2110-2180MHz8W
54G LTE 700700-803 or 790-862MHz8W
64G LTE 17001700-1800MHz8W
74G Wimax2500-2690 or 2300-2400MHz8W
8WiFi/Bluetooth 2.4G2400-2500MHz8W
9GPS L11570-1580MHz4W
10GPS L2+L51170-1280MHz4W
11GPS L3+L41370-1390MHz4W
125G 3.6G3600-3900MHz3W
135G 600/5G 1500617-685/1427-1518MHz8W
145G 3.5G3400-3600MHz3W
15Wi-Fi 5.2G5100-5500MHz1.2W
16Wi-Fi 5.8G5500-5900MHz1.2W

Total Power: 93W | Shielding Radius: 10-80 meters at -75dBm (dependent on signal strength in given area)

OEM Customized Service

We offer silkscreen OEM services and customized frequency configurations based on your specific requirements.

Applications

Suitable for meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, cars, buses, and other secure environments.

Package Contents
  • 1 × Signal Jammer
  • 1 × AC Charger
  • 1 × Car Charger
  • 16 × Antennas
