Specifications
Brand Name :
Sacontelecom
Model Number :
SA-016S
Certification :
ISO9001, CE, Rochs
Place of Origin :
China
MOQ :
5PCS
Price :
negotiate
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
10000pcs/month
Delivery Time :
3 Working Days After Received Payment
Packaging Details :
Neutral Packing Carton Box
Product Name :
5.2G 5.8G High Power Signal Jammer
Working Time :
24 hours non-stopped
Jamming Radius :
10-80m(under Signal Level ≤-85dBm)@according To The Signal Density Mobile Networ
Power Supply :
AC Adapter (50 To 60Hz/100 To 240V AC-DC24V) With Car Charger
Size :
445 X 272x 70mm Not Include Antennas
Weight :
8.0KG
Description
100W Powerful 5G Signal Jammer Blocker

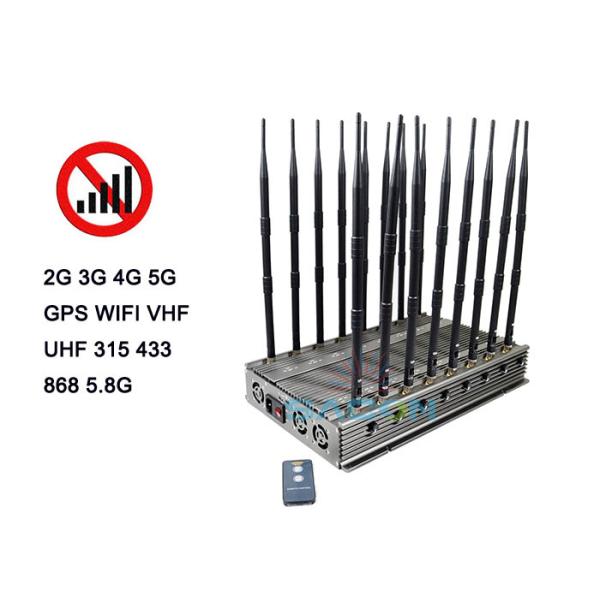

This advanced 5G signal jammer SA-016S is a multiband device capable of blocking 16 frequency bands including GSM, CDMA, DCS, 3G, 4G, 5G, WiFi, GPS, Bluetooth, VHF, UHF, Lojack, Camera Video, 5.2G, and 5.8G.
Specifically designed for global compatibility, this model covers mobile phone frequencies used in Europe, Asia, Australia, Middle East, and Africa. With each band delivering 3-10 watts of high power and total output power up to 100W, this jammer provides coverage up to 80 meters. The built-in 5 cooling fans enable 24/7 continuous operation.
This versatile device can be used in vehicles and features adjustable buttons for each channel, allowing individual channel control. The jammer includes an infrared remote control with 2-5 meter range for power on/off functionality.
Key Features
  • Adjustable working range to avoid blocking adjacent areas
  • Multi-use, powerful jammer capability
  • 16 separately adjustable frequencies
  • User-friendly operation and maintenance
  • 24/7 continuous operation capability

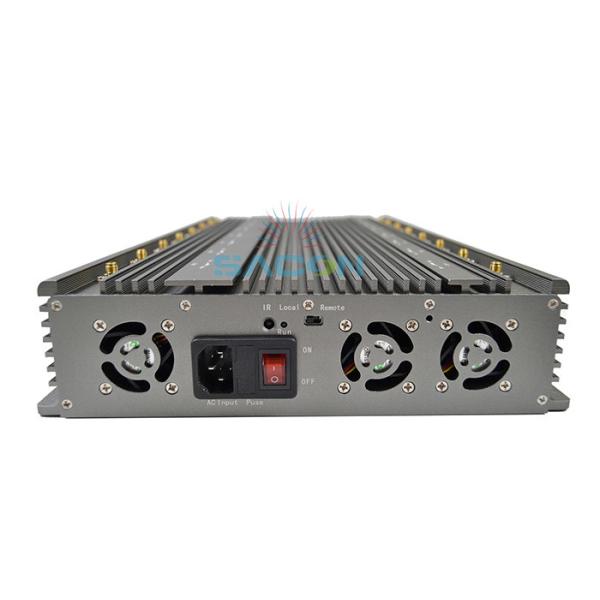

  • Advanced cooling system with unique case design and 5 internal fans
  • Portable with included vehicular power cable for mobile use
Basic Specifications
  • Jamming type: Sweep Jamming
  • Antenna Type: 5dBi external omni-directional
  • Power Supply: AC adapter (50 to 60Hz/100 to 240V AC-DC24V) with car charger
  • Electric Field (SAR): Compatible with ICNIRP Standards (Human safe)
  • Operating Temp: -20 to +50℃
  • Storage Temp: -40 to +60℃
  • Humidity: 5%-80%
  • Dimension (L×W×H): 445 × 272 × 70mm (excluding antennas)
  • Inner box dimension: 445 × 428 × 80mm
  • Weight: 8kg
Type A Specifications
2G/3G/4G/5G/WiFi2.4G/315Mhz/433Mhz/GPSL1/GPSL2+L5/GPSL3+L4
Channel Output Port Frequency Range Average Output Power
1GSM850MHz850-894MHz8W
2GSM900925-960MHz8W
3DCS/PCS1805-1880/1920-1990MHz8W
43G2110-2180MHz8W
54GLTE 700700-803 or 790-862MHz8W
64G LTE17001700-1800MHz8W
74G Wimax2500-2690 or 2300-2400MHz8W
8WIFI/Bluetooth 2.4G2400-2500MHz8W
9GPSL11570-1580MHz4W
10GPSL2+L51170-1280MHz4W
11GPSL3+L41370-1390MHz4W
125G3.6G3600-3900MHz3W
135G600/5G1500617-685/1427-1518MHz8W
145G3.5G3400-3600MHz3W
15RC433430-440MHz5W
16RC315310-320MHz5W
Total Power: 100W
Shielding Radius: 10-80 meters at -75dBm (dependent on signal strength in area)
Warranty: One year from delivery date
Type B Specifications
2G/3G/4G/5G/WiFi2.4G/GPSL1/GPSL2+L5/GPSL3+L4/WiFi5.2G/WiFi 5.8G
Channel Output Port Frequency Range Average Output Power
1GSM850MHz850-894MHz8W
2GSM900925-960MHz8W
3DCS/PCS1805-1880/1920-1990MHz8W
43G2110-2180MHz8W
54GLTE 700700-803 or 790-862MHz8W
64G LTE17001700-1800MHz8W
74G Wimax2500-2690 or 2300-2400MHz8W
8WIFI/Bluetooth 2.4G2400-2500MHz8W
9GPSL11570-1580MHz4W
10GPSL2+L51170-1280MHz4W
11GPSL3+L41370-1390MHz4W
125G3.6G3600-3900MHz3W
135G600/5G1500617-685/1427-1518MHz8W
145G3.5G3400-3600MHz3W
15Wi-Fi 5.2G5100-5500MHz1.2W
16Wi-Fi 5.8G5500-5900MHz1.2W
Total Power: 93W
Shielding Radius: 10-80 meters at -75dBm (dependent on signal strength in area)
Warranty: One year from delivery date
OEM Customized Service
We offer silkscreen OEM services and customized frequency settings based on your specific requirements.
Applications
Suitable for meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, cars, buses, and other venues requiring signal control.
Package Contents
  • 1 × Signal Jammer
  • 1 × AC Charger
  • 1 × Car Charger
  • 16 × Antennas
