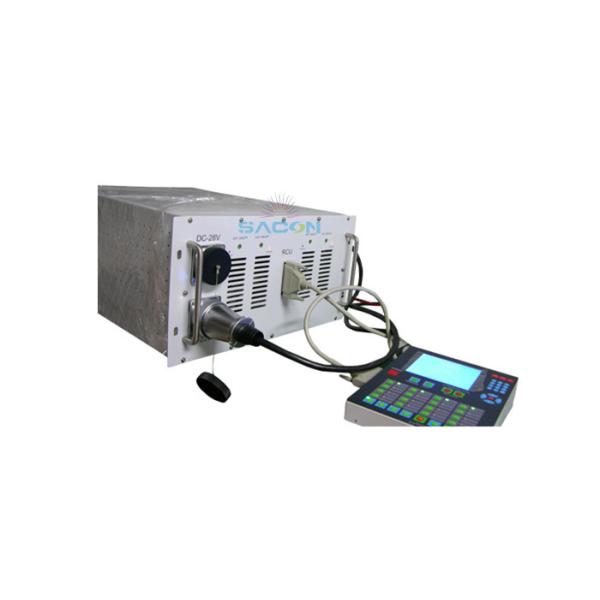

1375 Watt Vehicle Mounted RCIED Jammer with 20-6000MHz Jamming and LCD Panel Control for RIOT/EOD Operations
1375 Watt Vehicle Mounted RCIED Jammer with 20-6000MHz Jamming and LCD Panel Control for RIOT/EOD Operations
1375 Watt Vehicle Mounted RCIED Jammer with 20-6000MHz Jamming and LCD Panel Control for RIOT/EOD Operations
1375 Watt Vehicle Mounted RCIED Jammer with 20-6000MHz Jamming and LCD Panel Control for RIOT/EOD Operations
Specifications
Brand Name :
Sacon
Model Number :
SA-VIP1400
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
100pcs/month
Delivery Time :
15 work days after receive payment
Packaging Details :
Wooden Case with PE Foam
Product Name :
Vehicle Mounted RCIED Blocker
Jamming Range :
5-500meters,depend On Mobile Signal Strength
Output Power :
1375w
Operating Temp :
-20℃ To +55℃
Advantage :
20-6000MHz NO GAP Jamming
Weight :
48kg
Description
Vehicle Mounted RCIED Jammer 1375 Watt For RIOT Control / EOD Operations
Product Overview

Protecting VIP convoys from the threat of Remote Control Improvised Explosive Devices (RCIEDs) - commonly known as road-side bombs - has become a critical security challenge in many regions worldwide.

This vehicle-mounted high-power jammer is specifically designed to block remote-controlled improvised explosive devices used by terrorists. Utilizing state-of-the-art technology, it delivers maximum performance in jamming signals that could activate explosive devices.

The effective jamming radius depends on several environmental factors including transmitter frequency, output power, distance to receiver, and physical obstacles between the jammer and target.

Key Features
  • DDS Jamming technology for precise frequency setting
  • High-efficiency output power with extended jamming radius
  • Slow start-up circuit design for stable operation
  • Comprehensive protection systems: Over Heat, Over Current, High/Low Input Voltage, and VSWR protection
  • Easy operation with Wire Control Panel for system monitoring
Applications
  • Convoy protection
  • VIP security details
  • RIOT control operations
  • S.W.A.T. team deployments
  • EOD (Explosive Ordnance Disposal) operations
  • Electronic countermeasures
Power Amplifier Protection Systems
  • Over Heat protection with thermal protector
  • Over current protection
  • High input Voltage and low Voltage protection
  • VSWR protection against antenna mismatch including open and short circuit conditions
Remote Control Capabilities
  • Wire Control Panel operation
  • Output power LCD indication
  • Output power adjustment via LCD
  • Individual band output power on/off control
  • Jamming frequency setting through LCD Panel
Technical Specifications
Output Band Frequency Output Power Jamming Range
Channel 120-80MHz100 Watts5-500 meters
Channel 280-200MHz100 Watts5-500 meters
Channel 3200-500MHz100 Watts5-500 meters
Channel 4500-1000MHz100 Watts5-500 meters
Channel 51000-1500MHz100 Watts5-500 meters
Channel 61500-2000MHz100 Watts5-500 meters
Channel 72000-2500MHz100 Watts5-500 meters
Channel 82500-3000MHz100 Watts5-500 meters
Channel 9870-880MHz100 Watts5-500 meters
Channel 10935-960MHz100 Watts5-500 meters
Channel 111805-1920MHz100 Watts5-500 meters
Channel 122010-2125MHz100 Watts5-500 meters
Channel 132110-2155MHz100 Watts5-500 meters
Channel 143000-4000MHz25 Watts5-300 meters
Channel 154000-5000MHz25 Watts5-300 meters
Channel 165000-6000MHz25 Watts5-300 meters
OptionalFrequency of each band can be customized. RF output power can be customized.
WarrantyOne year from delivery date
Power Supply50 to 60Hz, 100 to 240V AC, With AC adapter
Packing ListMainframe ×1, Antenna ×1, Power supply ×1, Control panel ×1
