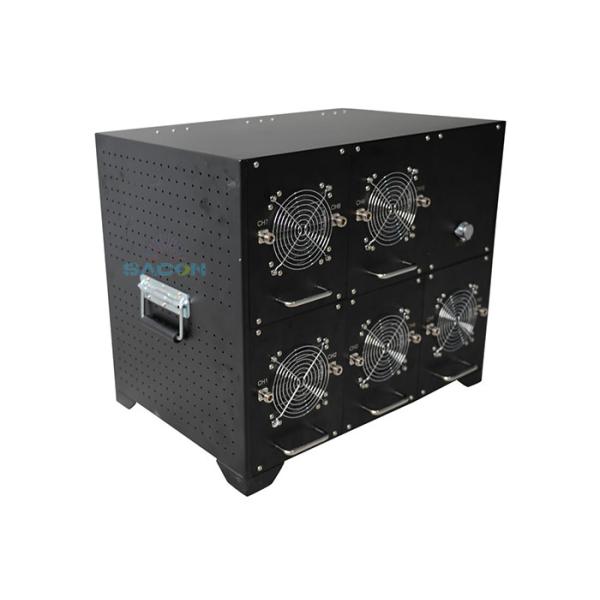

20MHz-5850MHz Full Band DDS Vehicle Jammer with 1100W Output Power and 12 Bands for IED Convoy Bomb Protection
20MHz-5850MHz Full Band DDS Vehicle Jammer with 1100W Output Power and 12 Bands for IED Convoy Bomb Protection
20MHz-5850MHz Full Band DDS Vehicle Jammer with 1100W Output Power and 12 Bands for IED Convoy Bomb Protection
20MHz-5850MHz Full Band DDS Vehicle Jammer with 1100W Output Power and 12 Bands for IED Convoy Bomb Protection
Specifications
Brand Name :
Sacon
Model Number :
SA-VIP1100
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
100pcs/month
Delivery Time :
15 work days after receive payment
Packaging Details :
Wooden Case with PE Foam
Product Name :
Full Band DDS Vehicle Jammer
Application :
,
Output Power :
1100w
Jamming Range :
50 - 800meters,depend On Signal Strength Of Mobile Network
Advantage :
20MHz-5850MHz
Weight :
65kg
Description
20MHz-5850MHz IED Convoy Bomb Jammer For Protection, 12 Bands
Product Overview
12 Bands IED Convoy Bomb Jammer For Protection and VIP Convoy
Protecting VIP convoys from the threat of Remote Control Improvised Explosive Devices (RCIEDs) - road-side bombs has become a critical challenge worldwide. The SA-VIP1100 High Power DDS Convoy Jamming System implements the most effective and reliable RF jamming technology with a fully-integrated broadband jamming system.
RF Jammers or Bomb Jammers use RF jamming signals to defeat remote controlled improvised explosive devices (RCIEDs). The RF Jammer operates by sending out jamming signals to cause radio interference, attacking the radio receiver of an improvised explosive device (IED) to help prevent detonation. RF Jamming of HF, VHF, UHF and Microwave radio frequencies enables the jammer to reduce the risk of remote controlled improvised explosive devices from triggering.
Key Advantages
  • Ultra-broadband frequency coverage: 20 - 5850MHz
  • Individual on/off switches for each separate frequency band
  • Special RF protection shielding design for passenger and VIP safety
  • Previously supplied to Olympic Events and Universiade
  • Protects VIP teams and important locations from road-side remote improvised explosive device (RCIED) attacks
Technical Characteristics
  • Each module is controlled separately
  • Pelican case design allows adding band frequencies as per customer requirements
  • Vehicle-mounted operation capability
  • Adjustable output power, jamming range, and band frequency
  • Pelican case provides waterproof, shockproof, irrefrangible, dustproof and portable protection
  • Perfect Alarm System with Self Diagnostic Function
  • "Smart active" cooling system enables unlimited continuous use
  • Fully protected circuit in case of antenna disconnection
  • Sturdy trolley-type attaché case for ease of mobility
  • Designed for easy installation and use
  • All operational switches and check LEDs externally installed
Technical Specifications
RF Characteristics
Output Power 1015 Watts
Internal Modulation FM Hopping Frequency
Signal Source VCO Synthesized
Power Supply AC110-240V, 24V DC
Modules Per Unit 12
Wired Remote Control ON/OFF with Switch
Monitoring Adjusted output power by DIP Switch
Antenna External - Omni-directional for 360º
Power Amplifier Protectors Full VSWR protector
Operating hours Unlimited
Additional jamming frequencies available: LTE800, LTE2300, LTE700, LTE2600
Channel Frequency Range Application Output Power
CH1 20~108MHz Wireless Toys, FM Radio 50dBm
CH2 135~174MHz Walkie-talkie (VHF) 50dBm
CH3 300-400MHz Remote Control 50dBm
CH4 400~470MHz Walkie-talkie (UHF), car alarm 50dBm
CH5 851~894 MHz Cellular CDMA 50dBm
CH6 902-960MHz Cellular GSM, E-GSM, Drone 50dBm
CH7 1805~1990MHz Cellular DCS, PCS, LTE1800 50dBm
CH8 1220-1230MHz GPS L2, Drone 47dBm
CH9 1570-1580MHz GPS L1, Drone 47dBm
CH10 2110~2170MHz Cellular WCDMA 50dBm
CH11 2400-2485MHz WiFi, Bluetooth, Drone 50dBm
CH12 5725-5850MHz WiFi, 5.8G, Drone 41.7dBm
Additional Specifications:
Power Supply: AC110-240V, DC28V
Output Power: 1015W
Jamming Radius: 50-800M (depending on environment signal strength)
Power Consumption: 3100W
Weight: 65Kg
External Panel Antennas Size (L×H×W): 640×540×550mm
Humidity: 5%-95%
Working Temperature: -20°C to +55°C
Applications
  • Prevent remote controlled improvised explosive devices from being activated and stop terrorist attacks
  • Protect explosives handling experts
  • Protect important places such as bus/train stations, plazas, schools, mass gatherings, stadiums, etc.
  • Risk mitigation and explosives removal in specified spots
  • Used for VVIP convoy, anti-riot control, etc.
  • Used for border control, etc.
