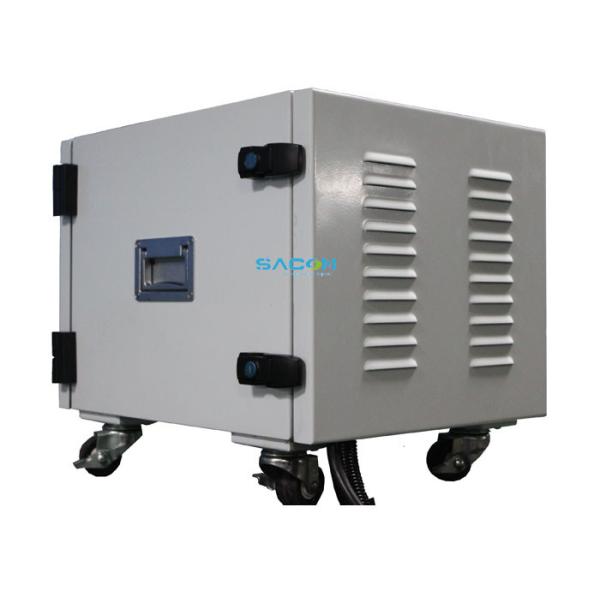

1300W DDS Programmable Jammer with 20-3000MHz Full Band Jamming and 13 Omni Antennas
1300W DDS Programmable Jammer with 20-3000MHz Full Band Jamming and 13 Omni Antennas
1300W DDS Programmable Jammer with 20-3000MHz Full Band Jamming and 13 Omni Antennas
1300W DDS Programmable Jammer with 20-3000MHz Full Band Jamming and 13 Omni Antennas
Specifications
Brand Name :
Sacon
Model Number :
SA-VIP1300S
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
100pcs/month
Delivery Time :
15 work days after receive payment
Packaging Details :
Wooden Case with PE Foam
Product Name :
DDS Programmable Jammer
Advantage :
20-3000MHz Full Band Jamming
Signal Source :
DDS Technology
Jamming Range :
50-600meters,depend On Mobile Signal Strength
Output Power :
1300w
Weight :
85kg
Description
AC110-240V 1300 W DDS Jammer With 13 Omni Antennas, 20 MHz - 3000 MHz
Product Overview
The DDS Programmable Jammer is a sophisticated RF communications jammer designed to neutralize all types of radio frequency signals. This system effectively defeats RCIED explosive triggers activated by remote control while providing flexible user-adjustable blocking capabilities across multiple frequency bands.
Key Features
  • 20-3000MHz full band jamming with DDS Technology
  • Modular construction for easy maintenance, repair and upgrade
  • Jamming capability for up to 13 different jamming modules
  • Maximum 1300 watt total RF output power
  • Customizable for AM, FM, VHF, UHF, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA, 4G 700, 4G 800, LTE 2300, LTE 2600, GPS, WIFI, WIMAX, and more
Technical Specifications
RF Characteristic Specification
Output Power 1300 Watts
Signal Source DDS
Power Supply AC110-240V, 24V or 48V DC
Modules Per Unit 13
Remote Control Wired ON/OFF Switch
Remote Monitoring Adjusted output power by wired digital control board
Antenna External Omni-directional for 360º coverage
Power Amplifier Protection Full VSWR protector
Operating Hours Unlimited
Frequency Channel Specifications:
Channel Frequency Range Output Power (± 1dBm)
CH1 20-80 MHz 50 dBm
CH2 80-200 MHz 50 dBm
CH3 200-500MHz 50 dBm
CH4 500-1000MHz 50 dBm
CH5 1000-1500MHz 50 dBm
CH6 1500-2000MHz 50 dBm
CH7 2000-2500MHz 50 dBm
CH8 2500-3000MHz 50 dBm
CH9 851-894MHz 50 dBm
CH10 925-960MHz 50 dBm
CH11 1805-1880MHz / 1930-1990MHz 50 dBm
CH12 2110-2170MHz 50 dBm
CH13 2400-2500MHz 50 dBm
Additional Specifications:
Power Supply: AC110-240V
Output Power: 1300W
Jamming Radius: 50-600M (depending on environment signal strength)
Power Consumption: 3900W
Host Weight: 85Kg
Antennas: 13 pcs External Omni antennas
Host Size (L×H×W): 625×500×700 mm
Humidity: 30%-95%
Working Temperature: -20 to +55 degree Celsius
Applications
  • Convoy Protection
  • VIP Protection
  • RIOT Control
  • S.W.A.T Team Operations
  • EOD Operations
  • Electronic Countermeasure
