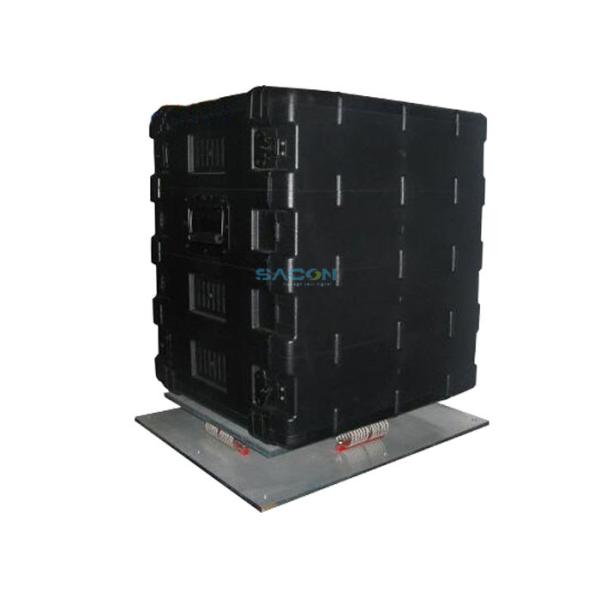

Digital 1000W Output Power Bomb Jammer with 20-2500MHz Frequency Range for Vehicle Mounted Convoy Protection
Digital 1000W Output Power Bomb Jammer with 20-2500MHz Frequency Range for Vehicle Mounted Convoy Protection
Digital 1000W Output Power Bomb Jammer with 20-2500MHz Frequency Range for Vehicle Mounted Convoy Protection
Digital 1000W Output Power Bomb Jammer with 20-2500MHz Frequency Range for Vehicle Mounted Convoy Protection
Specifications
Brand Name :
Sacon
Model Number :
SA-VIP1000
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
100pcs/month
Delivery Time :
15 work days after receive payment
Packaging Details :
Wooden Case with PE Foam
Product Name :
Digital VIP Bomb Jammer
Frequency :
20 - 2500MHz
Operating Humidity :
5% - 95%
Jamming Range :
50 - 800meters,depend On Signal Strength Of Mobile Network
Output Power :
1000w
Weight :
65kg
Description
Digital 1000w Convoy Bomb Jammer 20 - 2500 MHz for VIP Convoys Protection
Product Overview

Protecting VIP convoys from the threat of Remote Control Improvised Explosive Devices (RCIEDs) - road-side bombs has become a critical security challenge in many parts of the world.

The Digital VIP 1000w Convoy Bomb Jammer is a vehicle-mounted, high-power jamming system designed specifically for blocking remote-controlled improvised explosive devices (RCIEDs) used by terrorists. Utilizing state-of-the-art technology, this system provides maximum performance in jamming signals that transmit bomb activation commands.

The jamming radius varies depending on several conditions including transmitter frequency, output power, distance to receiver, and environmental obstacles.

Key Features
  • Ultra-broadband frequency coverage: 20-2500MHz
  • All frequency bands jammed continuously and simultaneously
  • Shockproof case design for easy mobility
  • Approved by international government agencies
  • Optional integrated back-up battery system for continuous silent operation and fast start
  • Integrated independent "smart active" cooling system
  • System management via remote control unit installed covertly in driver's console
  • Individual on/off switches for each frequency band
  • Special RF protection shielding for passenger and VIP safety
  • Supplied to Olympic Events and Universiade
  • Designed to protect VIP teams and important locations from RCIED attacks
Applications
  • Convoy Protection
  • VIP Protection
  • Riot Control
  • S.W.A.T Teams
  • EOD Operations
  • Electronic Countermeasures
Technical Specifications
RF Characteristic Specification
Output Power 1000 Watts
Internal Modulation FM Hopping Frequency
Signal Source VCO Synthesized
Power Supply AC110-240V, 24V or 48V DC
Modules Per Unit 11
Control ON/OFF with Switch
Monitoring Adjusted output power by DIP Switch
Antenna External - Omni-directional for 360º
Power Amplifier Protectors Full VSWR protector
Operating Hours Unlimited
Channel Frequency Range Application Output Power
CH1 20~108MHz Wireless Toys, FM Radio 100W
CH2 135~174MHz Walkie-talkie (VHF) 100W
CH3 300-400MHz Remote Control, Drone 100W
CH4 400~470MHz Walkie-talkie (UHF), Car Alarm 100W
CH5 851~894MHz Cellular CDMA 100W
CH6 925-960MHz Cellular GSM, E-GSM 100W
CH7 1805~1920MHz Cellular DCS, PCS 100W
CH8 1930-1990MHz Cellular PCS 100W
CH9 2110~2170MHz Cellular WCDMA 100W
CH10 2400-2485MHz WiFi, Bluetooth, Drone 50W
CH11 1570-1580MHz GPS L1, Drone 50W
Parameter Value
Power Supply AC110-240V
Output Power 1000W
Jamming Radius 50-800M (depending on environment and signal strength)
Power Consumption 3000W
Weight 65Kg
External Panel Antennas Size (L×H×W) 640×540×550mm
Humidity 5%-95%
Working Temperature -20°C to +55°C
