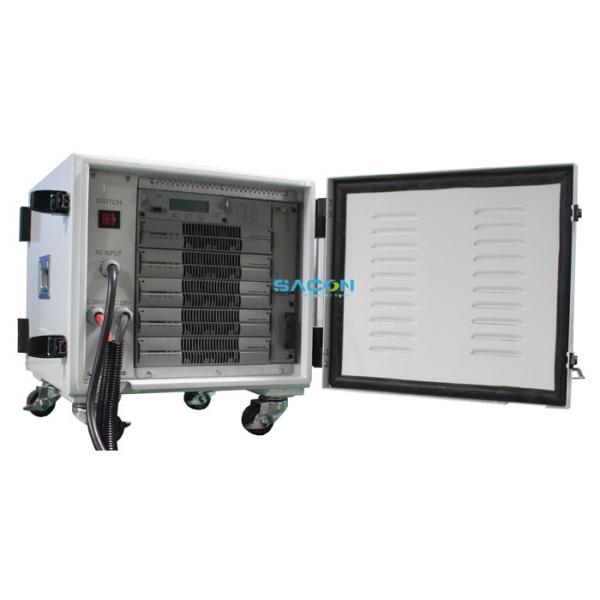

Professional 1000W RCIED Convoy Bomb Jammer with 20-6000MHz Full Band Jamming and 600m Range
Professional 1000W RCIED Convoy Bomb Jammer with 20-6000MHz Full Band Jamming and 600m Range
Professional 1000W RCIED Convoy Bomb Jammer with 20-6000MHz Full Band Jamming and 600m Range
Professional 1000W RCIED Convoy Bomb Jammer with 20-6000MHz Full Band Jamming and 600m Range
Specifications
Brand Name :
Sacon
Model Number :
SA-VIP1500S
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
100pcs/month
Delivery Time :
15 work days after receive payment
Packaging Details :
Wooden Case with PE Foam
Product Name :
20-6000MHz VIP Communication Jammer
Advantage :
20-6000MHz Full Band Jamming
Power Amplifier Protectors :
Full VSWR Protector Over Heat
Jamming Range :
50-600meters,depend On Mobile Signal Strength
Output Power :
1000w
Weight :
75kg
Description
Professional 1000w RCIED Convoy Bomb Jammer Block 20 MHz - 6000 MHz Full Band
Product Overview

15 Bands RCIED Convoy Bomb Jammer Block 20 MHz - 6000 MHz Up To 600m

The SA-VIP1500S is a very high power, modular, battle-proven IED jammer designed for vehicle installation. This system consists of multi-band jamming modules for high RF density and superior jamming efficiency, providing critical protection for VIP convoys during complex scenarios where protection against RCIED threats is essential.

The SA-VIP1500S utilizes state-of-the-art jamming techniques for maximum performance and is based on digital programming and control. The multi-band modules employ unique modulation techniques using mixed signals for high jamming efficiency.

Applications
  • Convoy Protection
  • VIP Protection
  • RIOT Control
  • S.W.A.T Team Operations
  • EOD Operations
  • Electronic Countermeasures
Key Features
  • 20-6000MHz jamming with Multi-VCO Technology
  • Modular construction for easy maintenance, repair and upgrade
  • Jamming up to 15 different jamming modules
  • Maximum 1000 watt total RF output power
  • Customizable for AM, FM, VHF, UHF, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA, 4G 700, 4G 800, LTE 2300, LTE 2600, GPS, WIFI, WIMAX, and more
Technical Specifications
RF Characteristics Specification 1 Specification 2
Output Power 1300 Watts 1000 Watts
Signal Source DDS Multi-VCO
Power Supply AC110-240V, 24V or 48V DC AC110-240V, 24V DC
Modules Per Unit 13 15
Wired Remote Control ON/OFF Switch ON/OFF Switch
Remote Monitoring Adjusted output power by wired digital control board Adjusted output power by wired control board
Antenna External - Omni-directional for 360º External - Omni-directional for 360º
Power Amplifier Protectors Full VSWR protector Full VSWR protector
Operating hours Unlimited Unlimited
Can add LTE700MHz, LTE 2600MHz, LTE2300MHz, LTE800MHz
Frequency Channel Specifications
Channel Frequency Range Application Output Power(±1dBm)
CH1 20~108MHz Wireless Toys, FM Radio 100W
CH2 135~174MHz Walkie-talkie (VHF) 100W
CH3 300-400MHz Remote Control, Drone 100W
CH4 400~470MHz Walkie-talkie (UHF), Car Alarm 100W
CH5 851~894 MHz Cellular CDMA 100W
CH6 902-960MHz Cellular GSM, E-GSM, Drone 100W
CH7 1805~1990MHz Cellular DCS, PCS 100W
CH8 2110~2170MHz Cellular WCDMA 100W
CH9 2400-2485MHz WiFi, Bluetooth, Drone 50W
CH10 1570-1580MHz GPS L1, Drone 50W
CH11 1220-1230MHz GPS L2, Drone 50W
CH12 2500-3000MHz MMDS 15W
CH13 3000-4000MHz Future Band (Reserve) 10W
CH14 4000-5000MHz Future Band (Reserve) 10W
CH15 5000-6000MHz WiFi, WLAN, Drone 15W
Additional Specifications

Power Supply: AC110-240V, DC 28V

Output Power: 1000W

Jamming Radius: 50-600M depending on environment signal strength

Power Consumption: 3000W

Weight: 75Kg

External Omni Antennas Size (L×H×W): 640×540×550mm

Humidity: 5%-95%

Working Temperature: -10°C to +55°C

Professional 1000W RCIED Convoy Bomb Jammer with 20-6000MHz Full Band Jamming and 600m Range
