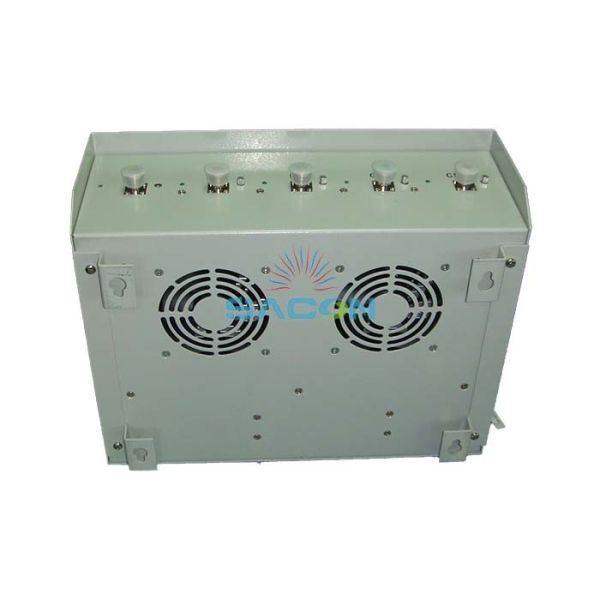

5 Bands Wireless Cell Phone Signal Scrambler 75w With Omni Glass Antennas
Product Overview
This 5 Bands 75w Wireless Indoor Cell Phone Signal Jammer with Omni Glass Antennas is engineered for continuous operation in secure environments. Built as a prison-grade jammer, it features a robust metal enclosure and advanced cooling system for 24/7 reliability.
Key Features
- Specialized prison-grade metal enclosure design
- 75w high power blocker with unlimited continuous operation
- Advanced heat sink design with integrated cooling fans
- Secure anti-sabotage construction
- Optional directional or omni-directional antennas
- User-adjustable frequency ranges
- High efficiency output power with extended jamming radius
- Comprehensive self-protection systems
- Overheat protection with thermal protector
- Jams up to 5 different frequency bands simultaneously
- VSWR circuit protection against antenna issues
- Customizable frequency options available
Technical Specifications
| Output Interface |
Description |
Shield Band Frequency |
RF Output Power (±1dBm) |
| CH1 |
CDMA800 |
851-894 MHz |
43dBm |
| CH2 |
WCDMA 3G |
2110-2170 MHz |
42dBm |
| CH3 |
GSM900 |
925-960 MHz |
43dBm |
| CH4 |
GSM1800/PCS 1900 |
1805-1880 MHz / 1930-1990 MHz |
42dBm |
| CH5 |
GPS or WIFI |
1570-1580 MHz or 2400-2500 MHz |
42dBm |
- Power Supply: AC220V, DC 28V
- Total Output Power: 75 Watt
- Power Consumption: 300 Watt
- Weight: 10 Kg
- Dimensions: 45 × 30 × 25 cm
- Humidity: 30%-95%
- Operating Temperature: -20℃ to +55℃
- Jammer Modules: 5
- Cooling System: Systematic Smart Cooling System
- System Protection: VSWR
- Jamming Source: Frequency Scan Technology
- Antenna Type: Omni antennas or High Gain Directional Panel Antennas
- Jumper: 7D-FB superflexible coaxial cable
- Jamming Range: 20-100m (depending on mobile network signal density)
Application Areas
- Prisons and correctional facilities
- Government compounds and secure locations
- Oil and gas storage facilities
- Security services and units
- Intelligence and secret services
- Museums and cultural heritage sites
- Border patrol and enforcement
- Customs and border control
Package Contents
- 1 × Mobile Signal Jammer Master Unit
- 1 × English User Manual (digital version available via email)
- Mounting Screws
- 5 × Omni Glass Antennas
