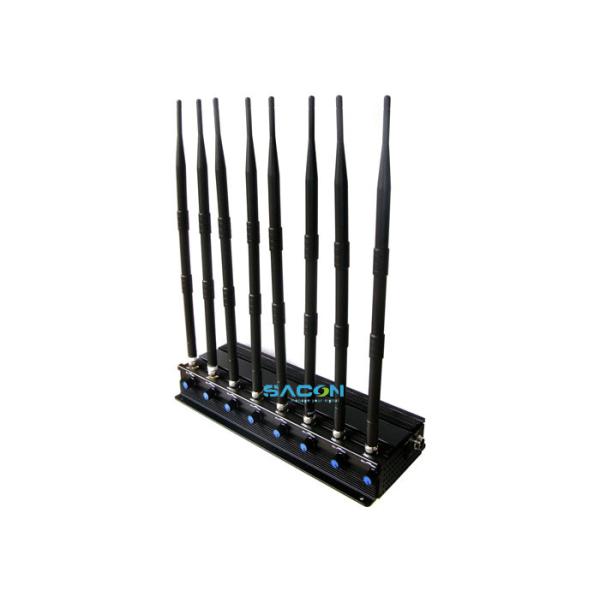

20W Output Power 2.4G 5.8G Signal Jammer with 8 Omni-Directional Antennas and 40m Jamming Range
20W Output Power 2.4G 5.8G Signal Jammer with 8 Omni-Directional Antennas and 40m Jamming Range
20W Output Power 2.4G 5.8G Signal Jammer with 8 Omni-Directional Antennas and 40m Jamming Range
20W Output Power 2.4G 5.8G Signal Jammer with 8 Omni-Directional Antennas and 40m Jamming Range
Specifications
Brand Name :
Sacontelecom
Model Number :
SA-008A
Place of Origin :
China
MOQ :
5pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
5000pcs/month
Delivery Time :
Within 2 days for sample
Packaging Details :
Jammer Kit *1pc,Omni Antenna * 8pcs,Adapter * 1pc,Car Charger * 1pc
Certification :
ISO9001
Product Name :
2.4G 5.8G Signal Jammer
Output Power :
20w
Warranty :
1 Year From Delivery Date
Jamming Range :
Up to 40m, the jamming radius still depends on the strength signal in given area
Antennas :
8 PCS Omni Antenna
Weight :
4kg
Description
2.4G 5.8G Cell Phone Signal Jammer 20 Watt Omni-Directional Antennas
Product Overview
This 8-band 20W adjustable 2.4G 5.8G signal blocker is a popular model capable of blocking all mobile internet users within a 40-meter radius. The device effectively blocks all 4G connections regardless of provider. In addition to the standard frequencies, you can choose/mix up to 6 different frequencies from our comprehensive list.
The jammer can be operated through AC 110-240V or DC 12V car charger, making it suitable for both stationary and mobile applications.
SA-008A adjustable desktop WiFi GPS cell jammer is designed to secure the perimeter of large buildings. When activated, it disrupts all popular frequency bands, including part of the low frequency spectrum. Our technicians can customize the frequency blocking according to your specific requirements.
Key Features
  • External omni-directional antennas covering all TX frequencies (downlink only)
  • Includes car charger for 12V DC operation in vehicles
  • Adjustable buttons to turn off any single band without affecting other bands
  • Built-in cooling system with three fans for continuous 365-day operation
  • Most frequency ranges can be customized
Compatible Frequency Bands
CDMA450, GPS L1, L2, L3, L4, L5, Lojack (173Mhz), Wi-Fi/Bluetooth, 2.4Ghz wireless camera, 5.8G, 3G, 4G Wimax/4G LTE, CDMA800, GSM 850, GSM1900, GSM900, GSM1800, Remote controls (315Mhz, 433Mhz, 868Mhz), SAT Satellite Phones 1520-1670MHz, UHF(420-480Mhz) and VHF(130-180Mhz), Low frequencies: 130-205MHz, 205-275MHz, 275-345MHz, 345-415MHz, 425-500MHz, 850-965MHz
Technical Specifications
Frequency Band Range
CDMA 800 850 - 894MHz
GSM 900 925 - 960MHz
GSM 1800 1,805 - 1,880MHz (DCS)
GSM 1900 1,920 - 1,990MHz (PCS)
3G 2,110 - 2,170MHz
GPS 1570 - 1580MHz
WIFI 2.4G 2400 - 2500MHz
VHF 135 - 174MHz
UHF 400 - 470MHz
4G LTE or Wimax 2345 - 2400MHz or 2620 - 2690MHz
LOJACK 167 - 175MHz
4G 725-770MHz or 790-825MHz
GPS L2 1170-1300MHz
You can select eight of above frequency bands you need in a jammer
Total output power 18W
Jamming range Up to 40m (depends on signal strength in given area)
Antennas 8pcs External Omni-directional antennas
Power supply 50 to 60Hz, 100 to 240V AC, AC adapter (AC100-240V-DC12V)
Dimension 370 x 140 x 51mm
Full set weight 4.0kg
Application Areas
  • Meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, buses
  • For special locations such as hospitals and gas stations, please conduct field testing first to ensure no interference with normal equipment operation
Packing List
  • 1 x Mobile Signal Jammer Master
  • 1 x English User Manual (scan file available via email to avoid customs issues)
  • AC Power Charger (correct standard according to shipping address)
  • Mounting Screws
  • Band Specific Antennas x 8
  • 1 x car charger
