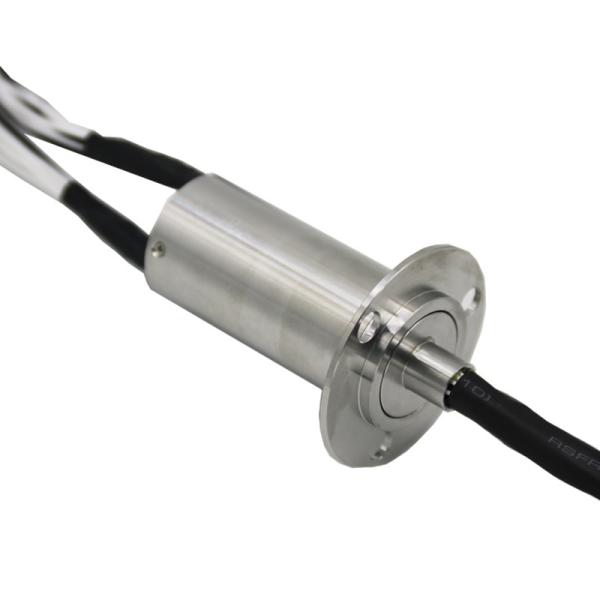

Aluminum Alloy Shell Brush Mini Slip Ring High Speed Lightweight High Precision Rotary Connector
Aluminum Alloy Shell Brush Mini Slip Ring High Speed Lightweight High Precision Rotary Connector
Aluminum Alloy Shell Brush Mini Slip Ring High Speed Lightweight High Precision Rotary Connector
Aluminum Alloy Shell Brush Mini Slip Ring High Speed Lightweight High Precision Rotary Connector
Aluminum Alloy Shell Brush Mini Slip Ring High Speed Lightweight High Precision Rotary Connector
Aluminum Alloy Shell Brush Mini Slip Ring High Speed Lightweight High Precision Rotary Connector
Specifications
Price :
200~800 USD
Size :
Ultra Small
Voltage Rating :
80V
Operating Speed :
0-1000rpm
Housing Material :
Aluminum Alloy
Working Temperature :
-40℃ to 65℃
Current Rating :
1A
Contact Material :
Gold-gold
Dynamic resistance change value :
≤10mΩ
Number Of Circuits :
1~8
Protection Level :
IP51
Brand Name :
SPR-ing
Model Number :
SP013008
Place of Origin :
Shenzhen
MOQ :
1 piece
Payment Terms :
T/T
Supply Ability :
500/month
Delivery Time :
1~3 weeks
Packaging Details :
Carton
Description

Compact High-Speed Brush Slip Rings: Lightweight, High Precision

Aluminum Alloy Shell Brush Mini Slip Ring High Speed Lightweight High Precision Rotary Connector

SP013008 Ultra small slip ring 8-way miniature slip ring

This 8-way small slip ring is specially customized by our company for weapons, and can be customized with high-speed and long-life slip rings.

Electrical specifications

Design loop

1~8

Insulation resistance

250MΩ/250V/DC

Rated voltage/current

80VDC / 1A

Dielectric strength

>250VAC/50Hz/60s

Dynamic resistance change value

≤10mΩ

Mechanical specifications

Rated speed

0-1000 rpm (1000-10000RPM requires customization)

Working life

10 million rpm (>10 million rpm requires customization)

Operating temperature

-40℃ ~ 65℃

Operating humidity

≤80%

Contact material

Gold-gold

Shell material

Aluminum alloy

Weight

<20g

IP grade

IP51

Size

Aluminum Alloy Shell Brush Mini Slip Ring High Speed Lightweight High Precision Rotary Connector

Technical advantages:

ü Slipring's core technology - friction pair technology: gold metal contact technology, ensuring an ultra long service life.

ü Mirror processing technology: Ensure that the smoothness of the slip ring contact surface can reach Ra0.02, making the contact more reliable.

ü Precision component manufacturing process: dimensional tolerance<0.01mm, high precision, and more stable performance.

ü Advanced brush wire modulation technology: Nearly zero pressure brush design and debugging process, extending the life of the slip ring by 1/3.

ü Small in size and compact in structure, it can meet the space constraints of users.

ü The slip ring adopts a solid aluminum alloy metal structure with strong sealing performance, suitable for extremely harsh environments.

ü High speed, customizable speed of 10000 revolutions per minute.

ü Long lifespan, 10 million revolutions per minute.

Wide-Ranging Applications

  • Aerospace & Defense: Enable stable data transmission in satellite antennas and missile guidance systems.
  • Renewable Energy: Optimize power output in wind turbines with real-time pitch control.
  • Industrial Automation: Support high-speed robotic arms in automotive manufacturing for precise operations.
  • Medical Equipment: Ensure accurate signal transfer in CT scanners and surgical robots.
  • Entertainment & Media: Facilitate dynamic movements in stage machinery and aerial cinematography drones.

Factory Strength & Services

As a leading manufacturer with 15+ years of experience and ISO 9001:2015 certification, our 10,000㎡ factory integrates CNC machining, laser welding, and automated assembly lines. We offer:
  • Customization: Tailor-made solutions based on your specific requirements, including size, channel number, and environmental resistance.
  • Quality Assurance: 100% inspection via high-speed rotation testing, signal integrity analysis, and environmental simulation.
  • Technical Support: 24/7 pre-sales consultation and after-sales troubleshooting.

Logistics & Delivery

  • Fast Shipping: Partnered with DHL, FedEx, and sea freight carriers for global delivery within 3 - 30 days.
  • Flexible MOQ: Start from 1 unit for samples, with discounts available for bulk orders.
  • Secure Packaging: Products are protected with anti-static foam and sturdy cartons to ensure damage-free transit.

Why Choose Us?

  • Direct from Manufacturer: Cut out middlemen for competitive prices.
  • Proven Track Record: Serving 500+ clients worldwide.
  • Innovation-Driven: Regularly invest in R&D to stay ahead in slip ring technology.

Product Features

  • Ultra - Compact Design: With diameters starting from 6mm, our mini slip rings are 50% smaller than standard models, ideal for space - constrained devices like drones, medical endoscopes, and miniature robots.
  • High - Speed Performance: Capable of operating at rotational speeds up to 10,000 RPM, ensuring stable power and signal transmission even under extreme conditions.
  • Versatile Transmission: Support simultaneous transfer of power, data (up to 10Gbps), and Ethernet signals, reducing the need for multiple connectors.
  • Durable Materials: Constructed with gold - plated copper alloy rings and wear - resistant PEEK insulation, providing a service life of over 10 million revolutions.

Aluminum Alloy Shell Brush Mini Slip Ring High Speed Lightweight High Precision Rotary ConnectorAluminum Alloy Shell Brush Mini Slip Ring High Speed Lightweight High Precision Rotary ConnectorAluminum Alloy Shell Brush Mini Slip Ring High Speed Lightweight High Precision Rotary Connector
