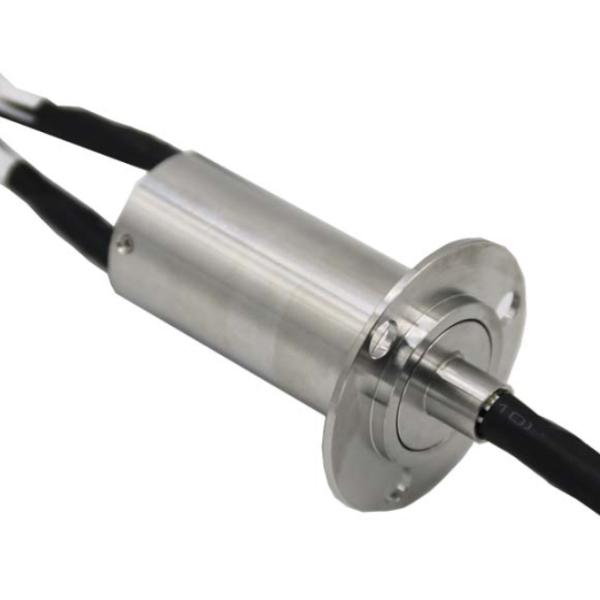

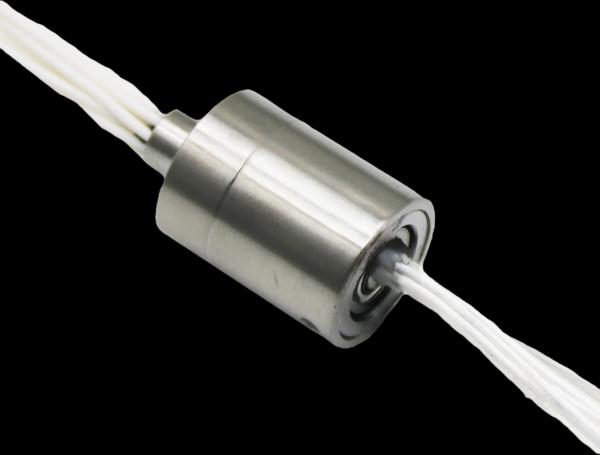

Custom Mini Slip Ring Rotary Connector for Robotics Automation Solution Applications
Custom Mini Slip Ring Rotary Connector for Robotics Automation Solution Applications
Custom Mini Slip Ring Rotary Connector for Robotics Automation Solution Applications
Custom Mini Slip Ring Rotary Connector for Robotics Automation Solution Applications
Custom Mini Slip Ring Rotary Connector for Robotics Automation Solution Applications
Custom Mini Slip Ring Rotary Connector for Robotics Automation Solution Applications
Custom Mini Slip Ring Rotary Connector for Robotics Automation Solution Applications
Custom Mini Slip Ring Rotary Connector for Robotics Automation Solution Applications
Custom Mini Slip Ring Rotary Connector for Robotics Automation Solution Applications
Custom Mini Slip Ring Rotary Connector for Robotics Automation Solution Applications
Specifications
Brand Name :
SPR-ing
Model Number :
SP025
Place of Origin :
Shenzhen
MOQ :
1
Price :
200~800 USD
Payment Terms :
L/C,T/T
Supply Ability :
1000/month
Delivery Time :
1~3 weeks
Packaging Details :
Carton
Available loop :
36 or 56
Rated voltage/current :
0–240VDC / 2A
Max speed :
250 rpm
Lifetime :
10 million revolutions
Temperature range :
-40℃ ~ 85℃
Flange dimensions :
A/B (36 rings: 66/52.4 mm; 56 rings: 89/75.3 mm)
Description
Custom Slip Ring for OEM Robotics and Automation Solutions
Premium slip ring featuring gold-gold contacts and high-precision manufacturing with tolerances under 0.01mm. Integrated pouring and mirror processing ensure excellent contact reliability and low dynamic resistance (≤10mΩ). Compact design, durable stainless steel shell, and near-zero pressure brush system increase service life and stability. Rated for 0-240VDC, maximum 2A, 0-250 rpm, operating temperature range of -40°C to 85°C.
Technical Specifications
Electrical Specifications
Design Loop 36, 56
Insulation Resistance 500MΩ/500V/DC
Rated Voltage/Current 0-240VDC / Max 2A
Dielectric Strength 250VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Mechanical Specifications
Rated Speed 0-250 rpm
Working Life 10 million rpm
Operating Temperature -40℃ to 85℃
Contact Material Gold-gold
Shell Material 303 Stainless Steel
Boundary Dimensions with Flange
Number of Rings Size A Size B
36 rings 66mm 52.40mm
56 rings 89mm 75.30mm
Ring Combination Modes
36-Ring Combination 36-way 2A
4-way 5A, 28-way 2A
4-way 10A, 20-way 2A
56-Ring Combination 56-way 2A
4-way 5A, 48-way 2A
Outline Drawing
Custom Mini Slip Ring Rotary Connector for Robotics Automation Solution Applications
Technical Advantages
  • Gold-gold contact - High conductivity, excellent thermal conductivity, small temperature coefficient of resistance, resistance to vulcanization, oxidation, corrosive gases, good hardness and wear resistance, fusion welding resistance, and arc corrosion resistance
  • Integrated pouring process - Ensures concentricity of ring groove and bearing ≤ 0.01 mm
  • Mirror processing technology - Contact surface finish reaches Ra0.02 for more reliable contact
  • Precision component manufacturing - Dimensional tolerances under 0.01mm for high precision and stable contact
  • Near-zero pressure brush design - Extends slip ring service life by 1/3
  • Compact design - Small size and compact structure to meet space constraints
  • Stainless steel construction - Integral stainless steel metal structure suitable for extremely harsh environments
Support and Services
  • Expert troubleshooting assistance
  • Installation guidance and support
  • Maintenance recommendations
  • Warranty services for eligible products
Packing and Shipping
Each slip ring is securely packaged in a sturdy cardboard box with protective padding. Shipments are tracked via reliable courier services to ensure safe and timely delivery.
Frequently Asked Questions
Brand Name SPR-ing
Model Number SP025
Manufacturing Location Shenzhen, China
Minimum Order Quantity 1 piece
Accepted Payment Methods L/C and T/T
