Specifications
Working Temperature :
-50℃ ~ 80℃
Working Life :
10 million circle
Insulation Resistance :
200MΩ/250V/DC
Rotating Speed :
0-10000 rpm
Brand Name :
SPR-ing
Payment Terms :
L/C,T/T
Delivery Time :
1 week
Maximum Current :
1A
Place of Origin :
Shenzhen
Shell Material :
304 stainless steel
MOQ :
1
Supply Ability :
1000/month
Design loop :
18
Price :
200-800USD
Packaging Details :
Carton
Dynamic Resistance Change :
≤20mΩ
Model Number :
SP013018
Description
Factory Direct Custom Slip Ring OEM/ODM High Performance Rotary Joint

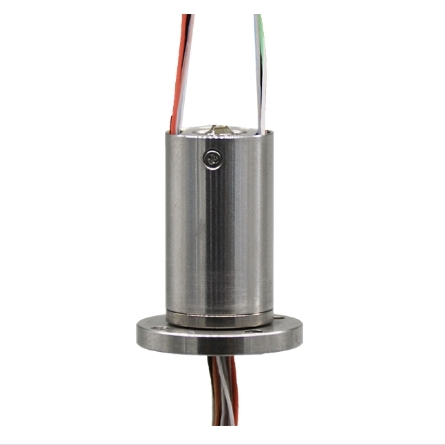

The SP013018 Series High-Speed Slip Ring is engineered for ultra-high-speed applications up to 10,000 rpm. Featuring gold-to-gold contacts and low dynamic resistance variation (≤20mΩ), it ensures stable signal transmission for precision testing platforms such as aircraft engine and automotive wheel hub performance testing.

Application Areas

Used for high-speed testing platform strain gauge signals, thermocouple signals, and similar applications including aircraft engine testing, high-speed rail component testing, and automotive wheel hub performance testing.

Technical Parameters
Electrical Specifications
Parameter Specification
Design Loop ≤18
Insulation Resistance 250MΩ/250V/DC
Rated Voltage/Current 80VDC /1A
Dielectric Strength >300VAC/50Hz/60s
Dynamic Resistance Change Value ≤20mΩ
Wire Length Standard 400mm (adjustable according to requirements)
Mechanical Specifications
Parameter Specification
Rated Speed 0-10,000 rpm
Working Life 10 million rpm
Operating Temperature -50℃ ~ 80℃
Operating Humidity ≤80%
Contact Material Gold-gold
Shell Material 304 stainless steel
Maximum Starting Torque 0.5N.cm
Outline Drawing
Direct Supply Custom Mini Slip Ring High Performance Rotary Joint Electrical Connector
Technical Advantages
  • Core Friction Pair Technology: Gold metal contact technology ensures ultra-long service life
  • Integrated Casting Process: Guarantees concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror Processing Technology: Achieves slip ring contact surface smoothness of Ra0.02 for more reliable contact
  • Precision Component Manufacturing: Dimensional tolerance <0.01mm, axial displacement <0.01mm for high precision and stable performance
  • Advanced Brush Wire Modulation: Near-zero pressure brush design extends slip ring life by 1/3
  • High Speed Capability: Maximum speed of 8,000 rpm (with cooling system)
  • Extended Lifespan: Maximum operational life of up to 100 million revolutions
