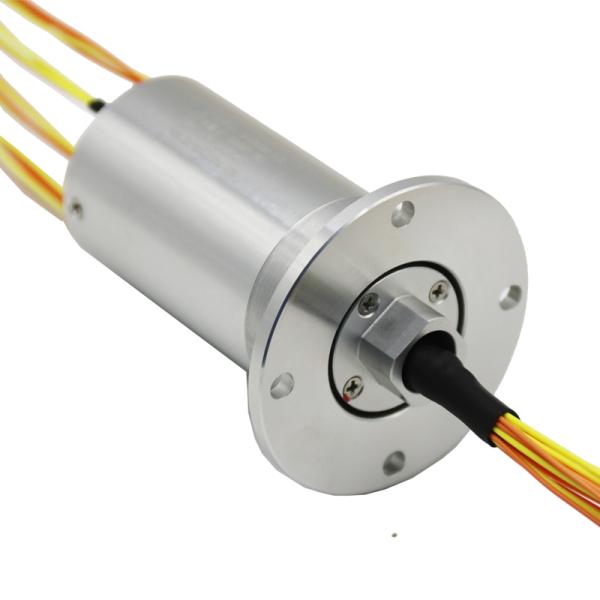

Mini Capsule Slip Ring 18 Circuit 1A Rotary Electrical Connector for Medical Device Automation
Mini Capsule Slip Ring 18 Circuit 1A Rotary Electrical Connector for Medical Device Automation
Mini Capsule Slip Ring 18 Circuit 1A Rotary Electrical Connector for Medical Device Automation
Mini Capsule Slip Ring 18 Circuit 1A Rotary Electrical Connector for Medical Device Automation
Mini Capsule Slip Ring 18 Circuit 1A Rotary Electrical Connector for Medical Device Automation
Mini Capsule Slip Ring 18 Circuit 1A Rotary Electrical Connector for Medical Device Automation
Mini Capsule Slip Ring 18 Circuit 1A Rotary Electrical Connector for Medical Device Automation
Mini Capsule Slip Ring 18 Circuit 1A Rotary Electrical Connector for Medical Device Automation
Mini Capsule Slip Ring 18 Circuit 1A Rotary Electrical Connector for Medical Device Automation
Mini Capsule Slip Ring 18 Circuit 1A Rotary Electrical Connector for Medical Device Automation
Specifications
MOQ :
1
Price :
200-800USD
Brand Name :
SPR-ing
Delivery Time :
1 week
Working Temperature :
-50℃ ~ 80℃
Rotating Speed :
0-10000 rpm
Maximum Current :
1A
Shell Material :
304 stainless steel
Dynamic Resistance Change :
≤20mΩ
Working Life :
10 million circle
Place of Origin :
Shenzhen
Payment Terms :
L/C,T/T
Insulation Resistance :
200MΩ/250V/DC
Supply Ability :
1000/month
Packaging Details :
Carton
Model Number :
SP013018
Design loop :
18
Description

SP013018 long life high speed slip ring

The miniature high-speed long-life slip ring has a speed of 10000 revolutions per minute and a lifespan of 10 million revolutions per minute, with stable performance!

As one of our key technologies, the high-speed slip ring has been successfully applied to a certain unit model in large quantities. After sufficient user verification, our company's high-speed slip ring has stable performance and long service life.

Application areas: Used for high-speed testing platform strain gauge signals, thermocouple signals, etc., such as aircraft engine testing, high-speed rail component testing, automotive wheel hub performance testing!

Technical parameters

Electrical specifications

Design loop

≤18

Insulation resistance

250MΩ/250V/DC

Rated voltage/current

80VDC /1A

Dielectric strength

>300VAC/50Hz/60s

Dynamic resistance change value

≤20mΩ

Wire length

Standard 400mm (adjustable according to requirements)

Mechanical specifications

Rated speed

0-10000 rpm

Working life

10 million rpm

Operating temperature

-50℃ ~ 80℃

Operating humidity

≤80%

Contact material

Gold-gold

Shell material

304 stainless steel

Maximum starting torque

0.5N.cm

Outline Drawing

Mini Capsule Slip Ring 18 Circuit 1A Rotary Electrical Connector for Medical Device Automation


Technical advantages:

ü Slipring's core technology - friction pair technology: gold metal contact technology, ensuring an ultra long service life.

ü Integrated casting process: Ensure the concentricity between the ring groove and the bearing is ≤ 0.01mm.

ü Mirror processing technology: Ensure that the smoothness of the slip ring contact surface can reach Ra0.02, making the contact more reliable.

ü Precision component manufacturing process: dimensional tolerance<0.01mm, axial displacement<0.01mm, high precision, and more stable performance.

ü Advanced brush wire modulation technology: Nearly zero pressure brush design and debugging process, extending the life of the slip ring by 1/3.

ü High speed, this slip ring can reach a maximum speed of 8000 revolutions per minute (with cooling system).

ü Long lifespan, with a maximum lifespan of up to 100 million revolutions per minute.
