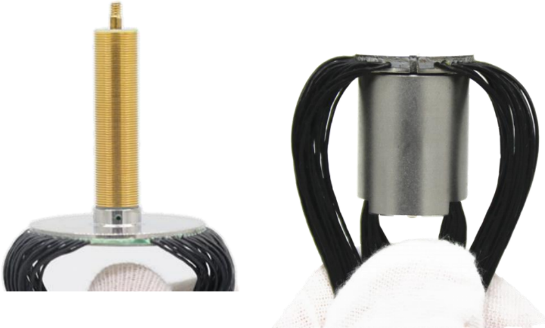

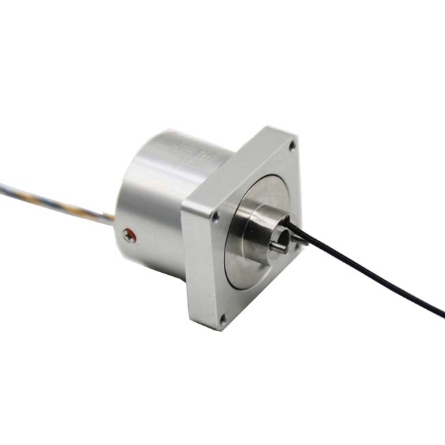

Medical Equipment Mini Slip Ring Low Noise Long Life Rotary Electrical Joint
Medical Equipment Mini Slip Ring Low Noise Long Life Rotary Electrical Joint
Medical Equipment Mini Slip Ring Low Noise Long Life Rotary Electrical Joint
Medical Equipment Mini Slip Ring Low Noise Long Life Rotary Electrical Joint
Medical Equipment Mini Slip Ring Low Noise Long Life Rotary Electrical Joint
Medical Equipment Mini Slip Ring Low Noise Long Life Rotary Electrical Joint
Medical Equipment Mini Slip Ring Low Noise Long Life Rotary Electrical Joint
Medical Equipment Mini Slip Ring Low Noise Long Life Rotary Electrical Joint
Medical Equipment Mini Slip Ring Low Noise Long Life Rotary Electrical Joint
Medical Equipment Mini Slip Ring Low Noise Long Life Rotary Electrical Joint
Specifications
Insulation Resistance :
200MΩ/250V/DC
Brand Name :
SPR-ing
Supply Ability :
1000/month
Design loop :
18
Working Life :
10 million circle
Working Temperature :
-50℃ ~ 80℃
MOQ :
1
Dynamic Resistance Change :
≤20mΩ
Rotating Speed :
0-10000 rpm
Place of Origin :
Shenzhen
Payment Terms :
L/C,T/T
Packaging Details :
Carton
Price :
200-800USD
Maximum Current :
1A
Shell Material :
304 stainless steel
Model Number :
SP013018
Delivery Time :
1 week
Description
Medical Equipment Slip Ring - Low Noise & Long Life Rotary Electrical Joint

Designed for demanding rotational environments, the SP013018 miniature high-speed slip ring delivers reliable electrical transmission at speeds up to 10,000 rpm. With a lifespan of 10 million revolutions, it provides long-term durability for strain gauge and thermocouple signal applications.

Application Areas

Used for high-speed testing platform strain gauge signals, thermocouple signals, and similar applications, including aircraft engine testing, high-speed rail component testing, and automotive wheel hub performance testing.

Technical Parameters
Electrical Specifications
Parameter Specification
Design Loop ≤18
Insulation Resistance 250MΩ/250V/DC
Rated Voltage/Current 80VDC /1A
Dielectric Strength >300VAC/50Hz/60s
Dynamic Resistance Change Value ≤20mΩ
Wire Length Standard 400mm (adjustable according to requirements)
Mechanical Specifications
Parameter Specification
Rated Speed 0-10,000 rpm
Working Life 10 million rpm
Operating Temperature -50℃ to 80℃
Operating Humidity ≤80%
Contact Material Gold-gold
Shell Material 304 Stainless Steel
Maximum Starting Torque 0.5N.cm
Outline Drawing
Medical Equipment Mini Slip Ring Low Noise Long Life Rotary Electrical Joint
Technical Advantages
  • Core friction pair technology with gold-gold contact ensures ultra-long service life
  • Integrated casting process maintains concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror processing technology achieves contact surface smoothness of Ra0.02 for reliable contact
  • Precision component manufacturing with dimensional tolerance <0.01mm and axial displacement <0.01mm
  • Advanced brush wire modulation technology with near-zero pressure brush design extends slip ring life by 1/3
  • High-speed capability reaching 8,000 rpm (with cooling system)
  • Extended lifespan up to 100 million revolutions
