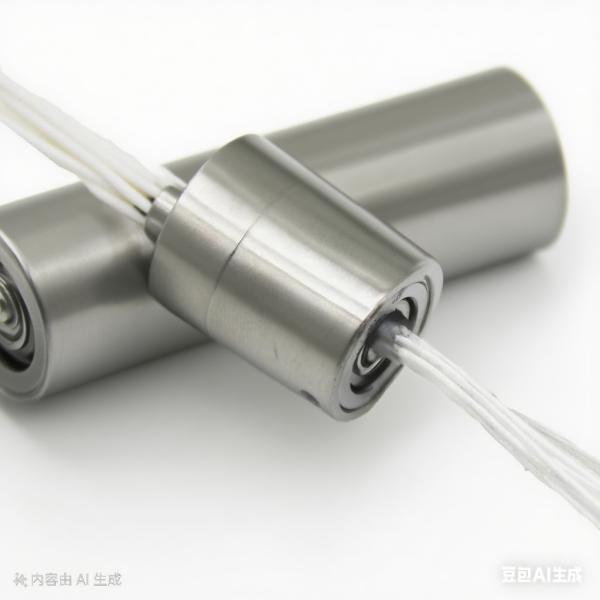

Customizable 6 Channel Multi Circuit Mini Slip Ring Rotary Connector Direct Supply Application
Customizable 6 Channel Multi Circuit Mini Slip Ring Rotary Connector Direct Supply Application
Customizable 6 Channel Multi Circuit Mini Slip Ring Rotary Connector Direct Supply Application
Customizable 6 Channel Multi Circuit Mini Slip Ring Rotary Connector Direct Supply Application
Customizable 6 Channel Multi Circuit Mini Slip Ring Rotary Connector Direct Supply Application
Customizable 6 Channel Multi Circuit Mini Slip Ring Rotary Connector Direct Supply Application
Customizable 6 Channel Multi Circuit Mini Slip Ring Rotary Connector Direct Supply Application
Customizable 6 Channel Multi Circuit Mini Slip Ring Rotary Connector Direct Supply Application
Customizable 6 Channel Multi Circuit Mini Slip Ring Rotary Connector Direct Supply Application
Customizable 6 Channel Multi Circuit Mini Slip Ring Rotary Connector Direct Supply Application
Specifications
Working Temperature :
-45℃ ~ 60℃
Shell Material :
Stainless steel+alluminum alloy
Supply Ability :
1000/month
Dynamic Resistance Change :
≤10mΩ
MOQ :
1
Price :
200-800USD
Model Number :
SP018006
Payment Terms :
L/C,T/T
Packaging Details :
Carton
Place of Origin :
Shenzhen
Brand Name :
SPR-ing
Maximum Current :
1A
Rotating Speed :
0-3000 rpm
Delivery Time :
1 week
Design loop :
6
Description
Customizable Multi-Circuit 6 Channel Slip Ring
SP018006 Mini Electric Slip Ring

High-Speed Miniature Slip Ring - Reliable Gold-Gold Contact Technology

This miniature slip ring supports 0-3000 rpm rotation, rated 1A current, and insulation resistance 250MΩ/250V DC. Gold-gold contacts and ≤10mΩ dynamic resistance ensure reliable electrical transmission. Compact (<30g) and precise (tolerance <0.01mm, axial displacement <0.01mm), with IP51 protection, it's ideal for industrial automation and robotics.

Technical Parameters
Electrical Specifications
Design Loop 6
Insulation Resistance 250MΩ/250V/DC
Current 1A
Dielectric Strength >250VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Mechanical Specifications
Rated Speed 0-3000 rpm
Working Life ≥100h storage life: ≥12 years
Operating Temperature -45℃ ~ 60℃
Contact Material Gold-gold
Shell Material Stainless steel + aluminum alloy
Maximum Starting Torque 3m N.m
Weight <30g (not include wire)
IP Grade IP51
Outline Drawing
Customizable 6 Channel Multi Circuit Mini Slip Ring Rotary Connector Direct Supply Application
Technical Advantages
  • Friction Pair Technology: Gold metal contact technology ensures ultra-long service life
  • Integrated Casting Process: Ensures concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror Processing Technology: Contact surface smoothness reaches Ra0.02 for more reliable contact
  • Precision Component Manufacturing: Dimensional tolerance <0.01mm, axial displacement <0.01mm for high precision and stable performance
  • Advanced Brush Wire Modulation: Nearly zero pressure brush design extends slip ring life by 1/3
  • High Speed Capability: Maximum speed of 8000 revolutions per minute (with cooling system)
  • Extended Lifespan: Maximum lifespan up to 100 million revolutions
