Specifications
Insulation Resistance :
200MΩ/250V/DC
Maximum Current :
1A
Working Temperature :
-50℃ ~ 80℃
Delivery Time :
1 week
Place of Origin :
Shenzhen
Packaging Details :
Carton
Supply Ability :
1000/month
Rotating Speed :
0-10000 rpm
Price :
200-800USD
Dynamic Resistance Change :
≤20mΩ
MOQ :
1
Design loop :
18
Brand Name :
SPR-ing
Model Number :
SP013018
Working Life :
10 million circle
Payment Terms :
L/C,T/T
Shell Material :
304 stainless steel
Description

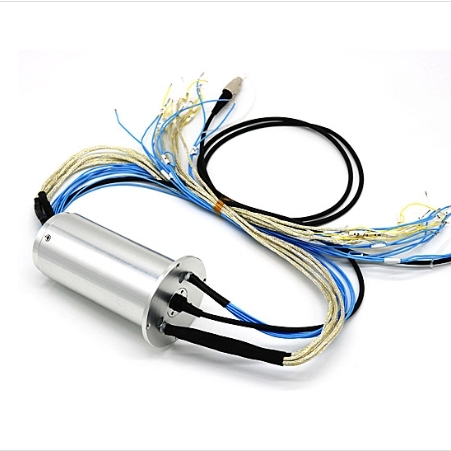

Industrial Automation Slip Ring Power & Signal Rotary Connector

SP013018 Long Life High Speed Slip Ring
This miniature high-speed long-life slip ring operates at speeds up to 10,000 RPM with a lifespan of 10 million revolutions, delivering exceptional performance stability. As a core technology in our product line, this high-speed slip ring has been extensively deployed in critical applications and has undergone thorough user validation, confirming its reliable performance and extended service life.

Application Areas

Ideal for high-speed testing platforms requiring strain gauge signals, thermocouple signals, and similar applications including:

  • Aircraft engine testing
  • High-speed rail component testing
  • Automotive wheel hub performance testing

Technical Parameters

Electrical Specifications

Parameter Specification
Design Loop ≤18
Insulation Resistance 250MΩ/250V/DC
Rated Voltage/Current 80VDC /1A
Dielectric Strength >300VAC/50Hz/60s
Dynamic Resistance Change Value ≤20mΩ
Wire Length Standard 400mm (adjustable according to requirements)

Mechanical Specifications

Parameter Specification
Rated Speed 0-10,000 RPM
Working Life 10 million RPM
Operating Temperature -50℃ to 80℃
Operating Humidity ≤80%
Contact Material Gold-gold
Shell Material 304 Stainless Steel
Maximum Starting Torque 0.5N.cm

Outline Drawing

Industrial Automation Mini Slip Ring Power Signal Rotary Connector for Manufacturing Equipment

Technical Advantages

  • Core Friction Pair Technology: Gold-to-gold metal contact technology ensures ultra-long service life
  • Integrated Casting Process: Maintains concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror Processing Technology: Achieves contact surface smoothness of Ra0.02 for enhanced reliability
  • Precision Component Manufacturing: Dimensional tolerance <0.01mm, axial displacement <0.01mm for high precision and stability
  • Advanced Brush Wire Modulation: Near-zero pressure brush design extends slip ring life by 1/3
  • High Speed Capability: Maximum operating speed of 8,000 RPM with cooling system
  • Extended Lifespan: Maximum operational life up to 100 million revolutions
