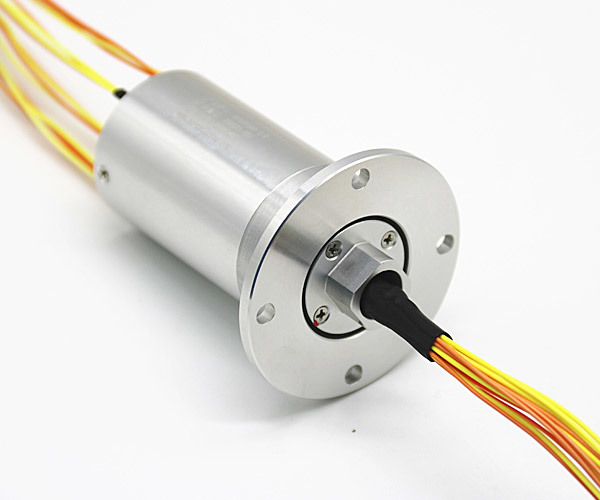

Capsule Mini Slip Ring High Speed Data Transfer Rotary Connector for Optical Electronic Pod Systems
Capsule Mini Slip Ring High Speed Data Transfer Rotary Connector for Optical Electronic Pod Systems
Capsule Mini Slip Ring High Speed Data Transfer Rotary Connector for Optical Electronic Pod Systems
Capsule Mini Slip Ring High Speed Data Transfer Rotary Connector for Optical Electronic Pod Systems
Capsule Mini Slip Ring High Speed Data Transfer Rotary Connector for Optical Electronic Pod Systems
Capsule Mini Slip Ring High Speed Data Transfer Rotary Connector for Optical Electronic Pod Systems
Capsule Mini Slip Ring High Speed Data Transfer Rotary Connector for Optical Electronic Pod Systems
Capsule Mini Slip Ring High Speed Data Transfer Rotary Connector for Optical Electronic Pod Systems
Capsule Mini Slip Ring High Speed Data Transfer Rotary Connector for Optical Electronic Pod Systems
Capsule Mini Slip Ring High Speed Data Transfer Rotary Connector for Optical Electronic Pod Systems
Specifications
Design loop :
18
Shell Material :
304 stainless steel
Place of Origin :
Shenzhen
MOQ :
1
Payment Terms :
L/C,T/T
Packaging Details :
Carton
Working Life :
10 million circle
Dynamic Resistance Change :
≤20mΩ
Working Temperature :
-50℃ ~ 80℃
Rotating Speed :
0-10000 rpm
Brand Name :
SPR-ing
Model Number :
SP013018
Price :
200-800USD
Supply Ability :
1000/month
Delivery Time :
1 week
Maximum Current :
1A
Insulation Resistance :
200MΩ/250V/DC
Description
High Speed Data Transfer Capsule Slip Ring for Optical-Electronic Pods
SP013018 Long Life High Speed Slip Ring
This miniature high-speed long-life slip ring operates at 10,000 revolutions per minute with a lifespan of 10 million revolutions, delivering exceptional stability and performance. As one of our core technologies, this high-speed slip ring has been successfully deployed in large quantities for specific unit models and has undergone extensive user verification, confirming its reliable performance and extended service life.
Application Areas
Ideal for high-speed testing platforms including strain gauge signals, thermocouple signals, and similar applications. Commonly used in aircraft engine testing, high-speed rail component testing, and automotive wheel hub performance testing.
Technical Parameters
Electrical Specifications
Parameter Specification
Design Loop ≤18
Insulation Resistance 250MΩ/250V/DC
Rated Voltage/Current 80VDC /1A
Dielectric Strength >300VAC/50Hz/60s
Dynamic Resistance Change Value ≤20mΩ
Wire Length Standard 400mm (adjustable according to requirements)
Mechanical Specifications
Parameter Specification
Rated Speed 0-10,000 rpm
Working Life 10 million rpm
Operating Temperature -50℃ to 80℃
Operating Humidity ≤80%
Contact Material Gold-gold
Shell Material 304 Stainless Steel
Maximum Starting Torque 0.5N.cm
Outline Drawing
Capsule Mini Slip Ring High Speed Data Transfer Rotary Connector for Optical Electronic Pod Systems
Technical Advantages
  • Core Friction Pair Technology: Gold metal contact technology ensures ultra-long service life
  • Integrated Casting Process: Maintains concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror Processing Technology: Achieves contact surface smoothness of Ra0.02 for enhanced reliability
  • Precision Component Manufacturing: Dimensional tolerance < 0.01mm, axial displacement < 0.01mm
  • Advanced Brush Wire Modulation: Near-zero pressure brush design extends slip ring life by 1/3
  • High Speed Capability: Maximum speed of 8,000 rpm (with cooling system)
  • Extended Lifespan: Maximum operational life of up to 100 million revolutions
