Wind Turbine Mini Slip Ring High Reliability Rotary Connector for Power Generation Systems
Wind Turbine Mini Slip Ring High Reliability Rotary Connector for Power Generation Systems
Wind Turbine Mini Slip Ring High Reliability Rotary Connector for Power Generation Systems
Wind Turbine Mini Slip Ring High Reliability Rotary Connector for Power Generation Systems
Wind Turbine Mini Slip Ring High Reliability Rotary Connector for Power Generation Systems
Wind Turbine Mini Slip Ring High Reliability Rotary Connector for Power Generation Systems
Wind Turbine Mini Slip Ring High Reliability Rotary Connector for Power Generation Systems
Wind Turbine Mini Slip Ring High Reliability Rotary Connector for Power Generation Systems
Wind Turbine Mini Slip Ring High Reliability Rotary Connector for Power Generation Systems
Wind Turbine Mini Slip Ring High Reliability Rotary Connector for Power Generation Systems
Specifications
Working Life :
10 million circle
Payment Terms :
L/C,T/T
Insulation Resistance :
200MΩ/250V/DC
Shell Material :
304 stainless steel
MOQ :
1
Price :
200-800USD
Model Number :
SP013018
Supply Ability :
1000/month
Delivery Time :
1 week
Packaging Details :
Carton
Dynamic Resistance Change :
≤20mΩ
Maximum Current :
1A
Rotating Speed :
0-10000 rpm
Working Temperature :
-50℃ ~ 80℃
Brand Name :
SPR-ing
Design loop :
18
Place of Origin :
Shenzhen
Description

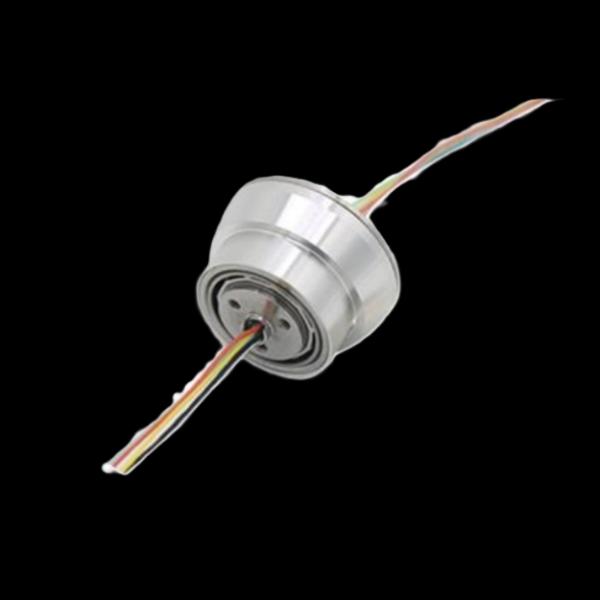

Wind Turbine Slip Ring High Reliability Rotary Connector for Power Generation

The SP013018 High Speed Slip Ring is engineered for precision rotating systems that require continuous electrical connection during high-speed rotation. With a rated speed of 10000 RPM, this slip ring delivers reliable signal transmission even in the most demanding industrial environments.

Featuring gold contact technology and precision component manufacturing, this slip ring ensures stable electrical performance and extended service life.

Application Areas

Designed for high-speed testing platform applications including strain gauge signals and thermocouple signals. Ideal for aircraft engine testing, high-speed rail component testing, and automotive wheel hub performance testing.

Technical Parameters
Electrical Specifications
Parameter Specification
Design Loop ≤18
Insulation Resistance 250MΩ/250V/DC
Rated Voltage/Current 80VDC /1A
Dielectric Strength >300VAC/50Hz/60s
Dynamic Resistance Change Value ≤20mΩ
Wire Length Standard 400mm (adjustable according to requirements)
Mechanical Specifications
Parameter Specification
Rated Speed 0-10000 rpm
Working Life 10 million rpm
Operating Temperature -50℃ ~ 80℃
Operating Humidity ≤80%
Contact Material Gold-gold
Shell Material 304 stainless steel
Maximum Starting Torque 0.5N.cm
Outline Drawing
Wind Turbine Mini Slip Ring High Reliability Rotary Connector for Power Generation Systems
Technical Advantages
  • Friction Pair Technology: Gold metal contact technology ensures ultra-long service life
  • Integrated Casting Process: Maintains concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror Processing Technology: Achieves contact surface smoothness of Ra0.02 for reliable contact
  • Precision Component Manufacturing: Dimensional tolerance <0.01mm, axial displacement <0.01mm for high precision and stable performance
  • Advanced Brush Wire Modulation: Near-zero pressure brush design extends slip ring life by 1/3
  • High Speed Capability: Maximum speed of 8000 RPM with cooling system
  • Extended Lifespan: Maximum operational life of up to 100 million revolutions
