10 Million Revolution Long Life Industrial Mini Slip Ring 8 Circuit Rotary Connector for Platforms
10 Million Revolution Long Life Industrial Mini Slip Ring 8 Circuit Rotary Connector for Platforms
10 Million Revolution Long Life Industrial Mini Slip Ring 8 Circuit Rotary Connector for Platforms
10 Million Revolution Long Life Industrial Mini Slip Ring 8 Circuit Rotary Connector for Platforms
10 Million Revolution Long Life Industrial Mini Slip Ring 8 Circuit Rotary Connector for Platforms
10 Million Revolution Long Life Industrial Mini Slip Ring 8 Circuit Rotary Connector for Platforms
10 Million Revolution Long Life Industrial Mini Slip Ring 8 Circuit Rotary Connector for Platforms
10 Million Revolution Long Life Industrial Mini Slip Ring 8 Circuit Rotary Connector for Platforms
10 Million Revolution Long Life Industrial Mini Slip Ring 8 Circuit Rotary Connector for Platforms
10 Million Revolution Long Life Industrial Mini Slip Ring 8 Circuit Rotary Connector for Platforms
10 Million Revolution Long Life Industrial Mini Slip Ring 8 Circuit Rotary Connector for Platforms
10 Million Revolution Long Life Industrial Mini Slip Ring 8 Circuit Rotary Connector for Platforms
Specifications
Brand Name :
SPR-ing
Model Number :
SP030008
Place of Origin :
Shenzhen
MOQ :
1
Price :
200-800USD
Payment Terms :
L/C,T/T
Supply Ability :
1000/month
Delivery Time :
1 week
Packaging Details :
Carton
Design loop :
8
Rated speed :
0-10000 rpm
Insulation resistance :
220MΩ/250V/DC
Current :
240VDC/1A
Service Life :
100M cycle
Cable Length :
200mm Standard (Adjustable per Customer Needs)
Description

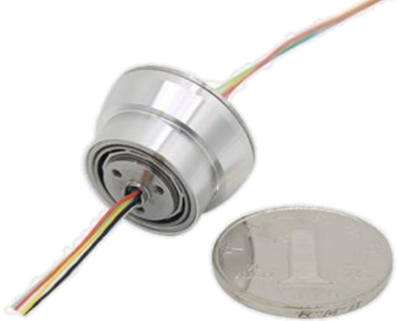

SP030008 Mini Slip Ring

The SP030008 mini slip ring is engineered for high-speed industrial applications requiring precise signal and power transmission. With 8 circuits, 1A per channel, and capability up to 10,000 RPM, it ensures stable data collection for strain gauges, thermocouples, and other sensitive sensors. The aluminum alloy shell and gold-gold contacts provide exceptional durability, low noise, and extended operational life.

Technical Specifications
Electrical Specifications
Parameter Specification
Design Loop 8
Insulation Resistance 220MΩ/250V/DC
Current 240VDC/1A
Dielectric Strength ≥300VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Wire Length Standard 200mm (adjustable according to requirements)
Mechanical Specifications
Parameter Specification
Rated Speed 0-10,000 RPM
Working Life 100 million cycles
Operating Temperature -40℃ to 80℃
Operating Humidity 0-80% RH
Contact Material Gold-gold
Shell Material Aluminum Alloy
Outline Drawing
10 Million Revolution Long Life Industrial Mini Slip Ring 8 Circuit Rotary Connector for Platforms
Applications
  • High-speed testing platforms for aircraft engines
  • Automotive wheel hub performance and drivetrain testing
  • High-speed rail component testing
  • Strain gauge and thermocouple signal acquisition
  • Robotics and UAV payloads
  • Laboratory and industrial precision measurement systems
Key Advantages
  • High-Speed Capability: Operates up to 10,000 RPM for demanding testing environments
  • Ultra-Long Life: Gold-gold contact with advanced friction pair technology ensures 100 million cycles
  • Precision Manufacturing: Mirror-polished contact surfaces, concentricity <0.01mm, dimensional tolerance <0.01mm
  • Compact and Lightweight: Small size meets tight installation requirements
  • Stable Signal Transmission: Low dynamic resistance ≤10mΩ ensures accurate measurements
  • Customizable: Wire length, circuit count, and other parameters can be tailored to specific requirements
