Specifications
Brand Name :
SPR-ing
Model Number :
SP030008
Place of Origin :
Shenzhen
MOQ :
1
Price :
200-800USD
Payment Terms :
L/C,T/T
Supply Ability :
1000/month
Delivery Time :
1 week
Packaging Details :
Carton
Design loop :
8
Insulation resistance :
220MΩ/250V/DC
Current :
240VDC/1A
Dielectric strength :
≥300VAC/50Hz/60s
Dynamic resistance change value :
≤10mΩ
Rated speed :
0-10000 rpm
Service Life :
100 million cycles
Operating Temp Range :
-40℃ ~ 80℃
Description
Custom Mini Electric Slip Ring Gold-Gold Contact for R&D Applications

SP030008 is a professional mini electric slip ring specifically designed for strain gauge and thermocouple signal transmission at high rotational speeds. With excellent electrical stability and low resistance variation, it ensures accurate data collection in rotating test systems.

Technical Specifications
Electrical Specifications
Design Loop 8
Insulation Resistance 220MΩ/250V/DC
Current 240VDC/1A
Dielectric Strength ≥300VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Wire Length Standard 200mm (adjustable according to requirements)
Mechanical Specifications
Rated Speed 0-10000 rpm
Working Life 100 million circle
Operating Temperature -40℃ ~ 80℃
Operating Humidity 0～80%RH
Contact Material Gold-gold
Shell Material Aluminum alloy

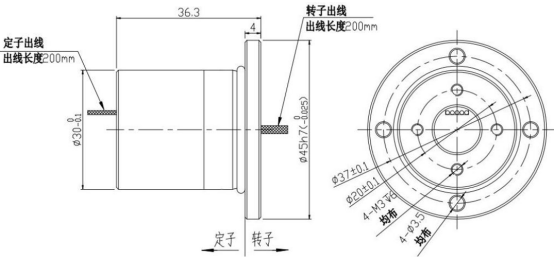

Outline Drawing
Custom Mini Electric Slip Ring Gold-Gold Contact Rotary Connector for R&D Applications
Applications
  • High-speed testing platforms for aircraft engines
  • Automotive wheel hub performance and drivetrain testing
  • High-speed rail component testing
  • Strain gauge and thermocouple signal acquisition
  • Robotics and UAV payloads
  • Laboratory and industrial precision measurement systems
Key Advantages
High-Speed Capability: Operates up to 10,000 RPM for demanding testing environments
Ultra-Long Life: Gold-gold contact with advanced friction pair technology ensures 100 million cycles
Precision Manufacturing: Mirror-polished contact surfaces, concentricity <0.01mm, dimensional tolerance <0.01mm
Compact and Lightweight: Small size meets tight installation requirements
Stable Signal Transmission: Low dynamic resistance ≤10mΩ ensures accurate measurements
Customizable: Wire length, circuit count, and other parameters can be tailored to specific requirements
