Specifications
Brand Name :
SPR-ing
Model Number :
SP035018-A
Place of Origin :
Shenzhen
MOQ :
1
Price :
200-800USD
Payment Terms :
L/C,T/T
Supply Ability :
1000/month
Delivery Time :
1 week
Packaging Details :
Carton
Dielectric Strength :
≥300VAC/50Hz/60s
Number Of Circuits :
18
Rated Speed :
5000 rpm
Durability :
50M Cycles
Housing Material :
Stainless steel
Temp :
-40℃ ~ 80℃
Current :
1A
Ip Rating :
IP61
Insulation Resistance :
250MΩ/250V/DC
Weight :
≤105g
Description

The SP035018-A terminal high-speed slip ring is designed for easy installation and long-term operation. Its lead-wire-free terminal design with color markings simplifies system integration and maintenance.

Supporting 18 circuits and speeds up to 5000 RPM, the slip ring delivers stable electrical performance with low dynamic resistance change. Gold-gold contacts ensure reliability during continuous rotation.

This model is commonly used in automation equipment, rotary tables, and industrial testing systems.


Technical parameters


Electrical specifications

Design loop

18

Insulation resistance

250MΩ/250V/DC

Current

1A

Dielectric strength

≥300VAC/50Hz/60s

Dynamic resistance change value

≤10mΩ

Mechanical specifications

Rated speed

5000 rpm

Working life

10 million circle

Operating temperature

-40℃ ~ 80℃

Operating humidity

0～80%RH

Contact material

Gold-gold

Shell material

Stainless steel

Maximum starting torque

0.5N.cm

Weight

≤105g

IP grade

Ip51

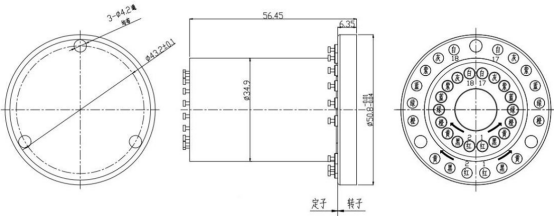

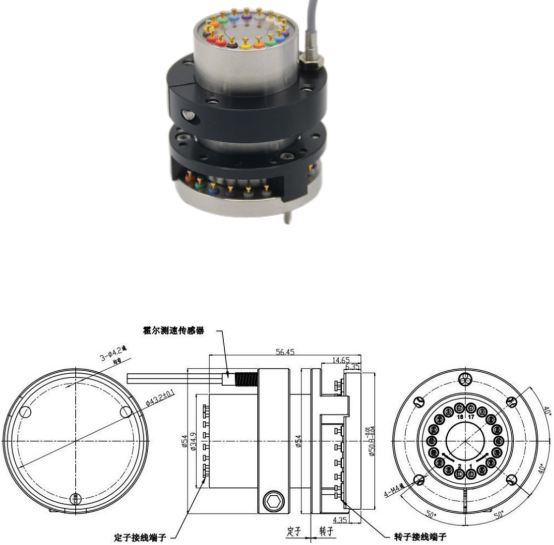

Outline Drawing


Professional Electrical Slip Ring Factory Long Life Design for Rotating System


Professional Electrical Slip Ring Factory Long Life Design for Rotating System


Technical advantages:

ü Slipring's core technology - friction pair technology: gold metal contact technology, ensuring an ultra long service life.

ü Integrated casting process: Ensure the concentricity between the ring groove and the bearing is ≤ 0.01mm.

ü Mirror processing technology: Ensure that the smoothness of the slip ring contact surface can reach Ra0.02, making the contact more reliable.

ü Precision component manufacturing process: dimensional tolerance<0.01mm, axial displacement<0.01mm, high precision, and more stable performance.

ü Advanced brush wire modulation technology: Nearly zero pressure brush design and debugging process, extending the life of the slip ring by 1/3.

ü Small in size and compact in structure, it can meet the space constraints of users.

ü Stainless steel structure: sturdy and durable, with strong sealing, suitable for extremely harsh environments.

ü Color code recognition interface: easy to install
