Compact Electric Slip Ring 8 Circuits 15000 RPM for Aerospace Testing OEM
Compact Electric Slip Ring 8 Circuits 15000 RPM for Aerospace Testing OEM
Compact Electric Slip Ring 8 Circuits 15000 RPM for Aerospace Testing OEM
Compact Electric Slip Ring 8 Circuits 15000 RPM for Aerospace Testing OEM
Compact Electric Slip Ring 8 Circuits 15000 RPM for Aerospace Testing OEM
Compact Electric Slip Ring 8 Circuits 15000 RPM for Aerospace Testing OEM
Compact Electric Slip Ring 8 Circuits 15000 RPM for Aerospace Testing OEM
Compact Electric Slip Ring 8 Circuits 15000 RPM for Aerospace Testing OEM
Compact Electric Slip Ring 8 Circuits 15000 RPM for Aerospace Testing OEM
Compact Electric Slip Ring 8 Circuits 15000 RPM for Aerospace Testing OEM
Specifications
Brand Name :
SPR-ing
Model Number :
SP056060-080-G15
Place of Origin :
Shenzhen
MOQ :
1
Price :
200-800USD
Payment Terms :
L/C,T/T
Supply Ability :
1000/month
Delivery Time :
1 week
Packaging Details :
Carton
Design loop :
60
Insulation resistance :
500MΩ/500V/DC
Rated voltage/current :
500VDC/1A
Dielectric strength :
≥500VAC/50Hz/60s
Dynamic resistance change value :
≤50mΩ
Rated speed :
>15000 rpm
Working life :
50 million circle
Operating temperature :
-10℃ ~35℃
Description

SP056060 slip ring offers ultra-high-speed operation over 15,000 RPM with 60 channels and gold-gold contacts. Durable aluminum housing ensures reliability in aerospace, industrial R&D, and rail transit applications, providing long life and minimal maintenance.


Technical parameters

Electrical specifications

Design loop

60

Insulation resistance

500MΩ/500V/DC

Rated voltage/current

500VDC/1A

Dielectric strength

≥500VAC/50Hz/60s

Dynamic resistance change value

≤50mΩ

Mechanical specifications

Rated speed

>15000 rpm

Working life

50 million circle

Operating temperature

-10℃ ~35℃

Contact material

Gold-gold

Shell material

Alluminum alloy

Humidity

20%～80%

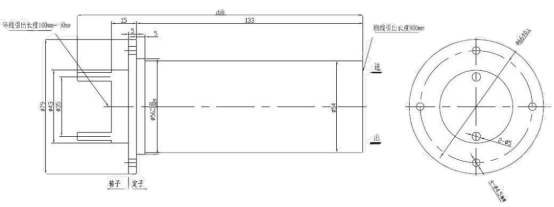

Outline Drawing

Compact Electric Slip Ring 8 Circuits 15000 RPM for Aerospace Testing OEM



Applications:

  • High-speed testing platforms for aircraft engines

  • Automotive wheel hub performance and drivetrain testing

  • High-speed rail component testing

  • Strain gauge and thermocouple signal acquisition

  • Robotics and UAV payloads

  • Laboratory and industrial precision measurement systems

Technical advantages:

ü Slipring's core technology - friction pair technology: gold metal contact technology, ensuring an ultra long service life.

ü Integrated casting process: Ensure the concentricity between the ring groove and the bearing is ≤ 0.01mm.

ü Mirror processing technology: Ensure that the smoothness of the slip ring contact surface can reach Ra0.02, making the contact more reliable.

ü Precision component manufacturing process: dimensional tolerance<0.01mm, high precision, and more stable performance.

ü Advanced brush wire modulation technology: Nearly zero pressure brush design and debugging process, extending the life of the slip ring by 1/3.

ü Small in size and compact in structure, it can meet the space constraints of users.

ü The slip ring adopts a solid aluminum alloy metal structure with strong sealing performance, suitable for extremely harsh environments.

ü High speed, this slip ring has been tested and verified to have a speed of up to 15000 revolutions per minute.

ü Long lifespan, customizable with a lifespan of 150 million revolutions per minute.
