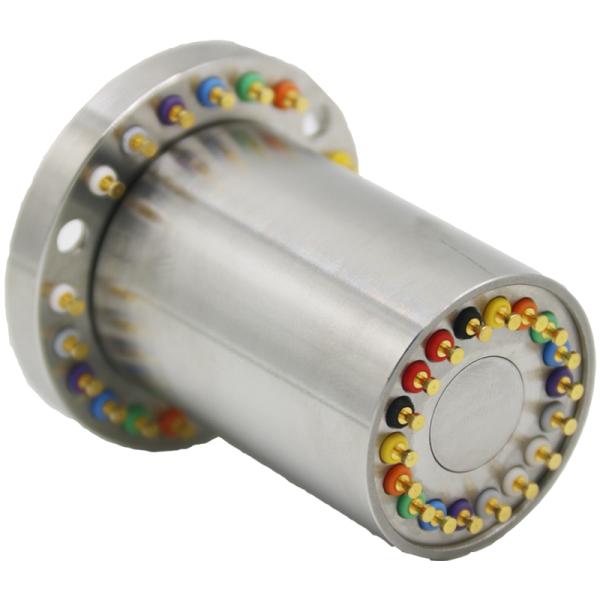

Cost Effective Mini Slip Ring Rotary Connector for CCTV Pan-Tilt Textile Machinery Applications
Cost Effective Mini Slip Ring Rotary Connector for CCTV Pan-Tilt Textile Machinery Applications
Cost Effective Mini Slip Ring Rotary Connector for CCTV Pan-Tilt Textile Machinery Applications
Cost Effective Mini Slip Ring Rotary Connector for CCTV Pan-Tilt Textile Machinery Applications
Cost Effective Mini Slip Ring Rotary Connector for CCTV Pan-Tilt Textile Machinery Applications
Cost Effective Mini Slip Ring Rotary Connector for CCTV Pan-Tilt Textile Machinery Applications
Cost Effective Mini Slip Ring Rotary Connector for CCTV Pan-Tilt Textile Machinery Applications
Cost Effective Mini Slip Ring Rotary Connector for CCTV Pan-Tilt Textile Machinery Applications
Specifications
Brand Name :
SPR-ing
Model Number :
SP025
Place of Origin :
Shenzhen
MOQ :
1 piece
Price :
200~800 USD
Payment Terms :
L/C,T/T
Supply Ability :
1000/month
Delivery Time :
1~3 weeks
Packaging Details :
Carton
Dielectric Strength :
>200VAC/50Hz/60s
Weight :
<60g (not include wire)
Contact Material :
Gold-gold
Wire Specification :
AF200-0.05mm²
Rated Current :
1 A
Designed Loop :
50, 40, 30, 20
Maximum Starting Torque :
1 N.cm
Shell Material :
303 Stainless Steel
Description
Cost-effective Slip Rings for Small-scale Applications
The Mini Slip Ring SP025 provides reliable electrical connections in compact spaces, ideal for CCTV pan-tilts, textile machinery, and other small-scale applications requiring continuous rotation.
Product Overview
This high-quality slip ring features gold-gold contacts for superior signal transmission and power delivery. Its compact design and robust construction make it perfect for applications demanding low electrical noise and high signal integrity.
Key Features
  • Gold-gold contact material for excellent conductivity and corrosion resistance
  • Rated current: 1A for moderate electrical loads
  • Insulation resistance: 200MΩ at 250V DC
  • Dielectric strength: >200VAC/50Hz for 60 seconds
  • Operating temperature range: -40℃ to 80℃
  • Compact and lightweight design (<60g excluding wires)
  • High-speed capability with working life up to 10 million rpm
Technical Specifications
Parameter Value
Product Name Mini Slip Ring SP025
Insulation Resistance 200MΩ/250V/DC
Wire Specification AF200-0.05mm²
Shell Material 303 Stainless Steel
Rated Current 1 A
Operating Humidity ≤80%
Contact Material Gold-gold
Rated Voltage 0-100VDC
Maximum Starting Torque 1 N.cm
Applications
The SP025 mini slip ring is designed for various industrial applications including:
  • Robotics and automation systems
  • Surveillance cameras and CCTV pan-tilt mechanisms
  • Textile machinery
  • Medical equipment
  • Any application requiring reliable electrical connections in rotating systems
Product Images
Cost Effective Mini Slip Ring Rotary Connector for CCTV Pan-Tilt Textile Machinery Applications
Cost Effective Mini Slip Ring Rotary Connector for CCTV Pan-Tilt Textile Machinery Applications
Cost Effective Mini Slip Ring Rotary Connector for CCTV Pan-Tilt Textile Machinery Applications
Cost Effective Mini Slip Ring Rotary Connector for CCTV Pan-Tilt Textile Machinery Applications
Ordering Information
Detail Information
Minimum Order Quantity 1 unit
Price Negotiable
Payment Terms L/C, T/T
Supply Ability 1000 units/month
Delivery Time 1 week
Packaging Cartons
Manufacturing Origin Jiujiang
Support & Services
Our technical support team provides comprehensive assistance with installation, operation, and troubleshooting. We also offer maintenance, repair, and customization services to meet your specific requirements.
Packaging & Shipping
Each Mini Slip Ring is securely packaged in compact boxes for safe transportation. Orders are processed and shipped within 1-2 business days, with various shipping options available.
Frequently Asked Questions
Q: What is the brand of this slip ring?
A: The product brand is "slip ring".
Q: What is the model number?
A: The model number is SP025.
Q: Where is this product manufactured?
A: It is manufactured in Jiujiang.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1 unit.
Q: What payment methods are accepted?
A: We accept L/C and T/T payments.
