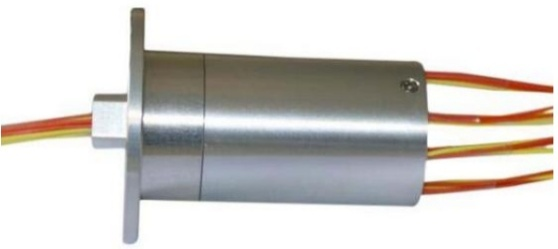

Miniature Mini Slip Ring 24 Circuit 2A Aluminum Housing High Density Rotary Connector for Semiconductor Wafer Robot
Miniature Mini Slip Ring 24 Circuit 2A Aluminum Housing High Density Rotary Connector for Semiconductor Wafer Robot
Miniature Mini Slip Ring 24 Circuit 2A Aluminum Housing High Density Rotary Connector for Semiconductor Wafer Robot
Miniature Mini Slip Ring 24 Circuit 2A Aluminum Housing High Density Rotary Connector for Semiconductor Wafer Robot
Miniature Mini Slip Ring 24 Circuit 2A Aluminum Housing High Density Rotary Connector for Semiconductor Wafer Robot
Miniature Mini Slip Ring 24 Circuit 2A Aluminum Housing High Density Rotary Connector for Semiconductor Wafer Robot
Miniature Mini Slip Ring 24 Circuit 2A Aluminum Housing High Density Rotary Connector for Semiconductor Wafer Robot
Miniature Mini Slip Ring 24 Circuit 2A Aluminum Housing High Density Rotary Connector for Semiconductor Wafer Robot
Miniature Mini Slip Ring 24 Circuit 2A Aluminum Housing High Density Rotary Connector for Semiconductor Wafer Robot
Miniature Mini Slip Ring 24 Circuit 2A Aluminum Housing High Density Rotary Connector for Semiconductor Wafer Robot
Specifications
Brand Name :
WNRLN
Delivery Time :
3-5 working days for stock, 15-25 days for production
Model Number :
MSR-24C-2A-AL
Rated Current :
2A per circuit
Rated Voltage :
240V AC/DC
Dielectric Strength :
≥500V AC at 50Hz
Lead Wire Length :
300mm (customizable)
Number of Circuits :
24
Insulation Resistance :
≥500MΩ at 500VDC
Bore Size :
Through-bore 12.7mm
Contact Material :
Gold to Gold
Housing Material :
Aluminum Alloy
Place of Origin :
Guangdong, China
Payment Terms :
T/T, L/C, PayPal, Western Union
Supply Ability :
3000 Pieces per Month
Price :
USD 35-140 / Piece
Seal Type :
Labyrinth seal
Operating Speed :
0-200 rpm
MOQ :
1 Piece
Operating Temperature :
-40°C to +80°C
Protection Grade :
IP54
Certification :
ISO 9001:2015, CE, RoHS
Packaging Details :
WNRLN branded cleanroom-grade packaging with anti-static foam insert, export-grade corrugated carton
Description

Miniature Slip Ring 24 Circuits 2A – Aluminum Housing High Density Rotary Connector

Product Overview

The WNRLN MSR-24C-2A-AL Miniature Slip Ring combines 24 high-density circuits with a robust aluminum alloy housing, engineered for semiconductor wafer handling robots operating in cleanroom environments. Gold-gold contacts on all 24 channels ensure ultra-reliable signal transmission for precision automation systems.

Key Features

  • 24 Circuit Aluminum Housing: High-density design in a durable metal body for industrial automation.
  • Gold-Gold Contact Technology: Premium contacts provide consistent performance in cleanroom conditions.
  • Semiconductor Cleanroom Compatible: Labyrinth seal minimizes particle generation for ISO Class 5 environments.
  • Low Outgassing Materials: Selected materials meet semiconductor industry contamination standards.

Technical Specifications

ParameterValue
Number of Circuits24
Rated Current2A per circuit
Rated Voltage240V AC/DC
Contact MaterialGold to Gold
Housing MaterialAluminum Alloy
Seal TypeLabyrinth seal
Operating Speed0-200 rpm
Protection GradeIP54

Applications

  • Wafer Handling Robots: Precision rotary joints in semiconductor fabrication.
  • Cleanroom Automation: Rotary positioning systems in controlled environments.
  • LCD Panel Handling: Rotating end-effectors in display manufacturing.

Quality Assurance

  • ISO 9001:2015 certified manufacturing facility
  • CE and RoHS compliant
  • 100% particle count verification and circuit testing
