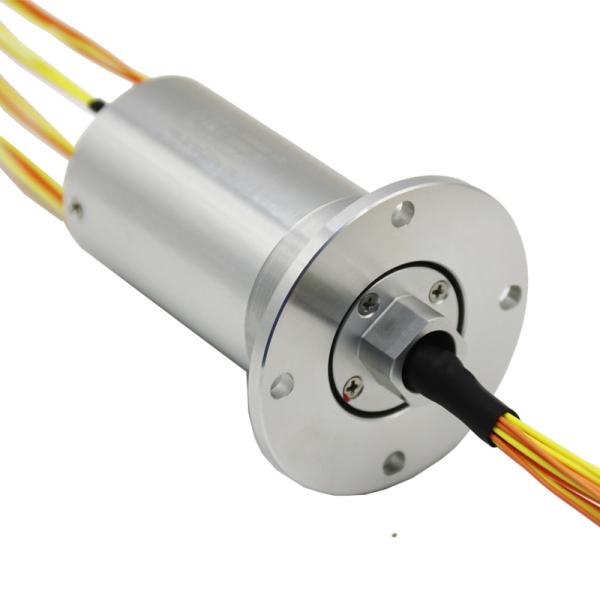

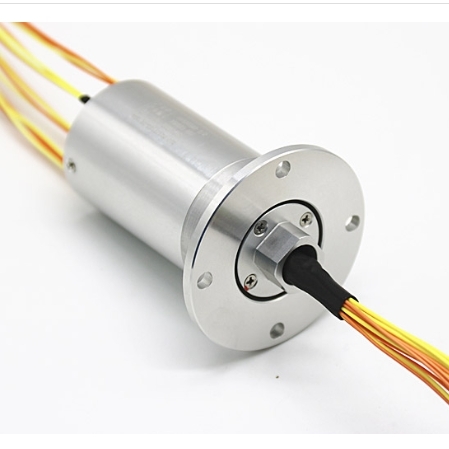

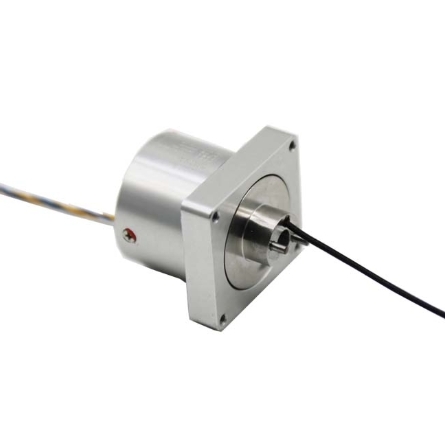

Miniature Mini Slip Ring 12 Circuit Hybrid Power Signal Rotary Connector for AGV Automated Guided Vehicle
Miniature Mini Slip Ring 12 Circuit Hybrid Power Signal Rotary Connector for AGV Automated Guided Vehicle
Miniature Mini Slip Ring 12 Circuit Hybrid Power Signal Rotary Connector for AGV Automated Guided Vehicle
Miniature Mini Slip Ring 12 Circuit Hybrid Power Signal Rotary Connector for AGV Automated Guided Vehicle
Miniature Mini Slip Ring 12 Circuit Hybrid Power Signal Rotary Connector for AGV Automated Guided Vehicle
Miniature Mini Slip Ring 12 Circuit Hybrid Power Signal Rotary Connector for AGV Automated Guided Vehicle
Specifications
Certification :
ISO 9001:2015, CE, RoHS
Rated Current :
5A power circuits, 2A signal circuits
Rated Voltage :
240V AC/DC
Supply Ability :
6000 Pieces per Month
Operating Speed :
0-250 rpm
Packaging Details :
WNRLN branded box with anti-static foam insert, export-grade corrugated carton
Operating Temperature :
-40°C to +80°C
Brand Name :
WNRLN
Place of Origin :
Guangdong, China
Contact Material :
Gold to Gold
Protection Grade :
IP54
Payment Terms :
T/T, L/C, PayPal, Western Union
Dielectric Strength :
≥1000V AC at 50Hz
Model Number :
MSR-12C-HYB
Delivery Time :
3-5 working days for stock, 15-25 days for production
Number of Circuits :
12 (4 Power + 8 Signal)
Price :
USD 22-90 / Piece
MOQ :
1 Piece
Insulation Resistance :
≥500MΩ at 500VDC
Housing Material :
Aluminum Alloy
Description

Miniature Slip Ring 12 Circuits Hybrid – Power & Signal Rotary Connector

Product Overview

The WNRLN MSR-12C-HYB Miniature Slip Ring features a hybrid circuit design with 4 dedicated power channels rated at 5A and 8 signal channels rated at 2A, all integrated in a single compact rotary connector. Engineered for AGV automated guided vehicles, this slip ring handles motor drive power and sensor feedback signals simultaneously with gold-gold contact reliability.

Key Features

  • Hybrid Power Signal Design: Separate power and signal channels in one unit eliminate the need for multiple connectors.
  • Gold-Gold Contact Technology: Premium contacts on all circuits ensure clean signal integrity alongside power delivery.
  • AGV Rotary Joint Solution: Purpose-designed for automated guided vehicle steering and lifting mechanisms.
  • Enhanced Isolation: 1000V dielectric strength with dedicated shielding between power and signal groups.

Technical Specifications

ParameterValue
Number of Circuits12 (4 Power + 8 Signal)
Rated Current5A power / 2A signal
Rated Voltage240V AC/DC
Dielectric Strength≥1000V AC at 50Hz
Contact MaterialGold to Gold
Housing MaterialAluminum Alloy
Operating Speed0-250 rpm
Protection GradeIP54

Applications

  • AGV Vehicles: Steering motor power and encoder feedback signal transmission.
  • Forklift Attachments: Rotating fork and clamp power with sensor integration.
  • Automated Warehousing: Rotary lift mechanisms with motor and sensor circuits.

Quality Assurance

  • ISO 9001:2015 certified manufacturing facility
  • CE and RoHS compliant
  • 100% power and signal circuit group testing on every unit
