Specifications
Certification :
ISO 9001:2015, CE, RoHS
Operating Temperature :
-40°C to +80°C
Protection Grade :
IP54
Payment Terms :
T/T, L/C, PayPal, Western Union
Packaging Details :
WNRLN branded box with anti-static foam insert, export-grade corrugated carton
Dielectric Strength :
≥500V AC at 50Hz
Brand Name :
WNRLN
Delivery Time :
3-5 working days for stock, 15-25 days for production
USB Support :
USB 2.0 (1 data pair)
MOQ :
1 Piece
Price :
USD 25-100 / Piece
Supply Ability :
5000 Pieces per Month
Number of Circuits :
12
Rated Current :
2A per circuit
Lead Wire Length :
300mm (customizable)
Rated Voltage :
240V AC/DC
Place of Origin :
Guangdong, China
Insulation Resistance :
≥500MΩ at 500VDC
Contact Material :
Gold to Gold
Housing Material :
Aluminum Alloy
Model Number :
MSR-12C-USB
Operating Speed :
0-200 rpm
Description

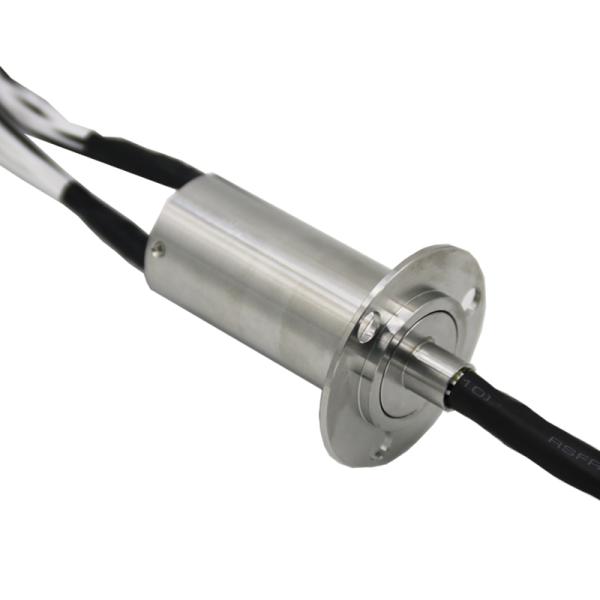

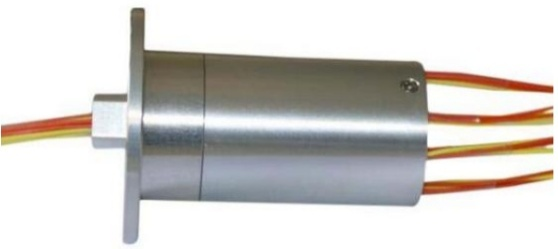

Miniature Slip Ring 12 Circuits USB 2.0 Compatible – Kiosk Rotary Connector

Product Overview

The WNRLN MSR-12C-USB Miniature Slip Ring integrates USB 2.0 data transmission capability with 12 total circuits, making it the ideal rotary connector for interactive kiosk touch screen systems. A dedicated impedance-controlled USB data pair with gold-gold contacts ensures reliable touch input and display signal transmission through continuous 360° rotation.

Key Features

  • USB 2.0 Signal Compatible: Dedicated impedance-controlled pair for reliable USB data transmission.
  • Gold-Gold Contact Technology: Premium contacts maintain signal integrity for touch and display data.
  • Interactive Kiosk Solution: Purpose-designed for rotating touch screen display systems.
  • Aluminum Alloy Housing: Robust construction for public-access kiosk environments.

Technical Specifications

ParameterValue
Number of Circuits12
Rated Current2A per circuit
Rated Voltage240V AC/DC
USB SupportUSB 2.0 (1 pair)
Dielectric Strength≥500V AC at 50Hz
Contact MaterialGold to Gold
Operating Speed0-200 rpm
Protection GradeIP54

Applications

  • Interactive Kiosks: Rotating touch screen displays in retail and information terminals.
  • Digital Signage: Rotating advertising display panels.
  • Museum Exhibits: Interactive rotating information displays.

Quality Assurance

  • ISO 9001:2015 certified manufacturing
  • CE and RoHS compliant
  • USB signal integrity testing under full rotation
