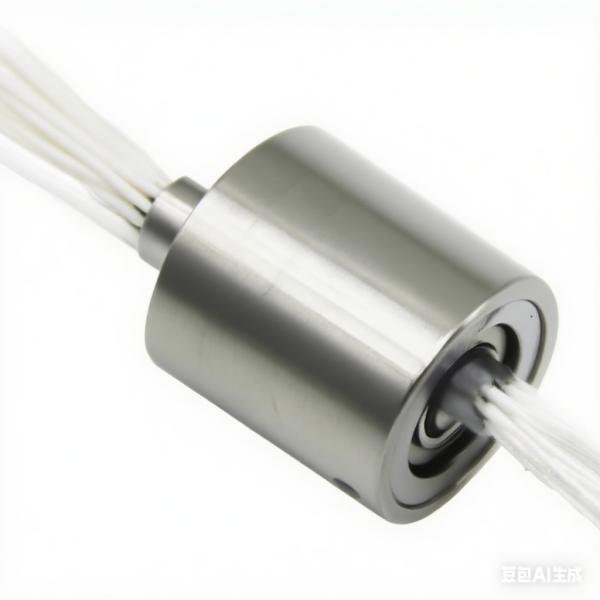

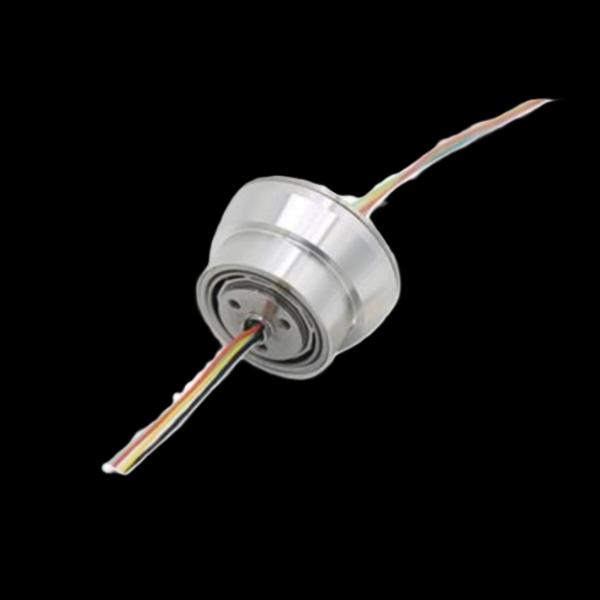

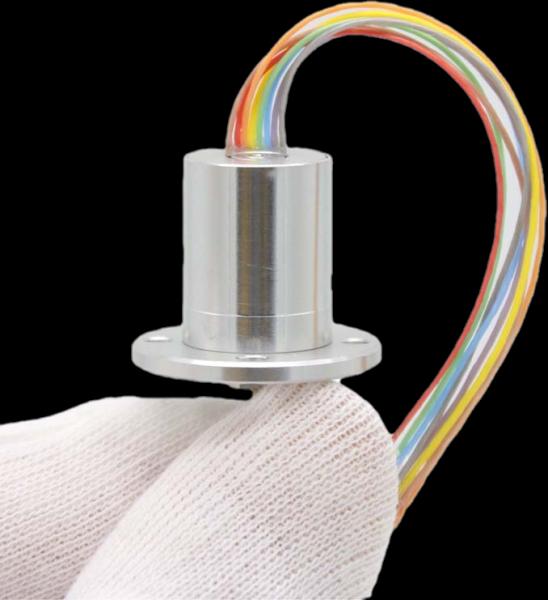

Miniature Mini Slip Ring 36 Circuit 2A Maximum Density Rotary Connector for Multi Axis CNC Machine
Miniature Mini Slip Ring 36 Circuit 2A Maximum Density Rotary Connector for Multi Axis CNC Machine
Miniature Mini Slip Ring 36 Circuit 2A Maximum Density Rotary Connector for Multi Axis CNC Machine
Miniature Mini Slip Ring 36 Circuit 2A Maximum Density Rotary Connector for Multi Axis CNC Machine
Miniature Mini Slip Ring 36 Circuit 2A Maximum Density Rotary Connector for Multi Axis CNC Machine
Miniature Mini Slip Ring 36 Circuit 2A Maximum Density Rotary Connector for Multi Axis CNC Machine
Specifications
Brand Name :
WNRLN
Operating Temperature :
-40°C to +80°C
Lead Wire Length :
300mm (customizable)
Dielectric Strength :
≥500V AC at 50Hz
Place of Origin :
Guangdong, China
Protection Grade :
IP54
Delivery Time :
3-5 working days for stock, 15-25 days for production
Bore Size :
Through-bore 12.7mm
Packaging Details :
WNRLN branded box with anti-static foam insert, export-grade corrugated carton
Housing Material :
Aluminum Alloy
MOQ :
1 Piece
Rated Current :
2A per circuit
Insulation Resistance :
≥500MΩ at 500VDC
Contact Material :
Gold to Gold
Operating Speed :
0-200 rpm
Supply Ability :
3000 Pieces per Month
Rated Voltage :
240V AC/DC
Number of Circuits :
36
Model Number :
MSR-36C-2A
Certification :
ISO 9001:2015, CE, RoHS
Price :
USD 40-150 / Piece
Payment Terms :
T/T, L/C, PayPal, Western Union
Description

Miniature Slip Ring 36 Circuits 2A – Maximum Density Rotary Connector

Product Overview

The WNRLN MSR-36C-2A Miniature Slip Ring represents the pinnacle of circuit density with 36 independent 2A channels in a single compact rotary connector. Engineered for multi-axis CNC machine tool applications, this slip ring handles complex sensor arrays, actuator controls and feedback signals with gold-gold contact reliability across every circuit.

Key Features

  • 36 Circuit Max Density: Industry-leading 36 circuits for the most demanding signal routing requirements.
  • Gold-Gold Contact Technology: Premium gold contacts on all 36 channels for consistent low-resistance connections.
  • Multi Axis CNC Compatible: Supports complex machine tool rotary axis with full sensor integration.
  • Aluminum Alloy Housing: Robust housing with precision machining for stable multi-channel operation.

Technical Specifications

ParameterValue
Number of Circuits36
Rated Current2A per circuit
Rated Voltage240V AC/DC
Dielectric Strength≥500V AC at 50Hz
Contact MaterialGold to Gold
Housing MaterialAluminum Alloy
Operating Speed0-200 rpm
Protection GradeIP54
Lead Wire Length300mm (customizable)

Applications

  • CNC Machine Tools: Multi-axis rotary tables with full sensor and actuator integration.
  • Automated Inspection: Multi-sensor rotary scanning and measurement systems.
  • Semiconductor Equipment: Wafer handling robots with extensive signal requirements.

Quality Assurance

  • ISO 9001:2015 certified manufacturing facility
  • CE and RoHS compliant
  • 100% 36-channel continuity and insulation testing before shipment
