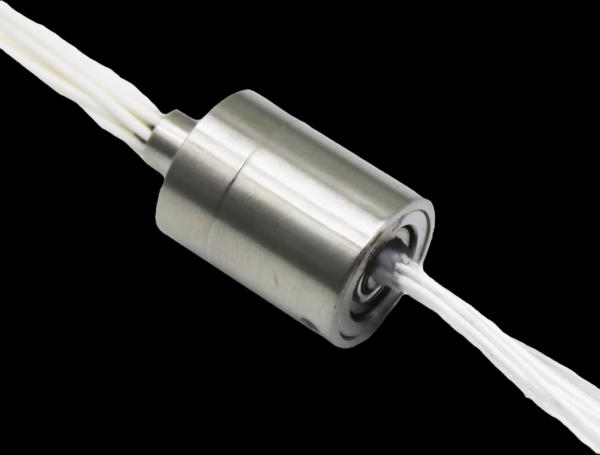

Miniature Mini Slip Ring 12 Circuit 2A Modular Separate Rotor Stator Connector for Custom Integration
Miniature Mini Slip Ring 12 Circuit 2A Modular Separate Rotor Stator Connector for Custom Integration
Miniature Mini Slip Ring 12 Circuit 2A Modular Separate Rotor Stator Connector for Custom Integration
Miniature Mini Slip Ring 12 Circuit 2A Modular Separate Rotor Stator Connector for Custom Integration
Miniature Mini Slip Ring 12 Circuit 2A Modular Separate Rotor Stator Connector for Custom Integration
Miniature Mini Slip Ring 12 Circuit 2A Modular Separate Rotor Stator Connector for Custom Integration
Miniature Mini Slip Ring 12 Circuit 2A Modular Separate Rotor Stator Connector for Custom Integration
Miniature Mini Slip Ring 12 Circuit 2A Modular Separate Rotor Stator Connector for Custom Integration
Miniature Mini Slip Ring 12 Circuit 2A Modular Separate Rotor Stator Connector for Custom Integration
Miniature Mini Slip Ring 12 Circuit 2A Modular Separate Rotor Stator Connector for Custom Integration
Miniature Mini Slip Ring 12 Circuit 2A Modular Separate Rotor Stator Connector for Custom Integration
Miniature Mini Slip Ring 12 Circuit 2A Modular Separate Rotor Stator Connector for Custom Integration
Specifications
Rated Current :
2A per circuit
Housing Material :
Engineering Plastic (POM)
Brand Name :
WNRLN
Place of Origin :
Guangdong, China
Payment Terms :
T/T, L/C, PayPal, Western Union
Design Type :
Separate Rotor and Stator
Insulation Resistance :
≥500MΩ at 500VDC
Lead Wire Length :
300mm both sides (customizable)
Operating Temperature :
-40°C to +80°C
MOQ :
1 Piece
Model Number :
MSR-12C-2A-MOD
Certification :
ISO 9001:2015, CE, RoHS
Price :
USD 20-90 / Piece
Delivery Time :
3-5 working days for stock, 15-25 days for production
Packaging Details :
WNRLN branded box with anti-static foam insert for rotor and stator, export-grade corrugated carton
Rated Voltage :
240V AC/DC
Dielectric Strength :
≥500V AC at 50Hz
Supply Ability :
5000 Pieces per Month
Number of Circuits :
12
Contact Material :
Gold to Gold
Operating Speed :
0-300 rpm
Protection Grade :
IP54
Description

Miniature Slip Ring 12 Circuits 2A – Modular Separate Rotor Stator Rotary Connector

Product Overview

The WNRLN MSR-12C-2A-MOD Miniature Slip Ring features a unique modular design with separate rotor and stator assemblies, providing maximum installation flexibility for custom OEM equipment integration. Twelve independent 2A circuits with gold-gold contacts allow designers to mount the rotor and stator independently to suit unique machine geometries.

Key Features

  • Modular Separate Design: Independent rotor and stator assemblies for flexible machine integration.
  • Gold-Gold Contact Technology: Premium contacts ensure reliable electrical connection in any mounting orientation.
  • Flexible OEM Integration: Ideal for custom equipment where standard form factors cannot be used.
  • Easy Assembly: Simple snap-fit mechanism reduces installation time during production.

Technical Specifications

ParameterValue
Number of Circuits12
Rated Current2A per circuit
Rated Voltage240V AC/DC
Design TypeSeparate Rotor and Stator
Contact MaterialGold to Gold
Housing MaterialEngineering Plastic (POM)
Operating Speed0-300 rpm
Protection GradeIP54
Lead Wire Length300mm both sides

Applications

  • Custom OEM Equipment: Unique machine designs requiring non-standard slip ring configurations.
  • Prototype Development: Flexible integration for R&D and proof-of-concept builds.
  • Retrofit Projects: Adding rotary connections to existing equipment with space constraints.

Quality Assurance

  • ISO 9001:2015 certified manufacturing
  • CE and RoHS compliant
  • 100% assembly-fit and continuity testing
