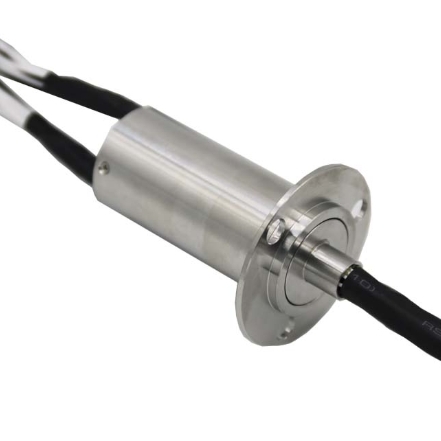

12 Circuit Miniature Mini Slip Ring 2A High Speed 500 RPM Rotary Connector for Test Bench Equipment
12 Circuit Miniature Mini Slip Ring 2A High Speed 500 RPM Rotary Connector for Test Bench Equipment
12 Circuit Miniature Mini Slip Ring 2A High Speed 500 RPM Rotary Connector for Test Bench Equipment
12 Circuit Miniature Mini Slip Ring 2A High Speed 500 RPM Rotary Connector for Test Bench Equipment
12 Circuit Miniature Mini Slip Ring 2A High Speed 500 RPM Rotary Connector for Test Bench Equipment
12 Circuit Miniature Mini Slip Ring 2A High Speed 500 RPM Rotary Connector for Test Bench Equipment
Specifications
Brand Name :
WNRLN
Operating Speed :
0-500 rpm
Place of Origin :
Guangdong, China
Price :
USD 30-120 / Piece
Number of Circuits :
12
Rated Current :
2A per circuit
Insulation Resistance :
≥500MΩ at 500VDC
Protection Grade :
IP54
Operating Temperature :
-40°C to +80°C
Packaging Details :
WNRLN branded box with anti-static foam insert, export-grade corrugated carton
Certification :
ISO 9001:2015, CE, RoHS
Payment Terms :
T/T, L/C, PayPal, Western Union
Bearing Type :
Precision Ball Bearing
Model Number :
MSR-12C-2A-HS
Supply Ability :
5000 Pieces per Month
Rated Voltage :
240V AC/DC
Lead Wire Length :
300mm (customizable)
MOQ :
1 Piece
Dielectric Strength :
≥500V AC at 50Hz
Housing Material :
Engineering Plastic (POM)
Delivery Time :
3-5 working days for stock, 15-25 days for production
Contact Material :
Gold to Gold
Description

Miniature Slip Ring 12 Circuits 2A – High Speed 500rpm Rotary Connector

Product Overview

The WNRLN MSR-12C-2A-HS Miniature Slip Ring is engineered for high-speed applications up to 500 rpm, combining a precision ball bearing system with gold-gold contacts for stable 2A transmission. Ideal for test bench equipment, dynamometers and rotary measurement systems requiring reliable electrical connections at elevated rotation speeds.

Key Features

  • High Speed 500rpm Rating: Maintains stable electrical performance at continuous speeds up to 500 rpm.
  • Gold-Gold Contact Technology: Premium contacts minimize speed-related resistance variation.
  • Precision Bearing System: Low-runout ball bearings ensure smooth high-speed rotation.
  • Low Vibration Design: Balanced rotor assembly minimizes vibration at maximum rated speed.

Technical Specifications

ParameterValue
Number of Circuits12
Rated Current2A per circuit
Rated Voltage240V AC/DC
Dielectric Strength≥500V AC at 50Hz
Contact MaterialGold to Gold
Operating Speed0-500 rpm
Protection GradeIP54
Lead Wire Length300mm (customizable)

Applications

  • Test Benches: Rotary dynamometer and torque measurement systems.
  • Centrifuges: Laboratory and industrial centrifuge power transmission.
  • High-Speed Cameras: 360° rotating camera platforms.

Quality Assurance

  • ISO 9001:2015 certified manufacturing
  • CE and RoHS compliant
  • 100% rated-speed dynamic testing on every unit
