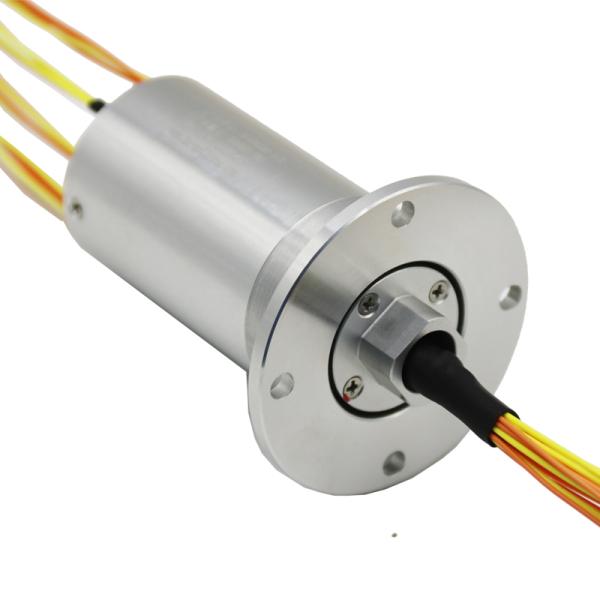

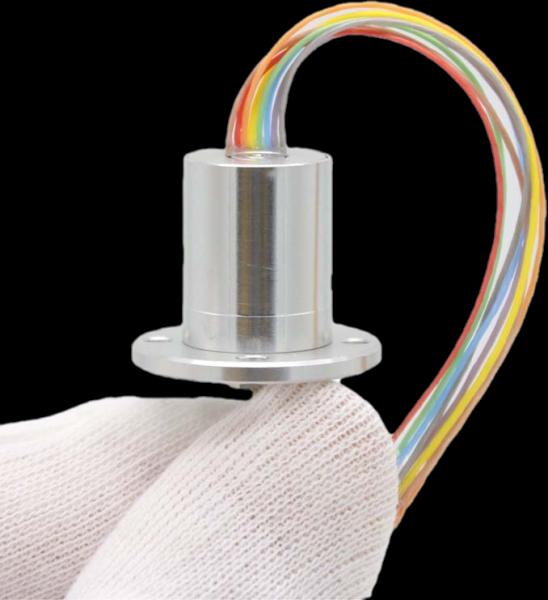

Miniature Mini Slip Ring 12 Circuit 2A Through Bore 25.4mm Rotary Connector for Automated Assembly Line
Miniature Mini Slip Ring 12 Circuit 2A Through Bore 25.4mm Rotary Connector for Automated Assembly Line
Miniature Mini Slip Ring 12 Circuit 2A Through Bore 25.4mm Rotary Connector for Automated Assembly Line
Miniature Mini Slip Ring 12 Circuit 2A Through Bore 25.4mm Rotary Connector for Automated Assembly Line
Miniature Mini Slip Ring 12 Circuit 2A Through Bore 25.4mm Rotary Connector for Automated Assembly Line
Miniature Mini Slip Ring 12 Circuit 2A Through Bore 25.4mm Rotary Connector for Automated Assembly Line
Specifications
Brand Name :
WNRLN
Price :
USD 22-95 / Piece
Insulation Resistance :
≥500MΩ at 500VDC
Packaging Details :
WNRLN branded box with anti-static foam insert, export-grade corrugated carton
Place of Origin :
Guangdong, China
Supply Ability :
6000 Pieces per Month
Operating Temperature :
-40°C to +80°C
Rated Voltage :
240V AC/DC
Lead Wire Length :
300mm (customizable)
MOQ :
1 Piece
Rated Current :
2A per circuit
Bore Size :
Through-bore 25.4mm
Housing Material :
Aluminum Alloy
Operating Speed :
0-250 rpm
Certification :
ISO 9001:2015, CE, RoHS
Delivery Time :
3-5 working days for stock, 15-20 days for production
Number of Circuits :
12
Dielectric Strength :
≥500V AC at 50Hz
Protection Grade :
IP54
Model Number :
MSR-12C-2A-TB25
Payment Terms :
T/T, L/C, PayPal, Western Union
Contact Material :
Gold to Gold
Description

Miniature Slip Ring 12 Circuits 2A – 25.4mm Through Bore Rotary Connector

Product Overview

The WNRLN MSR-12C-2A-TB25 Miniature Slip Ring features a generous 25.4mm through-bore that accommodates shafts, pneumatic lines or fiber optic cables passing through the center of the rotating assembly. Twelve independent 2A circuits with gold-gold contacts support automated assembly line rotary table applications.

Key Features

  • 25.4mm Through Bore Design: Large center opening for shaft mounting and utility pass-through.
  • Gold-Gold Contact Technology: Premium contacts maintain signal quality throughout the rotation cycle.
  • Hollow Shaft Compatibility: Designed for direct mounting on rotating shafts up to 25mm diameter.
  • Aluminum Alloy Housing: Robust metal body provides structural integrity for industrial mounting.

Technical Specifications

ParameterValue
Number of Circuits12
Rated Current2A per circuit
Rated Voltage240V AC/DC
Dielectric Strength≥500V AC at 50Hz
Contact MaterialGold to Gold
Housing MaterialAluminum Alloy
Operating Speed0-250 rpm
Protection GradeIP54
Lead Wire Length300mm (customizable)
Bore SizeThrough-bore 25.4mm

Applications

  • Automated Assembly Lines: Rotary index tables with center shaft mounting.
  • Welding Positioners: Rotary welding fixtures with gas line pass-through.
  • Material Handling: Rotary carousel systems with central pneumatic supply.

Quality Assurance

  • ISO 9001:2015 certified manufacturing
  • CE and RoHS compliant
  • 100% circuit testing under full rotation
