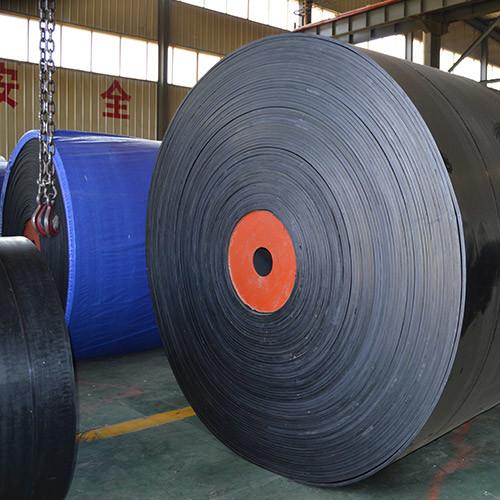

Anti Shock Low Elongation Cotton Canvas Conveyor Belt
Anti Shock Low Elongation Cotton Canvas Conveyor Belt
Specifications
Description

Cotton Conveyor Belt

Cotton canvas is woven by cotton fibers both in warp and in weft. Its elongation is relatively low, it is good in mechanical fastening and adhesion with rubber.

Cotton conveyor belts has relatively little deformation under high temperature, suitable for short distance and light load transportation. Polyester cotton conveyor belt is the upgraded product of cotton conveyor belt.

Features

1. Low elongation, Good mechanical fastening
2. Good adhesion with rubber
3. Little deformation under high temperature
4. Thinner and lighter of belt body
5. Better anti-shock to reduce energy and material consumption

Anti Shock Low Elongation Cotton Canvas Conveyor Belt


Standards

GB/T7984-2001, DIN22102,BS490, AS1332, RMA,JISK6322, SABS1173 etc.

Characteristic and Grades

Standards Cover Rubber Adhesion
Tensile
Strength		 Elongation
at break		 Abrasion Cover to Ply Ply to Ply Ply to Ply
DIN22102 Mpa % mm3 N/mm N/mm N/mm
DIN 22102-Z 15 350 250 5 6 5
DIN 22102-W 18 400 90 5 6 5
DIN 22102-Y 20 400 150 5 6 5
DIN 22102-X 25 450 120 5 6 5

Standards Cover Rubber Adhesion
Tensile
Strength		 Elongation
at break		 Abrasion Cover to Ply Ply to Ply Ply to Ply
RMA Mpa % mm3 N/mm N/mm N/mm
RMA1 17 400 120 4.5 6 4.5
RMA2 14 350 150 4.5 6 4.5

Standards Cover Rubber Adhesion
Tensile
Strength		 Elongation
at break		 Abrasion Cover to Ply Ply to Ply Ply to Ply
AS1332 Mpa % mm3 N/mm N/mm N/mm
AS1332-N17 17 400 200 4.5 6 4.5
AS1332-M24 24 450 125 4.5 6 4.5
