High Rigidity 3kw 5.5kw Belt Conveyor Tripper
High Rigidity 3kw 5.5kw Belt Conveyor Tripper
Specifications
Description

Tripper

Introduction

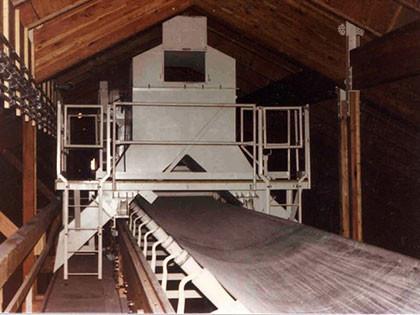

Belt conveyor trippers are used to unload the material from the belt conveyor at specified location. The belt conveyor tripper is consist of a structure with wheels and pulley assemblies. The wheels can be move along the guide rail on the belt conveyor. The belt conveyor tripper can either be in a fixed position, or travel continuously on the guide rail at a constant speed.

Advantages and Features
1. Several powered drive options and chute configurations are available.
2. Heavy duty structural frames and supports to provide system rigidity.
3. Heavy duty inlet skirting to eliminate spillage at discharge transition.
4. Abrasion resistant belting to reduce wear and increase life span.
5. Heavy duty idlers with anti-friction bearings to increase idler life and reduce horsepower.
6. High torque drive units to power through upset conditions.
7. Able be fitted to any new or existing conveyor.
8. Single and dual side discharge designs
9. Evenly distribution of materials and storage space saving
10. Engineered to meet new project requirements and also to retrofit existing conveyors.

Technical data:

Belt Width (mm) Track Model (kg) Walking Speed (m/min) Power (kW) Incremental Length (m) Max. Pressure (kN) Weight (kg)
500 15 15.6 3 3 8 2150
650 3.2 11 2460
800 3.5 13 2890
1000 22 18 5.5 3.5 15 4150
1200 4.8 18 5320
1400 5.8 24 6410
