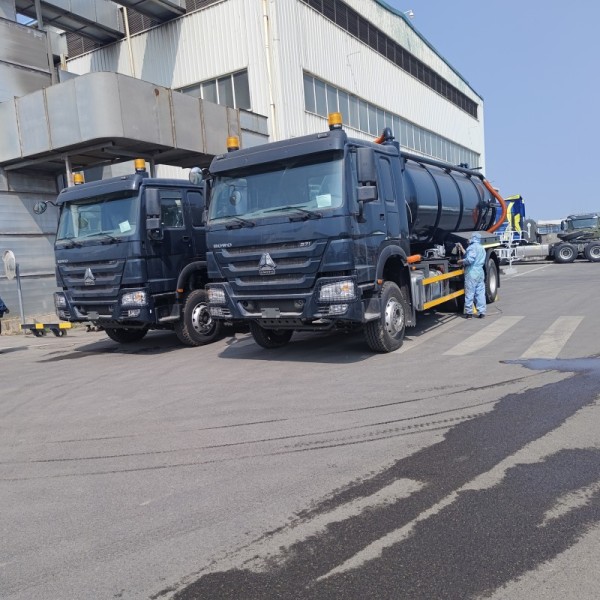

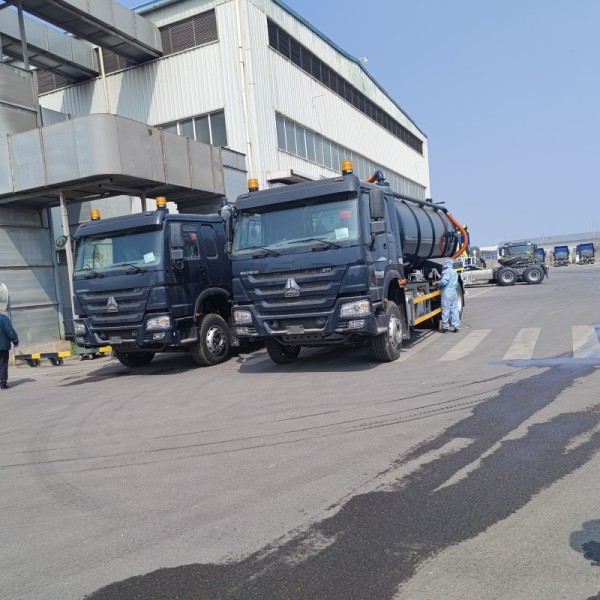

HOWO 15CBM Vacuum Sewage Suction Truck with 6×4 Drive Type and Hydraulic Tipping Discharge for Septic Tank Cleaning
HOWO 15CBM Vacuum Sewage Suction Truck with 6×4 Drive Type and Hydraulic Tipping Discharge for Septic Tank Cleaning
HOWO 15CBM Vacuum Sewage Suction Truck with 6×4 Drive Type and Hydraulic Tipping Discharge for Septic Tank Cleaning
HOWO 15CBM Vacuum Sewage Suction Truck with 6×4 Drive Type and Hydraulic Tipping Discharge for Septic Tank Cleaning
HOWO 15CBM Vacuum Sewage Suction Truck with 6×4 Drive Type and Hydraulic Tipping Discharge for Septic Tank Cleaning
HOWO 15CBM Vacuum Sewage Suction Truck with 6×4 Drive Type and Hydraulic Tipping Discharge for Septic Tank Cleaning
HOWO 15CBM Vacuum Sewage Suction Truck with 6×4 Drive Type and Hydraulic Tipping Discharge for Septic Tank Cleaning
HOWO 15CBM Vacuum Sewage Suction Truck with 6×4 Drive Type and Hydraulic Tipping Discharge for Septic Tank Cleaning
Specifications
Certification :
ISO
Fuel :
Diesel
Supply Ability :
300 units/mouth
Payment Terms :
L/C,T/T
Brand Name :
HOWO
Model Number :
HOWO-7
Price :
Negotiate
Condition :
New
Tank Volume :
15000L
Hoesrpower :
251-350hp
Delivery Time :
40 worker days
Product name :
6*4 HOWO 15CBM sewage suction truck
Drive Wheel :
6*4
Packaging Details :
nude
Place of Origin :
CHINA
Trademark :
Evangel
MOQ :
1 unit
Specification :
10010*2500*3150mm
Description
HOWO 15CBM Vacuum Sewage Suction Truck for Ghana Septic Tank Cleaning Drainage Maintenance and Sludge Transport Work
Product Overview

Product Name: HOWO 15CBM Vacuum Sewage Suction Truck

Vehicle Type: Vacuum Tanker / Septic Tank Cleaning Truck

Application: Septic tank cleaning, municipal drainage maintenance, construction sludge removal, industrial liquid waste transport

Chassis Specifications
  • Brand: SINOTRUK HOWO
  • Drive Type: 4×2 / 6×4 (6×4 recommended for Ghana projects)
  • Cabin: HW76 with A/C
  • Engine: WD615 / WP10
  • Horsepower: 266HP / 290HP / 336HP
  • Fuel Type: Diesel
  • Emission: Euro II (suitable for Ghana diesel)
  • Gearbox: 10 forward + 2 reverse
  • Fuel Tank: 300L
Dimensions & Capacity
  • Overall Size: approx. 8500 × 2500 × 3200 mm
  • Wheelbase: 4600 / 5600 mm
  • Tank Capacity: 15CBM (15,000 liters)
  • GVW: 18-25 tons
  • Payload: 12-15 tons
Tank System
  • Material: Q235 carbon steel
  • Thickness: 6mm body + 8mm head
  • Structure: Cylindrical with reinforcement rings
  • Rear Door: Hydraulic full opening
  • Sealing: Double leak-proof sealing
  • Anti-Corrosion: Internal coating (epoxy optional)
Vacuum System
  • Pump Type: Water circulation vacuum pump
  • Optional: Italian pump
  • Max Vacuum: ≥ -0.09 MPa
  • Air Flow: ≥ 300 m³/h
  • Suction Depth: ≥ 7 meters
  • Full Tank Time: ≤ 5 minutes
  • Drive Mode: PTO driven
Pipeline & Filtration
  • Hose Diameter: 100-150 mm
  • Hose Length: 6-8 meters
  • Filter System: Double filtration
  • Separators: Oil-gas + water-gas separator
  • Design: Anti-blocking pipeline
Discharge System

Hydraulic tipping discharge

Pressure discharge via pump

Dumping angle ≥ 45°

Hydraulic & PTO
  • Hydraulic Pressure: 16-20 MPa
  • Oil Tank: 120-150 L
  • Lifting Time: ≤ 60 seconds
  • PTO: Stable for long-time operation
Axle & Suspension
  • Front Axle: 7-9 tons
  • Rear Axle: 13-16 tons
  • Suspension: Reinforced leaf spring
  • Chassis: Heavy-duty frame
Tyres
  • Type: 12.00R20 / 315/80R22.5
  • Condition: Suitable for mixed roads
Performance
  • Working Time: ≥ 8 hours/day
  • Efficiency: ≥ 95% suction rate
  • Daily Work: 8-12 tanks
  • Fuel Consumption: 18-25L/100km
Safety System
  • Anti-overflow protection
  • Pressure safety valve
  • Emergency pressure release
  • Anti-backflow system
Adaptability for Ghana
  • Works under high temperature and humidity
  • Suitable for urban + construction environments
  • Compatible with local fuel quality
  • Easy maintenance with local technicians
  • HOWO parts available in Ghana market
Optional Configurations
  • Italian vacuum pump
  • Stainless steel tank
  • Hose reel system
  • Remote control
  • Double pump system
  • High-pressure jetting system (2-in-1)
Packaging & Delivery
  • Production: 25-35 days
  • Shipping: 30-45 days to Tema
  • Transport: RORO / Bulk / Container
Frequently Asked Questions
Is this truck suitable for Ghana roads?
Yes, especially the 6×4 model for rough and construction roads.
Can it handle thick sludge and sand?
Yes, it is designed for heavy sludge common in Ghana.
How deep can it work?
Around 7 meters, suitable for most septic tanks.
Is maintenance difficult?
No, simple structure, local mechanics can repair it.
Are spare parts available?
Yes, HOWO parts are widely available in Ghana.
How many jobs per day?
8-12 tanks depending on distance.
Can it work long hours?
Yes, designed for daily continuous operation.
Delivery time?
25-35 days production + shipping time.
